  6. Precision Kinematic Clear edge Mirror Mount With 2 Adjustable
  7. 2 inch



Specifications
 • Optics Diameter : Ø 50.8mm
 • Adjuster Thread : 100TPI(0.25mm)/127TPI(0.2mm)
 • Angular Range : ±3°
 • Resolution : 0.3° per Revolution
 • Adjustments Axis : θxθy
Drawings



Precision Kinematic Clear edge Mirror Mount With 2 Adjustable

TNC-2-series

stability Clear-Edge 100TPI 127TPI

• In addition to the common tension-type spring structure, the TNC-series mirror mount also incorporates a disc-type spring structure. The advantages of the disc-type spring with its smaller spring constant and larger spring force enable the mount to support heavier optical components. To avoid the instability caused by the misalignment of disc-type springs, we have improved the structure of the disc-type spring to prevent such situations. The 100-degree notched design of the lens placement plate prevents potential obstructions during optical path adjustment.


• The mount can be combined with other mechanical structures using either M4-headed screws or M6 set screws.

Part Number/Description Delivery Price Qty. Add to Cart

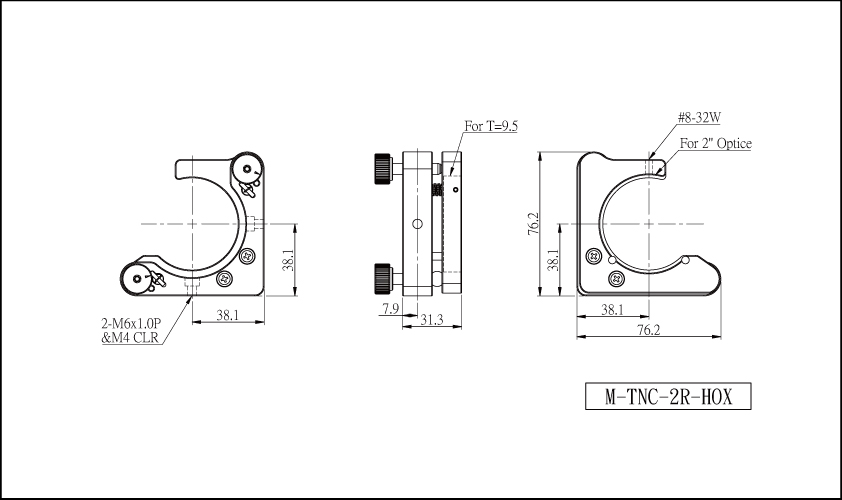

M-TNC-2R-HOX

Ø 2.0"/100TPI Screw/Right-Hand/knob
In stock
US$119.00

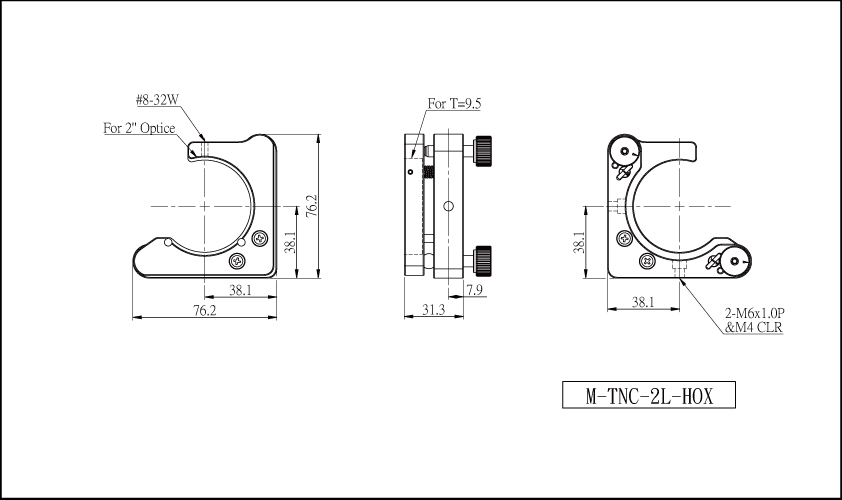

M-TNC-2L-HOX

Ø 2.0"/100TPI Screw/Left-Hand/knob
In Stock
US$119.00

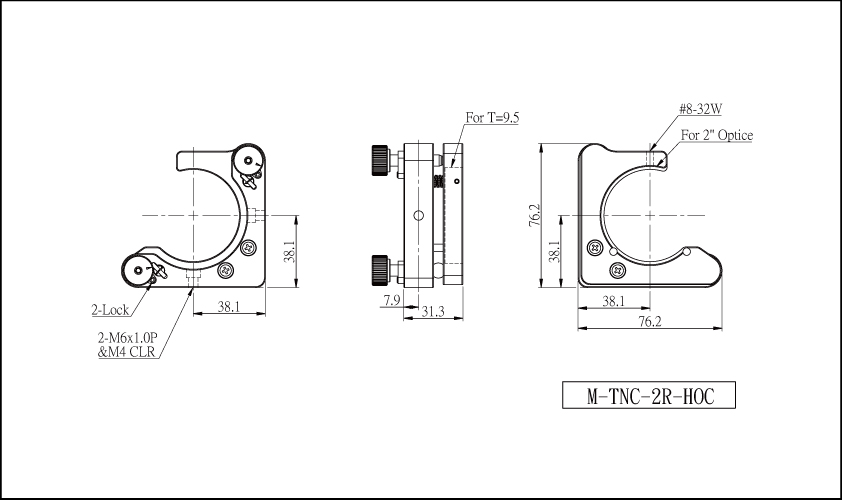

M-TNC-2R-HOC

Ø 2.0"/100TPI Screw/Right-Hand/knob/Lock
In stock
US$134.50

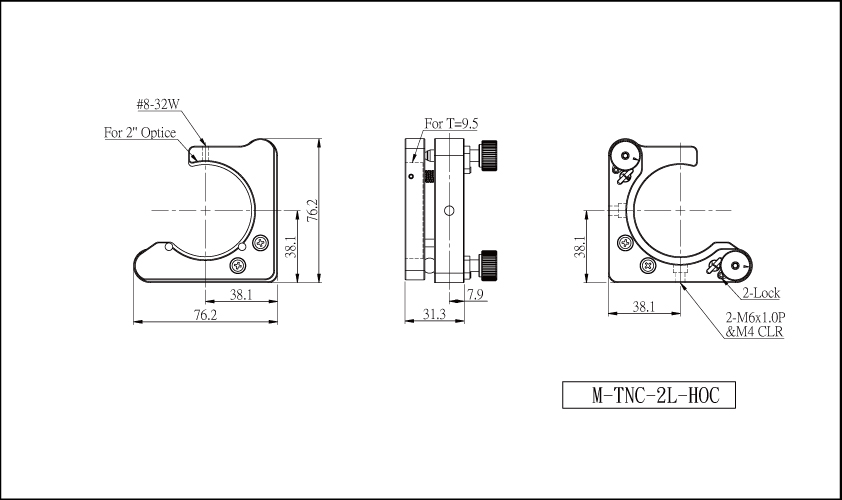

M-TNC-2L-HOC

Ø 2.0"/100TPI Screw/Left-Hand/knob/Lock
In stock
US$134.50

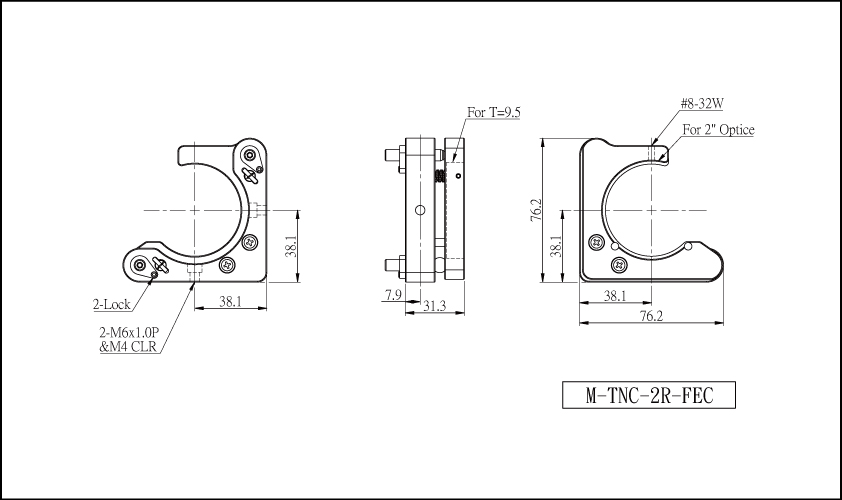

M-TNC-2R-FEC

Ø 2.0"/127TPI Screw/Right-Hand/Lock
In stock
US$141.30

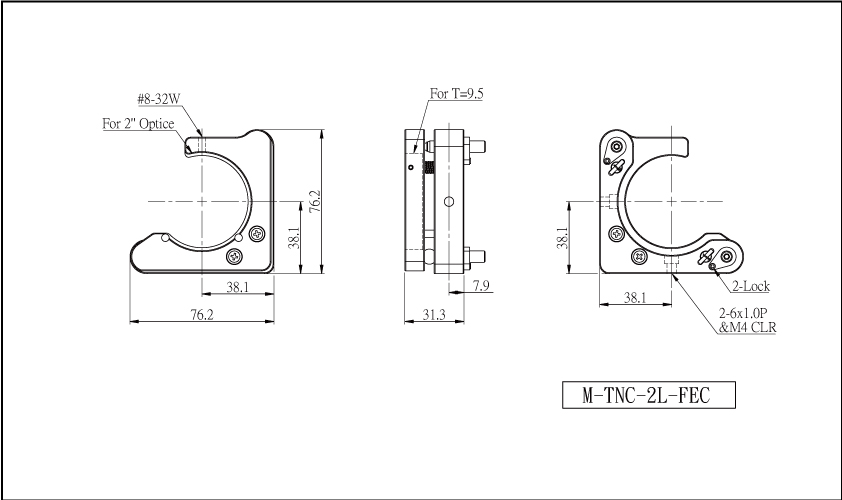

M-TNC-2L-FEC

Ø 2.0"/127TPI Screw/Left-Hand/Lock
In stock
US$141.30
