Specifications
 • Optics Diameter : Ø 25.4mm
 • Adjuster Thread : 100TPI(0.25mm)/127TPI(0.2mm)
 • Angular Range : ±3°
 • Resolution : 0.4° per Revolution
 • Adjustments Axis : θxθy
Drawings



Precision Kinematic Clear edge Mirror Mount With 2 Adjustable

TNC-1-series

stability Clear-Edge 100TPI 127TPI

• In addition to the common tension-type spring structure, the TNC-series mirror mount also incorporates a disc-type spring structure. The advantages of the disc-type spring with its smaller spring constant and larger spring force enable the mount to support heavier optical components. To avoid the instability caused by the misalignment of disc-type springs, we have improved the structure of the disc-type spring to prevent such situations. The 100-degree notched design of the lens placement plate prevents potential obstructions during optical path adjustment.

• The mount can be combined with other mechanical structures using either M4-headed screws or M6 set screws.


Part Number/Description Delivery Price Qty. Add to Cart

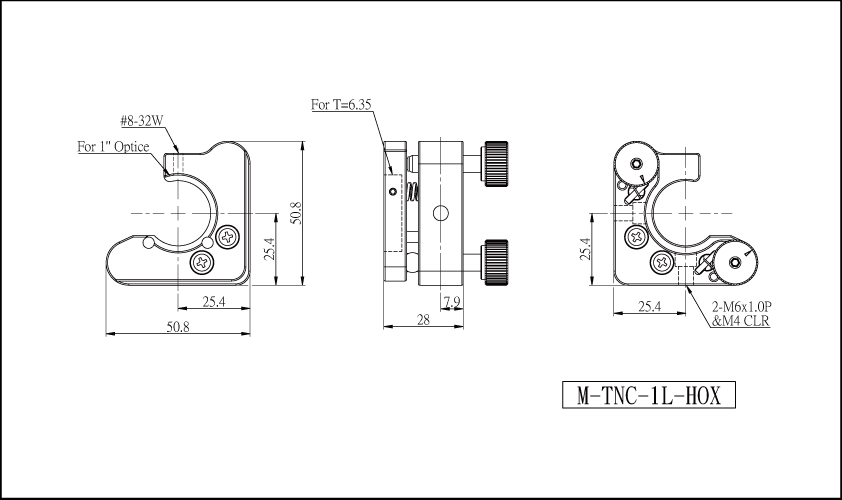

M-TNC-1L-HOX

Ø 1.0"/100TPI Screw/Left-Hand/knob

In stock
US$79.30

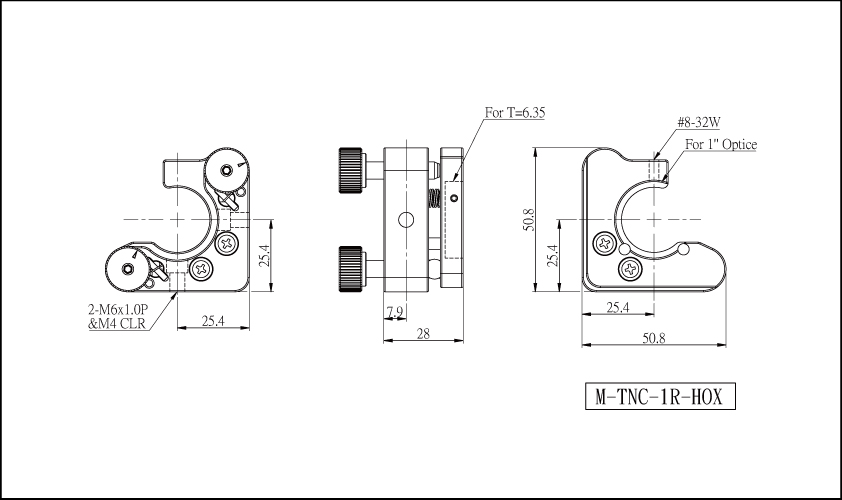

M-TNC-1R-HOX

Ø 1.0"/100TPI Screw/Right-Hand/knob

In stock
US$79.30

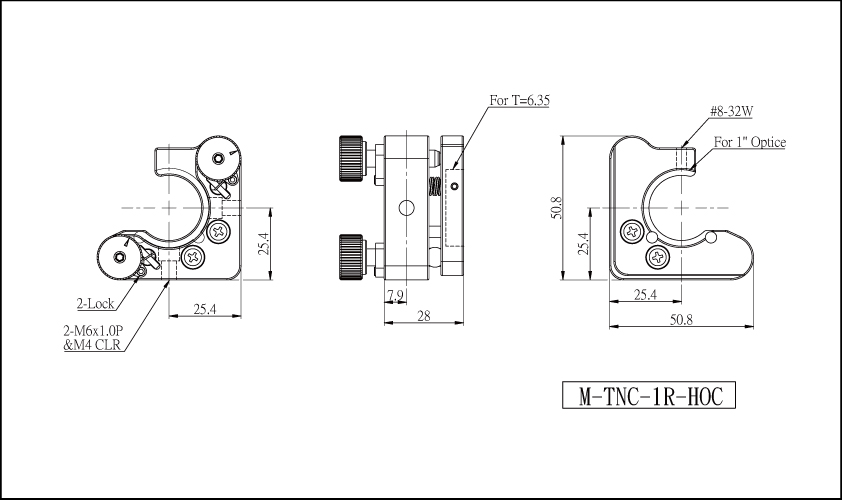

M-TNC-1R-HOC

Ø 1.0"/100TPI Screw/Left-Hand/knob/Lock

In stock
US$93.10

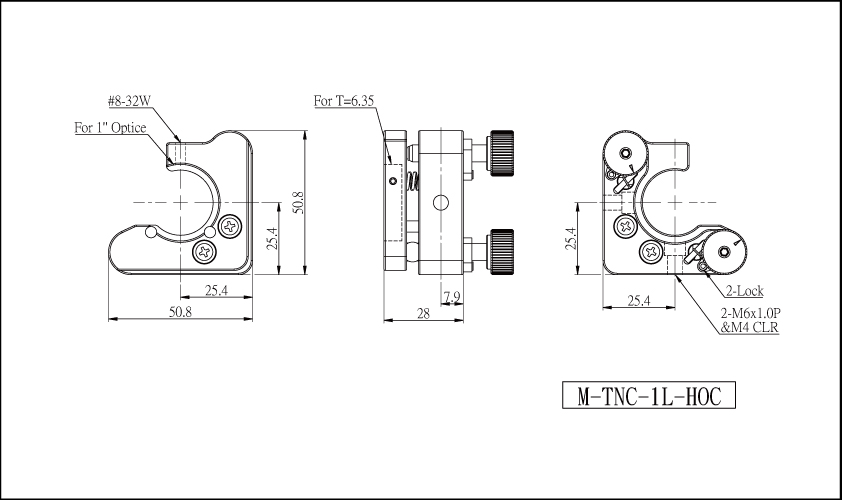

M-TNC-1L-HOC

Ø 1.0"/100TPI Screw/Right-Hand/knob/Lock

In stock
US$93.10

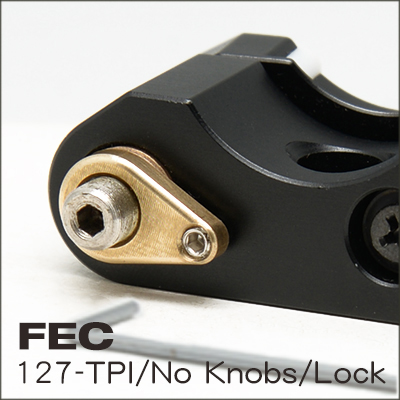

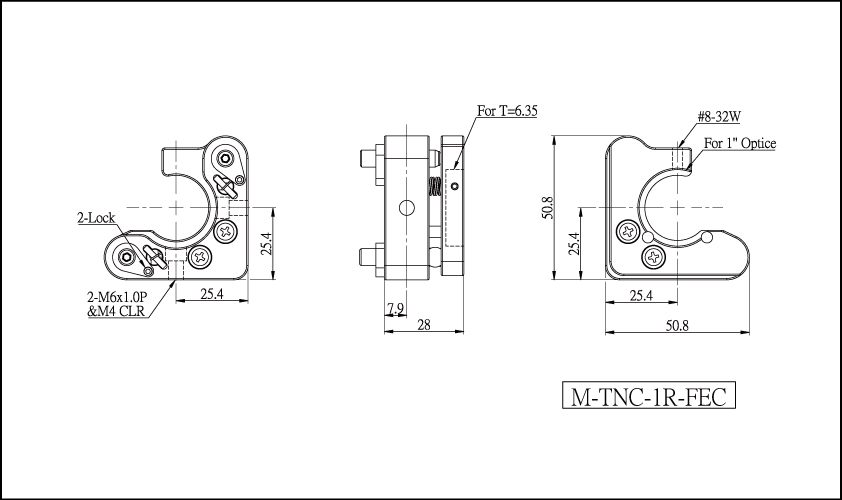

M-TNC-1R-FEC

Ø 1.0"/127TPI Screw/Right-Hand/Lock

In stock
US$103.40

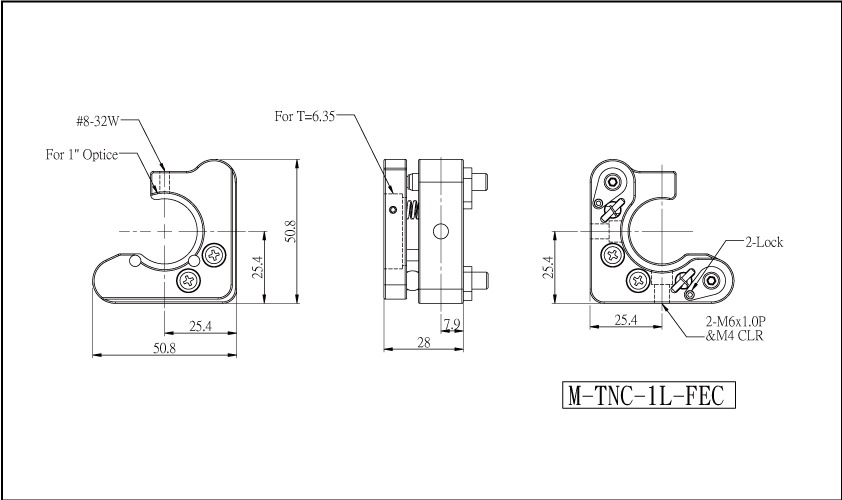

M-TNC-1L-FEC

Ø 1.0"/127TPI Screw/Left-Hand/Lock

In stock
US$103.40
