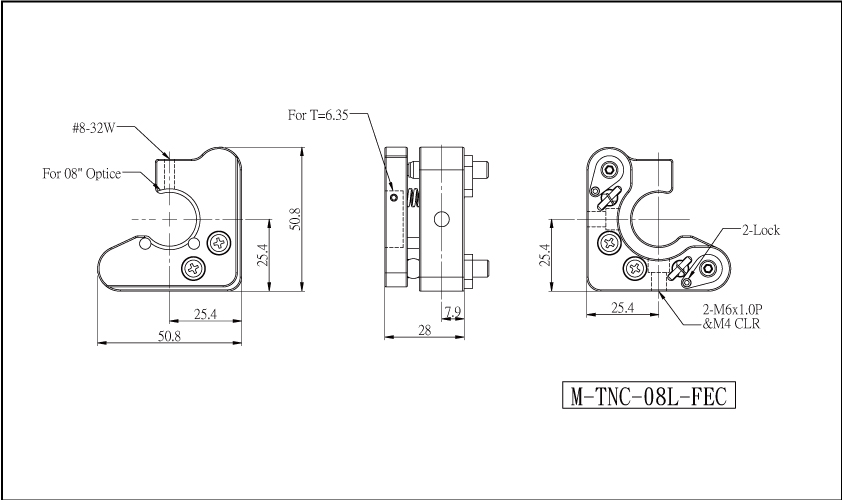

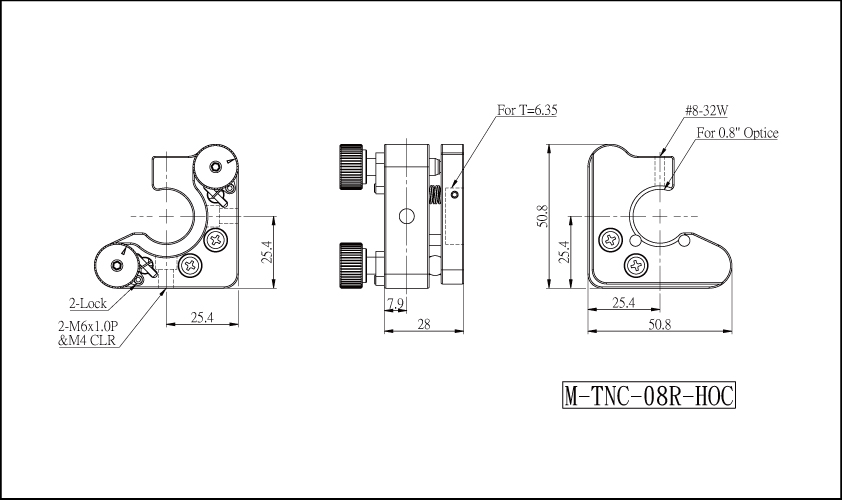

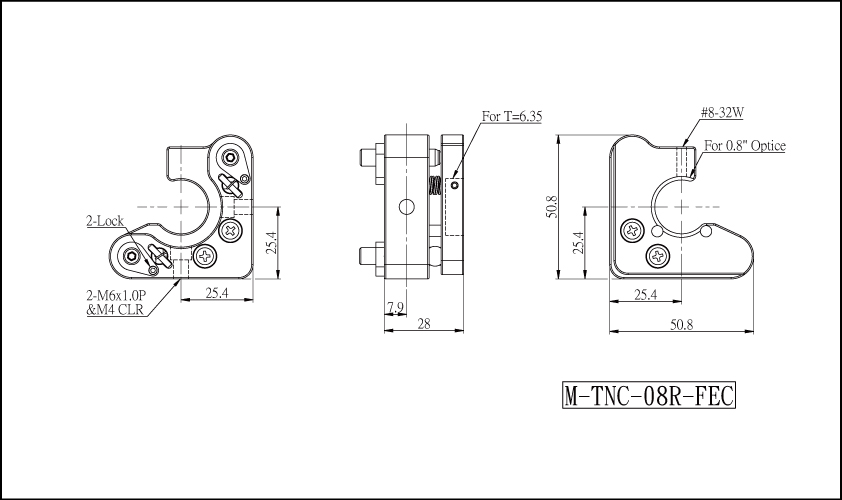

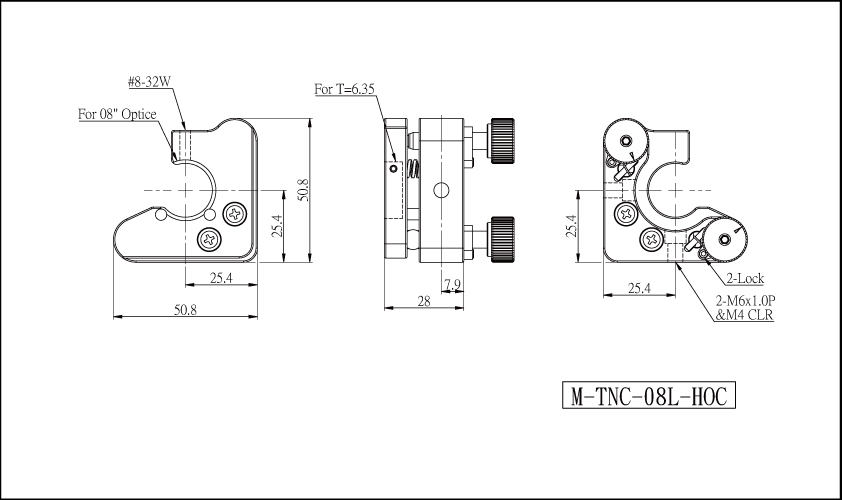

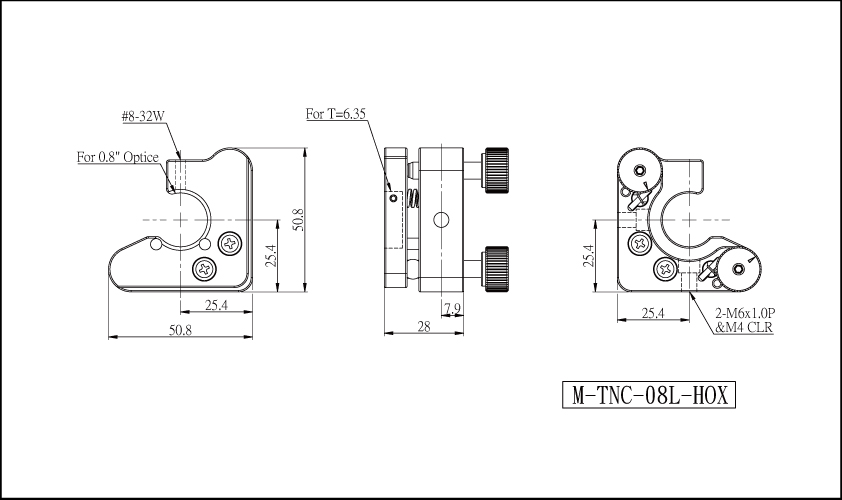

Precision Kinematic Clear edge Mirror Mount With 2 Adjustable

• In addition to the common tension-type spring structure, the TNC-series mirror mount also incorporates a disc-type spring structure. The advantages of the disc-type spring with its smaller spring constant and larger spring force enable the mount to support heavier optical components. To avoid the instability caused by the misalignment of disc-type springs, we have improved the structure of the disc-type spring to prevent such situations. The 100-degree notched design of the lens placement plate prevents potential obstructions during optical path adjustment.

• The mount can be combined with other mechanical structures using either M4-headed screws or M6 set screws.
