3 Adjuster Kinematic Mirror Mounts

TTMSO-05-series

Specification
 • Optics Diameter : Ø 12.7 mm
 • Drive Type : 100TPI (0.25mm)
 • Adjust range : θxθy±3°  Z=6mm°
 • Adjustment Accuracy: θx : θy=0.7° , Z=0.25mm
 • Adjustments : θx : θy : Z



Click to Enlarge
Economy 100TPI 3-Axis


► Black anode Aluminum

► 3-Axis adjustment

► Connection with M4 Thread &M6  Countersunk Hole

► Lock Function





Part Number/Description Delivery Price Qty. Add to Cart

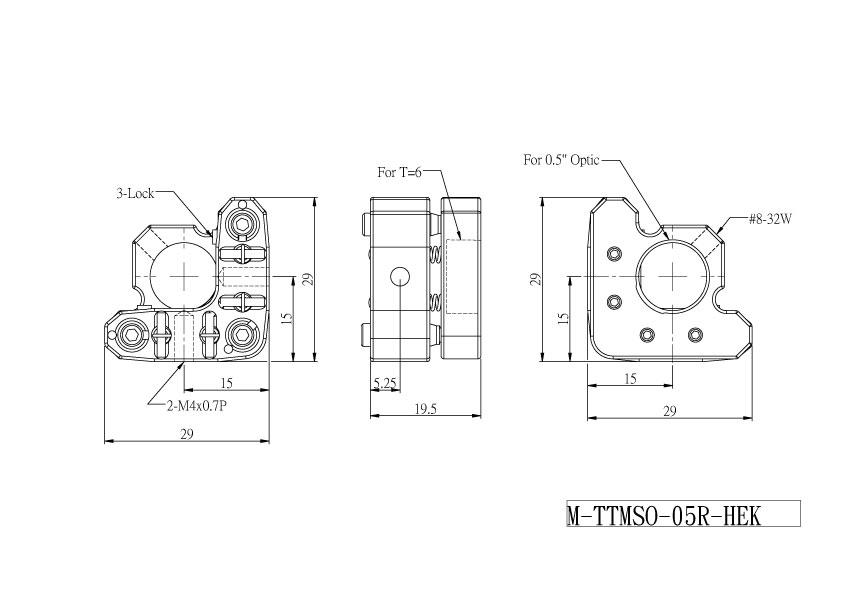

M-TTMSO-05R-HEK

Ø 0.5"/No Knob/Lock/3-Axis
In stock
US$74.14
M-TTMSO-05R-HEX

In stock
US$63.79
