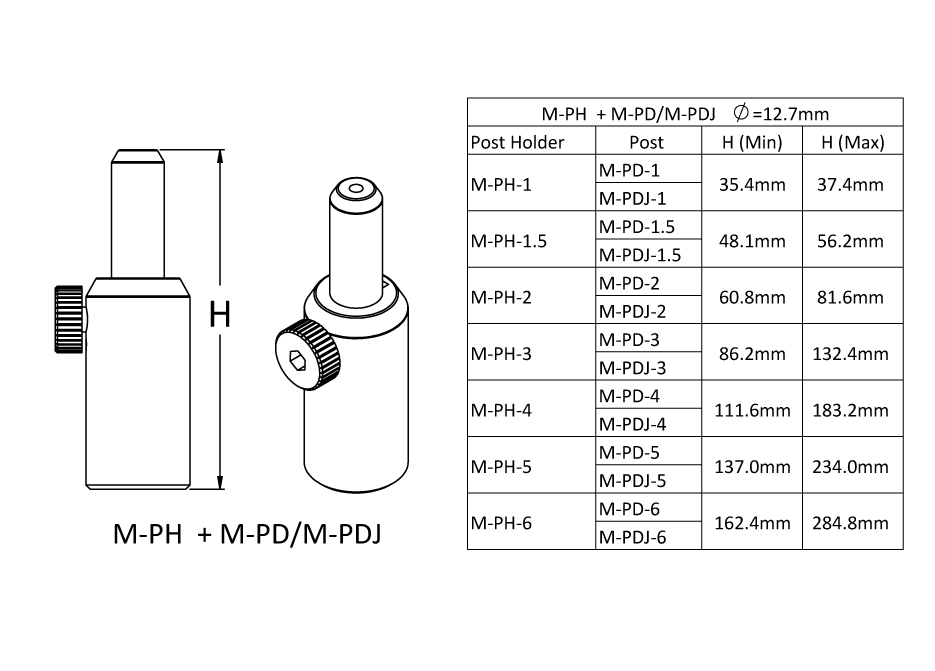

               M-PH  + M-PD/M-PDJ    Φ=12.7mm 2D-Drawing
 Post   Holder Post  H (Min) H (Max) PDF
 M-PH-1 M-PD-1 35.4mm 37.4mm
M-PDJ-1
 M-PH-1.5 M-PD-1.5 48.1mm 56.2mm
M-PDJ-1.5
 M-PH-2 M-PD-2 60.8mm 81.6mm
M-PDJ-2
 M-PH-3 M-PD-3 86.2mm 132.4mm
M-PDJ-3
 M-PH-4 M-PD-4 111.6mm 183.2mm
M-PDJ-4
 M-PH-5 M-PD-5 137.0mm 234.0mm
M-PDJ-5
 M-PH-6 M-PD-6 162.4mm 284.8mm
M-PDJ-6


Ø12.7mm Post Holder

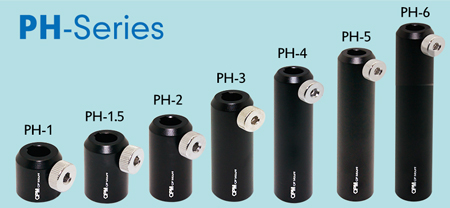

PH-Series
• Ø 12.7mm Post Holder
• Material: Aluminum



Part Number/Description Delivery Price Qty. Add to Cart

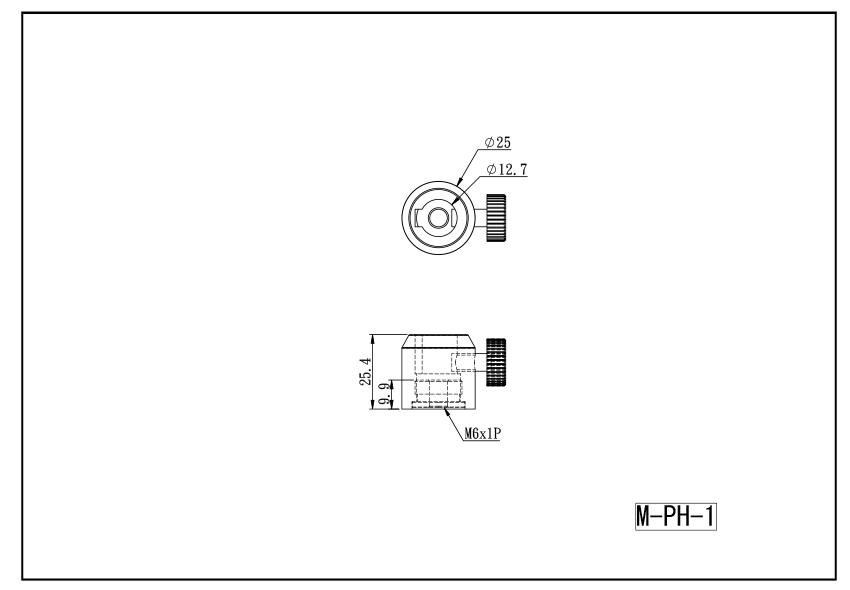

M-PH-1

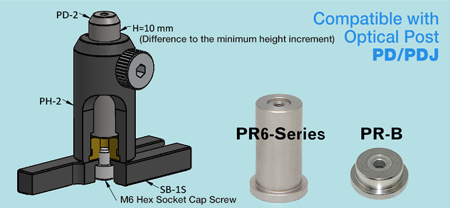

Ø1/2" Post Holder / L=1" / Assemble With PD Posts& PRB Base
In stock
US$7.50

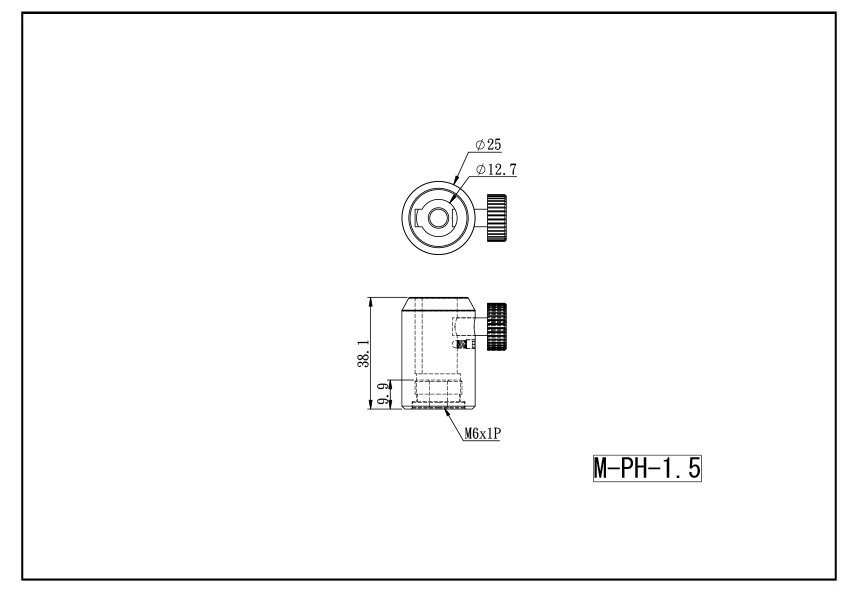

M-PH-1.5

Ø1/2" Post Holder / L=1.5" / Assemble With PD Posts& PRB Base
In stock
US$8.10
M-PH-2

Ø1/2" Post Holder / L=2" / Assemble With PD Posts& PRB Base
In stock
US$8.50

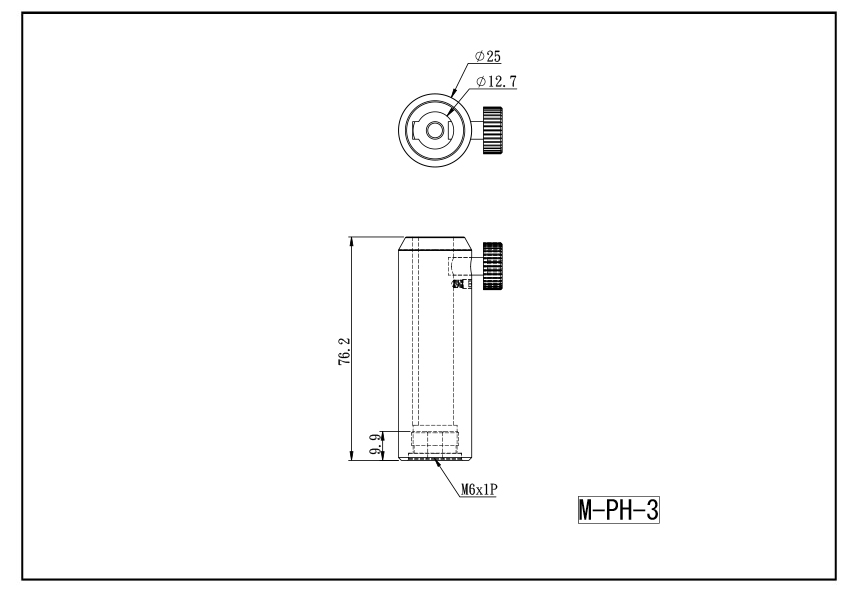

M-PH-3

Ø1/2" Post Holder / L=3" / Assemble With PD Posts& PRB Base
In stock
US$9.30

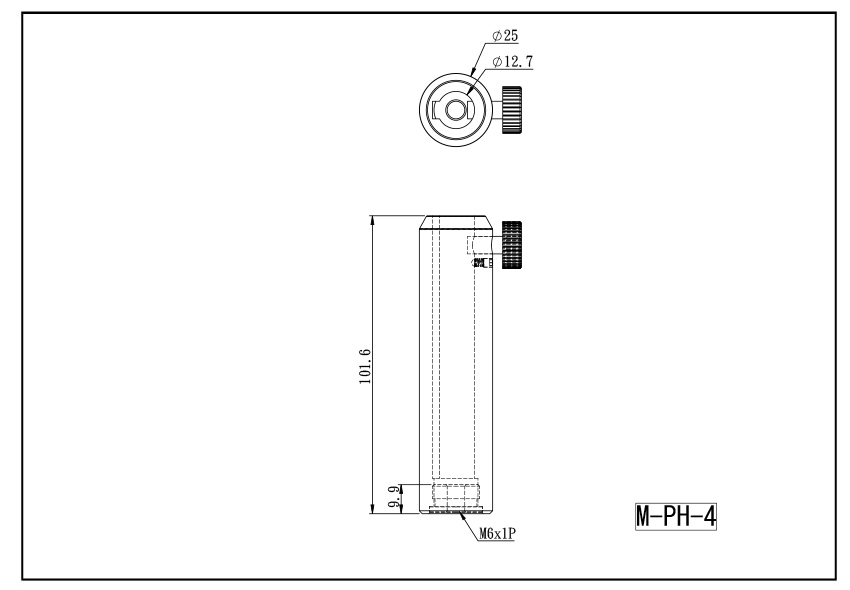

M-PH-4

Ø1/2" Post Holder / L=4" / Assemble With PD Posts& PRB Base
In stock
US$10.70

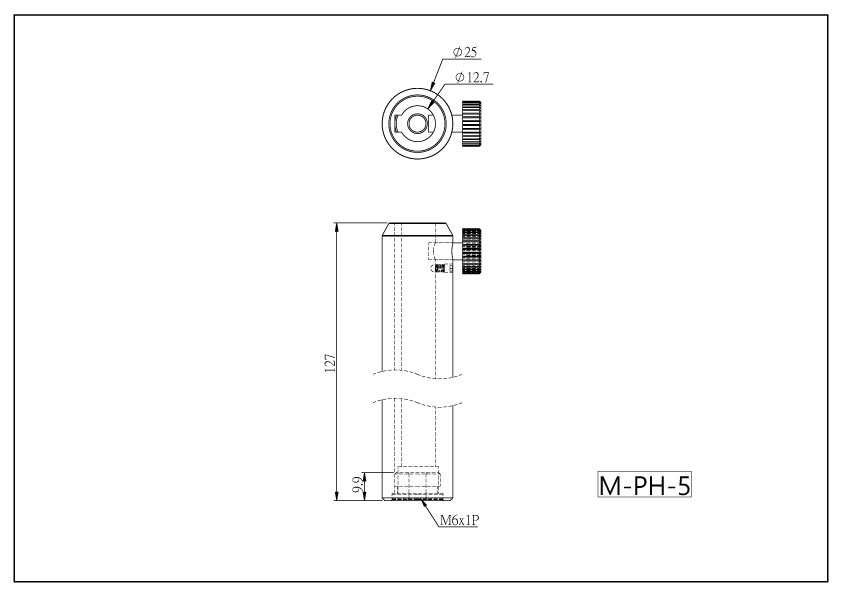

M-PH-5

Ø1/2" Post Holder / L=5" / Assemble With PD Posts& PRB Base
In stock
US$13.10

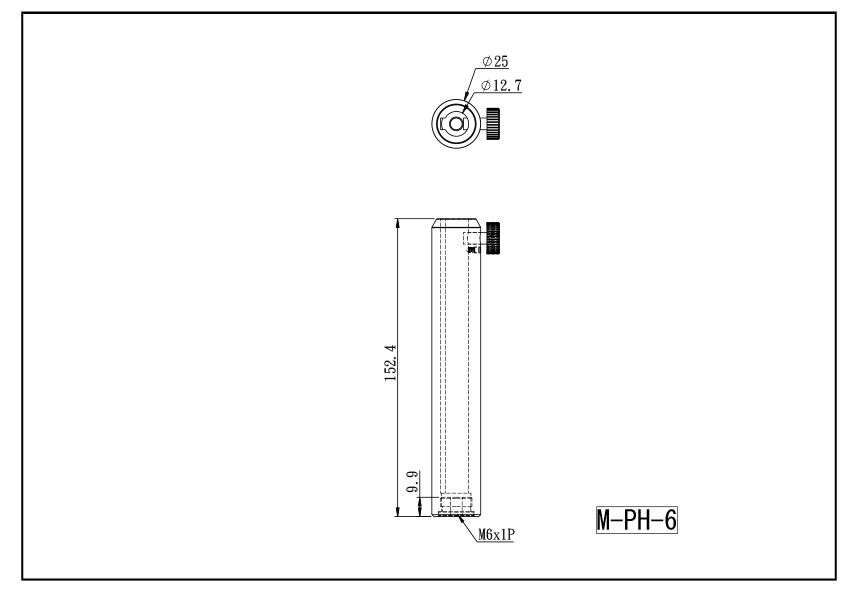

M-PH-6

Ø1/2" Post Holder / L=6" / Assemble With PD Posts& PRB Base
In stock
US$13.70
