Expand Item Number
Length
(mm)
Weight
(mm)

 M-PF-1 25.4 0.02

 M-PF-1.5 38.1 0.03

 M-PF-2 50.8 0.04

 M-PF-3 76.2 0.07

 M-PF-4 101.6 0.10

Ø12.7mm Optical Posts

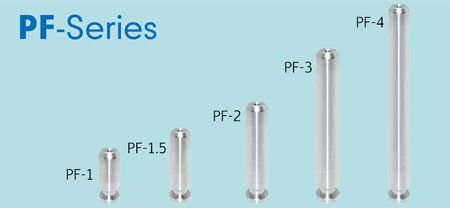

PF-series

Ø12.7mm

• Ground and polished Ø12.7mm support rod, used to match the size of the support rod holder for mounting various adjustment brackets.

• Top end features an M4 threaded hole.

• Length ranges from 1 to 4 inches.

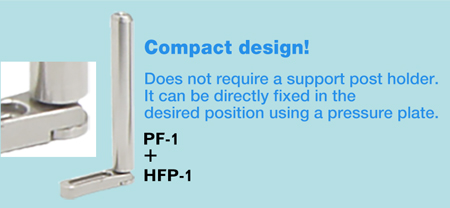

• Compact design allows for direct fixation using a pressure plate at the desired position without the need for a support rod holder (height adjustment not possible).



Part Number/Description Delivery Price Qty. Add to Cart

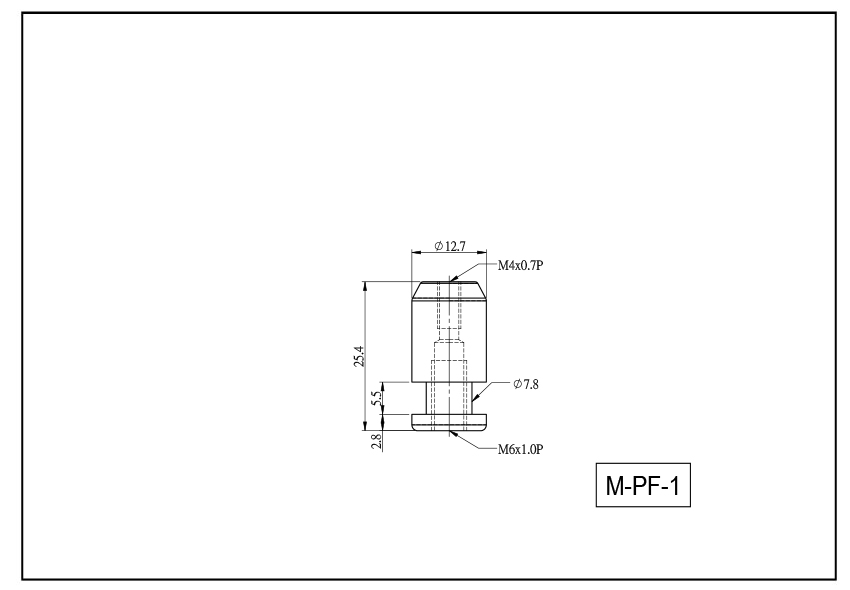

M-PF-1

Ø1/2" Posts / L=1" / M4 Tap / HFP-1 Holding Fork can be easily clamped both PF and PF12 series posts
In stock
US$6.70

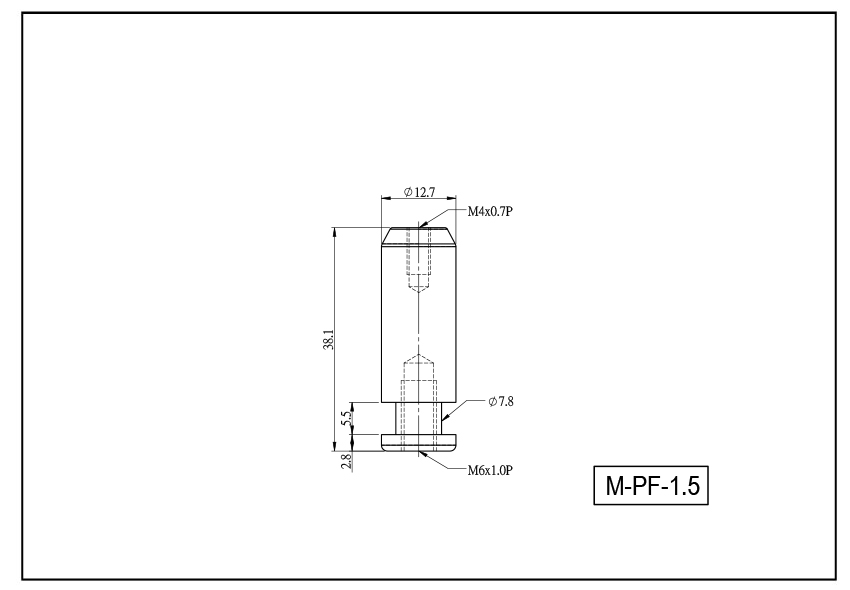

M-PF-1.5

Ø1/2" Posts / L=1.5" / M4 Tap / HFP-1 Holding Fork can be easily clamped both PF and PF12 series posts
In stock
US$7.40

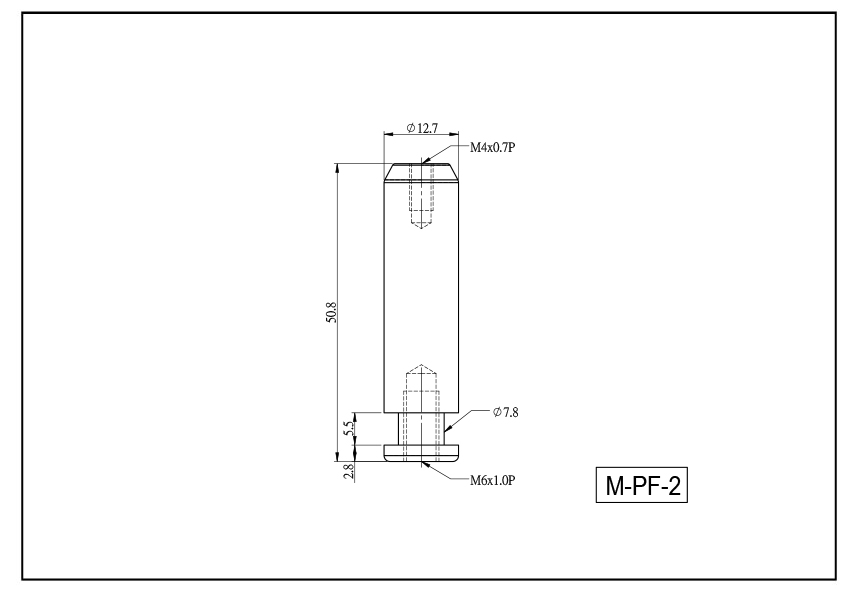

M-PF-2

Ø1/2" Posts / L=2" / M4 Tap / HFP-1 Holding Fork can be easily clamped both PF and PF12 series posts
In stock
US$10.50
M-PF-3

Ø1/2" Posts / L=3" / M4 Tap / HFP-1 Holding Fork can be easily clamped both PF and PF12 series posts
In stock
US$12.00

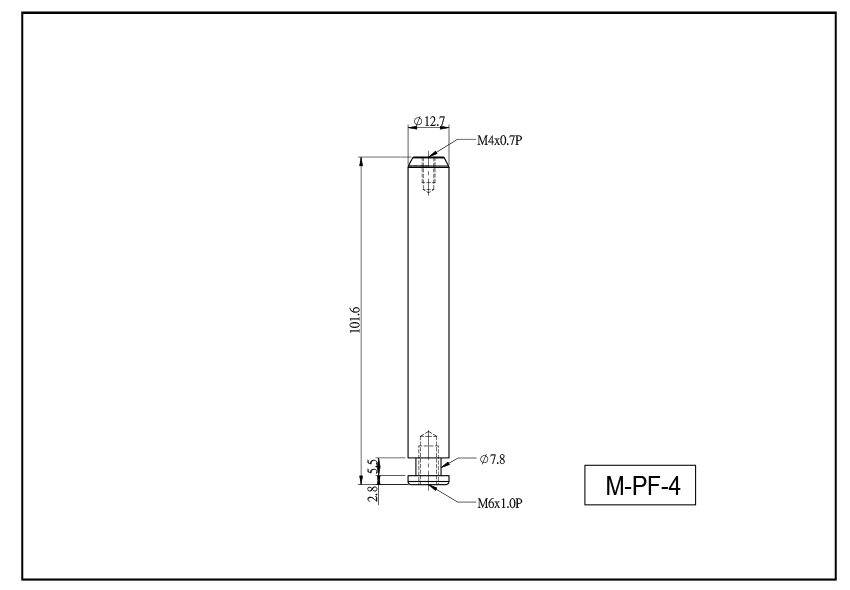

M-PF-4

Ø1/2" Posts / L=4" / M4 Tap / HFP-1 Holding Fork can be easily clamped both PF and PF12 series posts
In stock
US$12.20
