  7. Ø12mm Optical Posts

Expand Item Number
Length
(mm)
Weight
(mm)

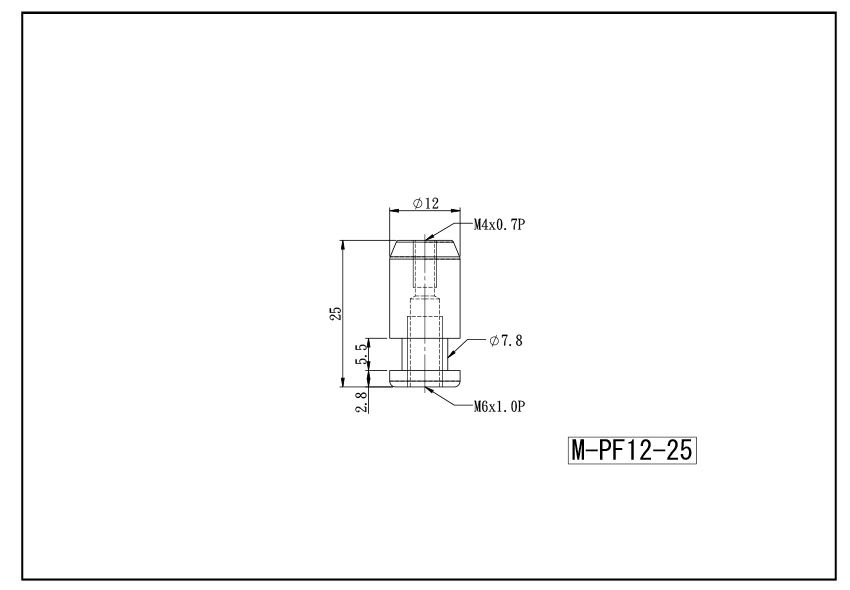

 M-PF12-25 25 0.02

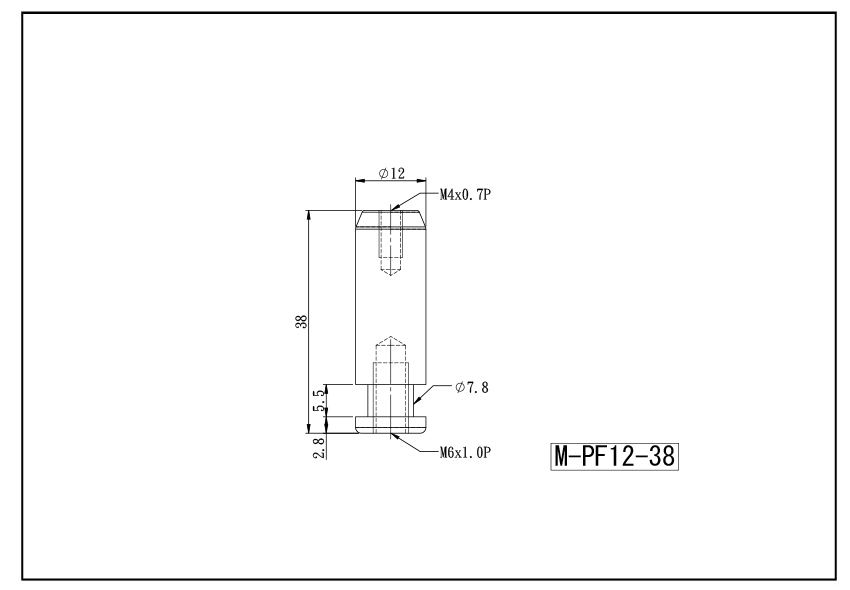

 M-PF12-38 38 0.03

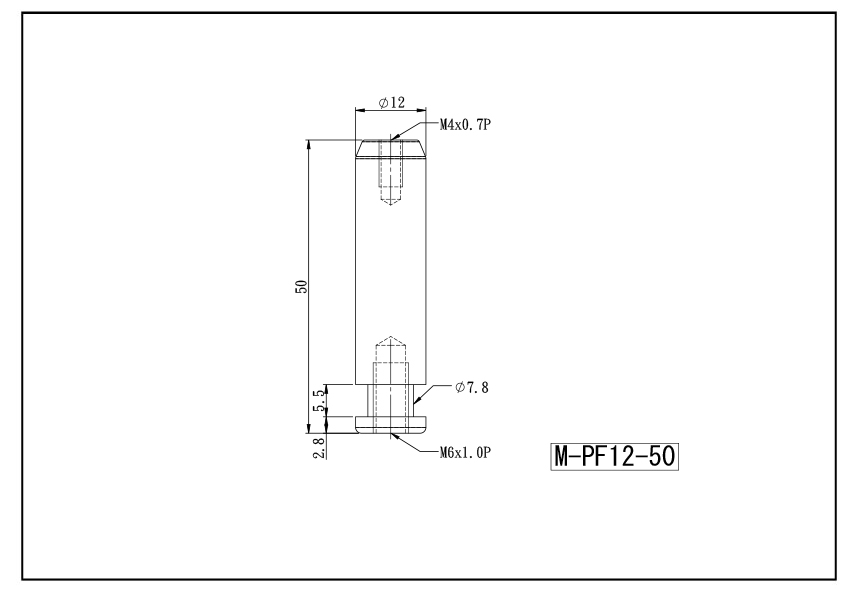

 M-PF12-50 50 0.04

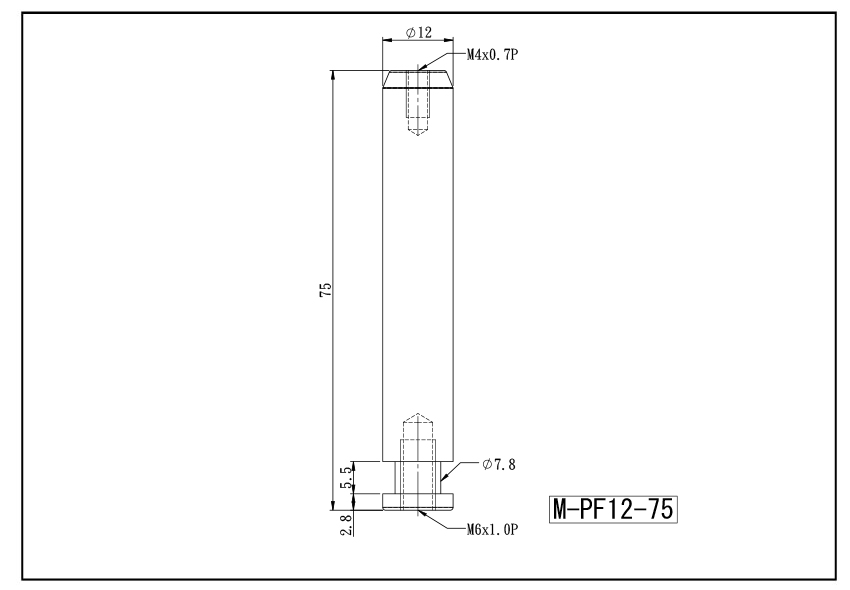

 M-PF12-75 75 0.07

 M-PF12-100 100 0.10

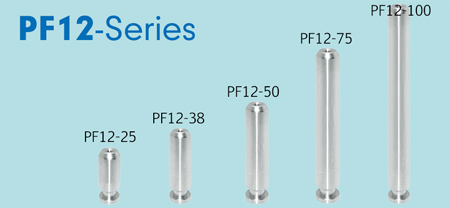

Ø12mm Optical Posts

PF12-series

Ø12mm

• Ø12mm optical posts, following the Japanese optical standards, is required to be used with a corresponding size optical post holder for mounting various adjustment brackets.

• The upper end features an M4 threaded hole.

• Length range is from 25-100mm.

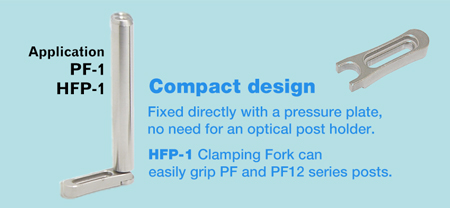

• Compact design, can be directly fixed in the desired position using a clamp without the need for a support rod seat (height adjustment is not possible).

Related Products

Part Number/Description Delivery Price Qty. Add to Cart
M-PF12-25

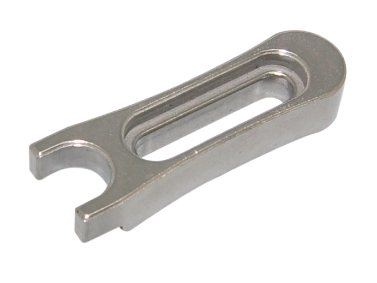

Ø12mm Posts / L=25mm / M4 Tap / HFP-1 Holding Fork can be easily clamped both PF and PF12 series posts
In stock
US$5.90
M-PF12-38

Ø12mm Posts / L=38mm / M4 Tap / HFP-1 Holding Fork can be easily clamped both PF and PF12 series posts
In stock
US$6.60
M-PF12-50

Ø12mm Posts / L=50mm / M4 Tap / HFP-1 Holding Fork can be easily clamped both PF and PF12 series posts
In stock
US$8.30
M-PF12-75

Ø12mm Posts / L=75mm / M4 Tap / HFP-1 Holding Fork can be easily clamped both PF and PF12 series posts
In stock
US$9.30
M-PF12-100

Ø12mm Posts / L=100mm / M4 Tap / HFP-1 Holding Fork can be easily clamped both PF and PF12 series posts
In stock
US$10.00
