  6. PMZ80-C7-series

specification
 • Platfrom : 105mmX80mm
 • Travel  Range : 10mm
 • Resolution 1600 Rev : 0.3um
 • Positioning Accuracy : ≤4um
 • Repeatability : ±1um
 • Capacity : 300N
 • weigth Kg : 5 kg

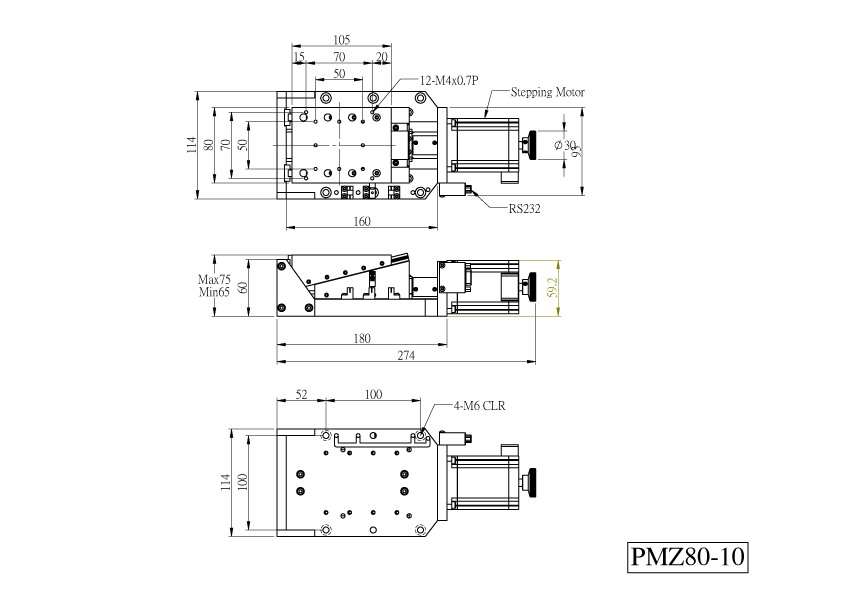

2D-Drawing



Vertical stage

PMZ80-C7-series

• PMZ80 is an electronically controlled translation stage that provides high repeatability, stability, and flatness on the horizontal plane. It is suitable for use in complex motion structures.
Dub 9 Pin Female
Pin Description
1  Home (output 0V NPN) 6  B+ ( 2 Phase Motor)
2  0V 7 B- ( 2 Phase Motor)
3 Forward Limit +(output 0V NPN) 8 A- ( 2 Phase Motor)
4 Reverse Limit -(output 0V NPN) 9 A+ ( 2 Phase Motor)
5  Vcc+



Part Number/Description Delivery Price Qty. Add to Cart
M-PMZ80-10-C7

Pitch 2.0mm C7 Ball Screw/Travel Range 10mm /2 Phase Stepping Motor/Ball Bearing Linear Guid
Inquiry
US$2241.38
