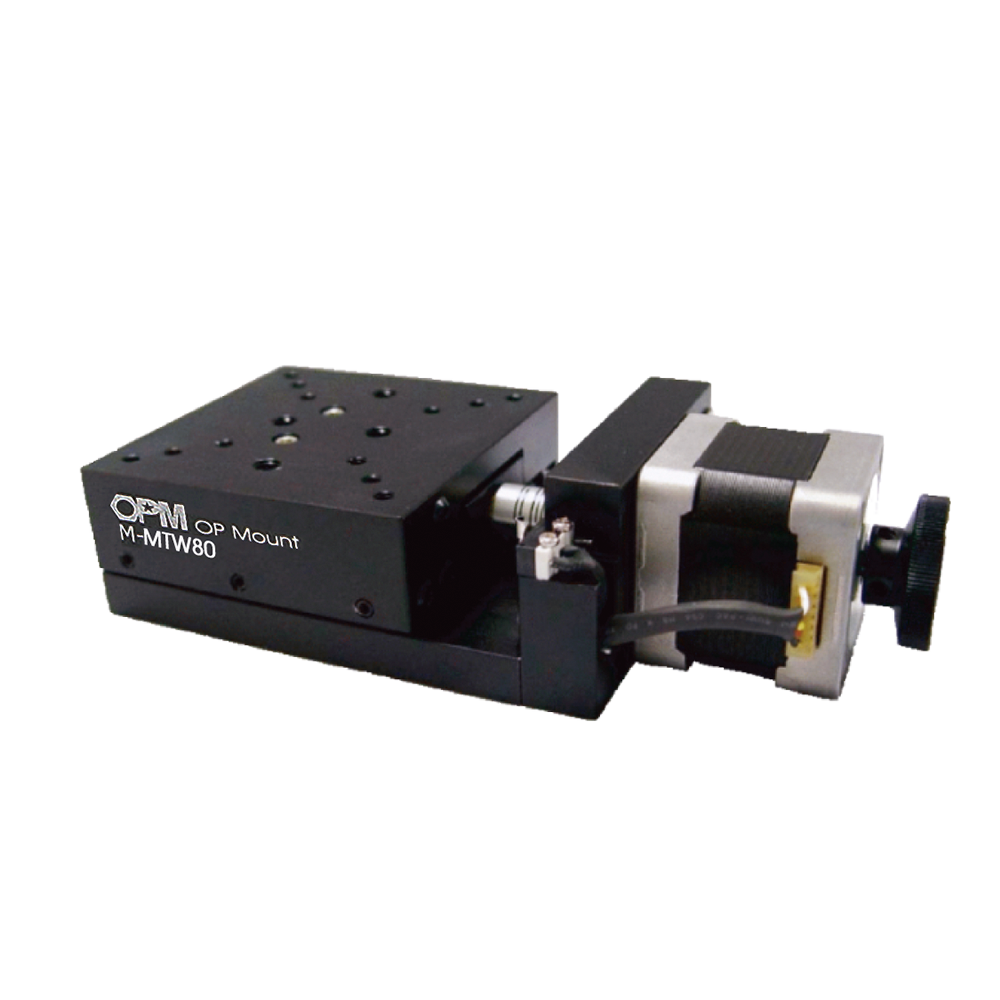

MTW Compact Motorized Linear Stage

MTW-C7-series

V-Cross Roller Guide and Precision Ball Screw

MTW Compact Motorized Linear Stage.Constructed by V-Cross Roller Guide and Precision Ball Screw.The MTW have better positioning accuracy and lower thickness.In the same condition. The MTW save 20%~40% longer than PMT Series.It suitable for using in small spaces.

Dub 9 Pin Female
Pin Description
1  None
2  0V
3
 Forward Limit +(output 0V NPN)
4
 Reverse Limit -(output 0V NPN)
5  Vcc+
6  B+ ( 2 Phase Motor)
7  B- ( 2 Phase Motor)
8  A- ( 2 Phase Motor)
9  A+ ( 2 Phase Motor)
Specification
Item Number
 MTW65-25-C7 MTW65-40-C7 MTW80-30-C7 MTW80-50-C7 MTW100-50-C7
Platfrom
 65mmX80mm 65mmX80mm 80mmX80mm 80mmX80mm 100mmX100mm
Travel Range
 25mm 40mm 30mm 50mm 50mm
Resolution
 1.0um 1.0um 1.0um 1.0um 1.0um
Positioning Accuracy
 ±50um/300mm ±50um/300mm ±50um/300mm ±50um/300mm ±50um/300mm
Repeatability
 ±1um ±1um ±1um ±1um ±1um
Loading 5Kg 5Kg 5Kg 5Kg 5Kg
Weight Kg 1 kg 1.1 kg 1.2 kg 1.5 kg 2.1 kg



Part Number/Description Delivery Price Qty. Add to Cart
M-MTW65-25-C7

Pitch 1.0mm Ball Screw / Travel Range 25mm /2 Phase Stepping Motor / V-Cross Roller Guide
Inquiry
US$1258.62
M-MTW65-40-C7

Pitch 1.0mm Ball Screw / Travel Range 40mm /2 Phase Stepping Motor / V-Cross Roller Guide
Inquiry
US$1310.34
M-MTW80-30-C7

Pitch 1.0mm Ball Screw / Travel Range 30mm /2 Phase Stepping Motor / V-Cross Roller Guide
Inquiry
US$1344.83
M-MTW80-50-C7

Pitch 1.0mm Ball Screw / Travel Range 50mm /2 Phase Stepping Motor / V-Cross Roller Guide
Inquiry
US$1413.79
M-MTW100-50-C7

Pitch 1.0mm Ball Screw / Travel Range 50mm /2 Phase Stepping Motor / V-Cross Roller Guide
Inquiry
US$1551.72
