Specification
 • Travel Range:20mm/50mm/100mm
 • Platfrom:32X32 mm
 • Repeatability:±1um
 • Resolution:1.0um

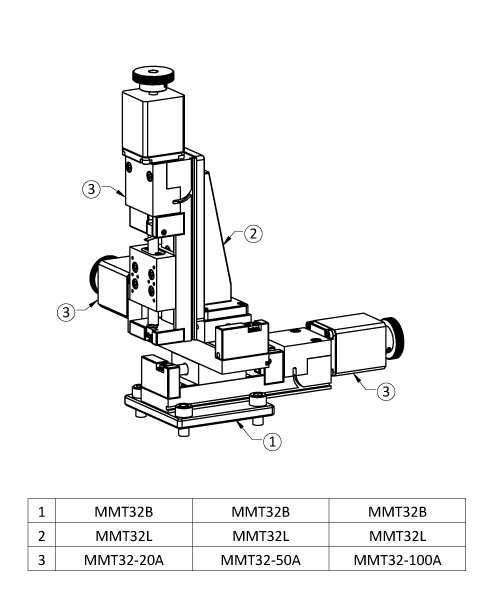

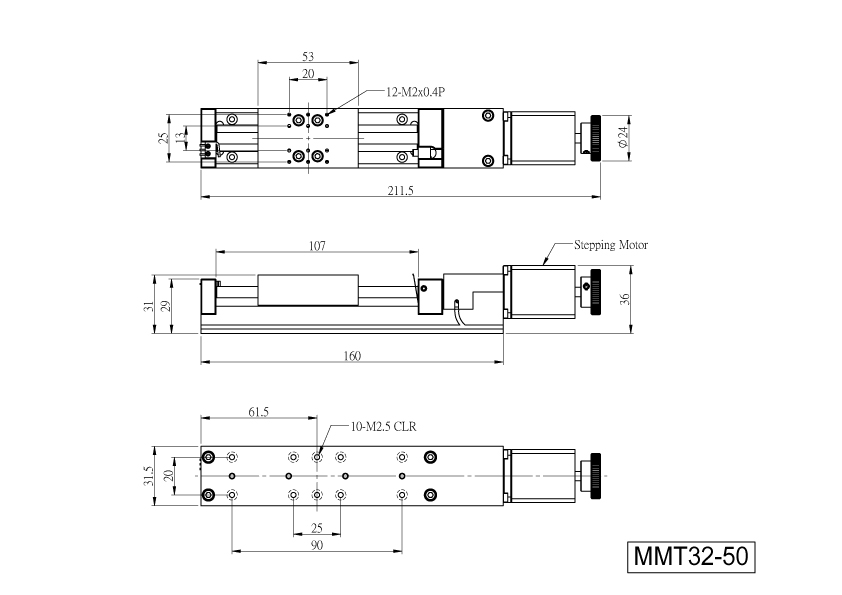

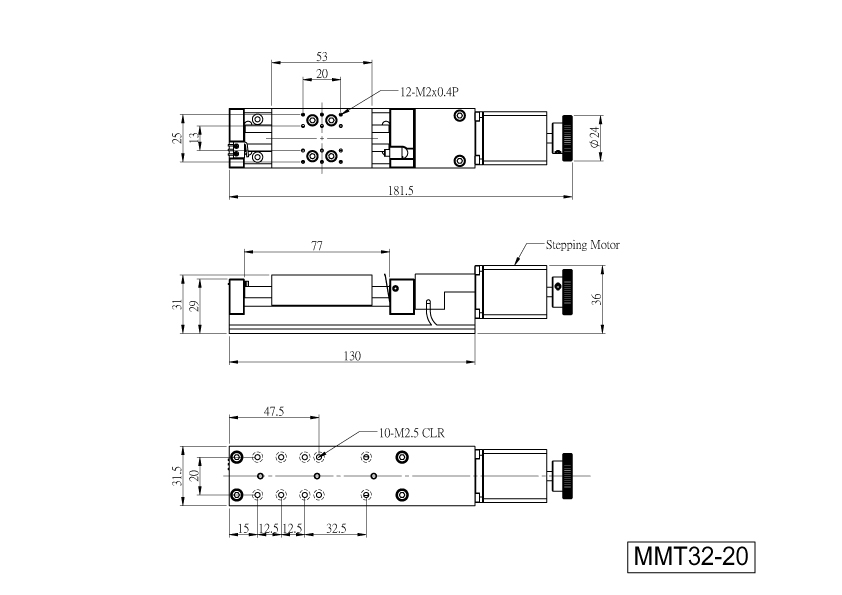

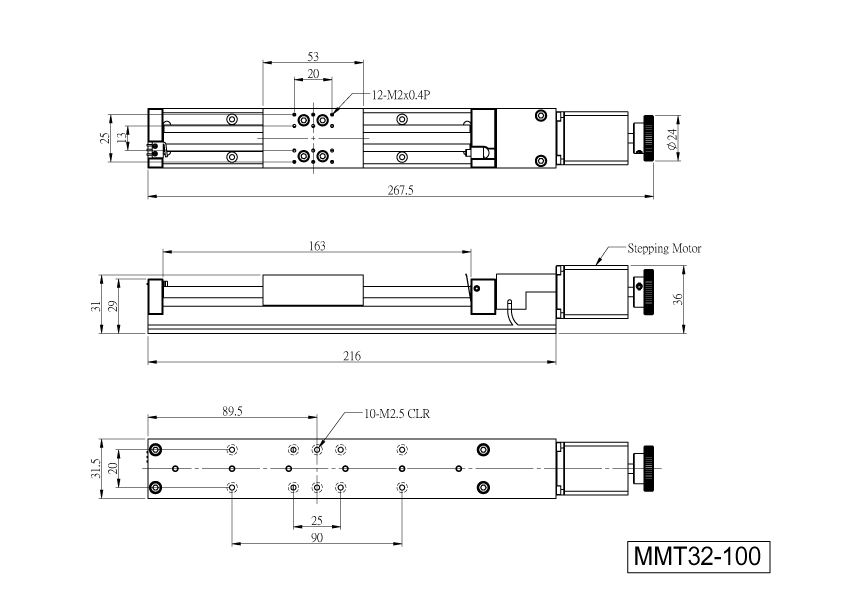

2D-Drawing



MMT32-C7-series

Compact Design High Resolution

The MMT32-XX series adopts a high-rigidity ball linear guide structure, with a driving mechanism using a 1.0mm pitch C7 ball screw and a backlash-free structure. When combined with a controller, it can achieve a resolution of 1μm and a repeatability of 1μm.

Dub 9 Pin Female
Pin Description
1 None
2  0V
3 Forward Limit+(output 0V NPN)
4 Reverse Limit-(output 0V NPN)
5  Vcc+
6 B+ ( 2 Phase Motor)
7 B- ( 2 Phase Motor)
8 A- ( 2 Phase Motor)
9 A+ ( 2 Phase Motor)

Part Number/Description Delivery Price Qty. Add to Cart
M-MMT32-20

Pitch 1.0mm Ball Screw / Travel Range 20mm /2 Phase Stepping Motor / Ball Bearing Linear Guide
Inquiry
US$1310.34
M-MMT32-50

Pitch 1.0mm Ball Screw / Travel Range 20mm /2 Phase Stepping Motor / Ball Bearing Linear Guide
Inquiry
US$1482.76
M-MMT32-100

Pitch 1.0mm Ball Screw / Travel Range 100mm /2 Phase Stepping Motor / Ball Bearing Linear Guide
Inquiry
US$1620.69
