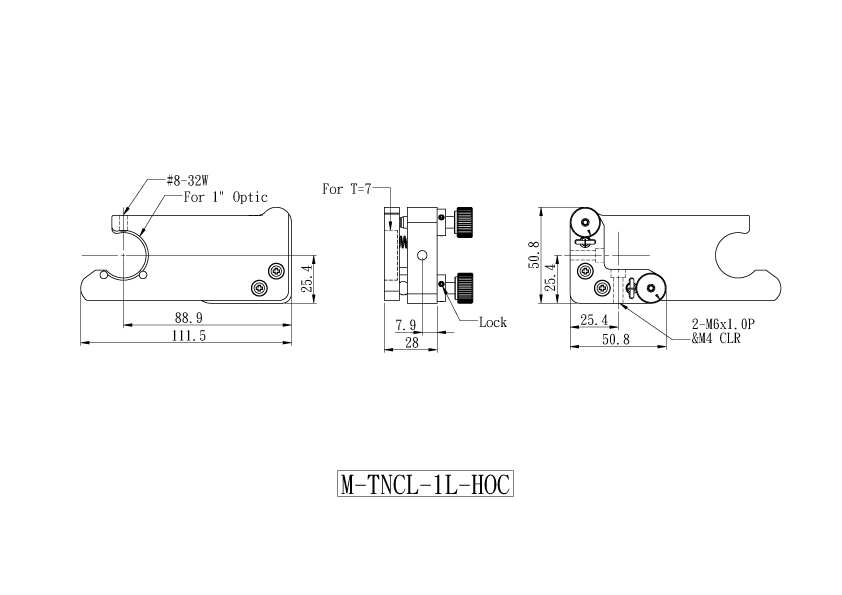

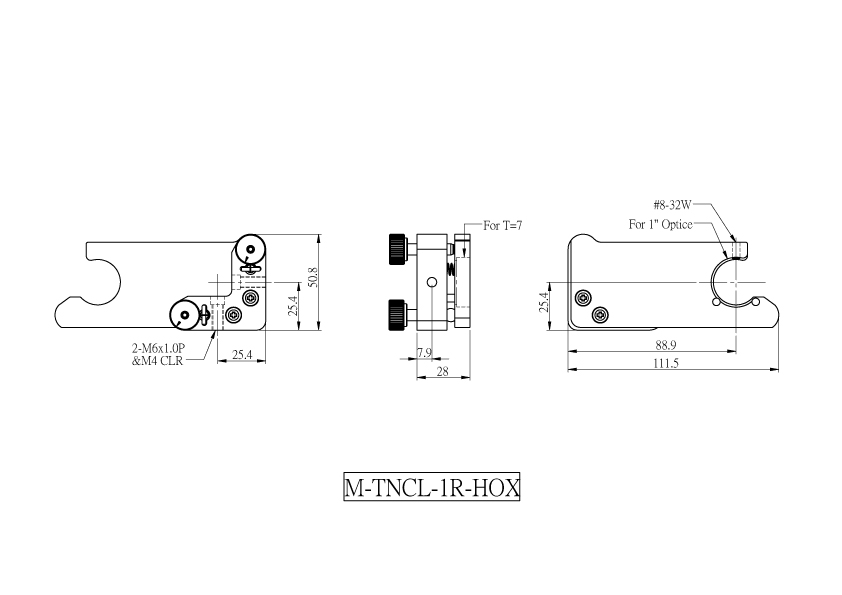

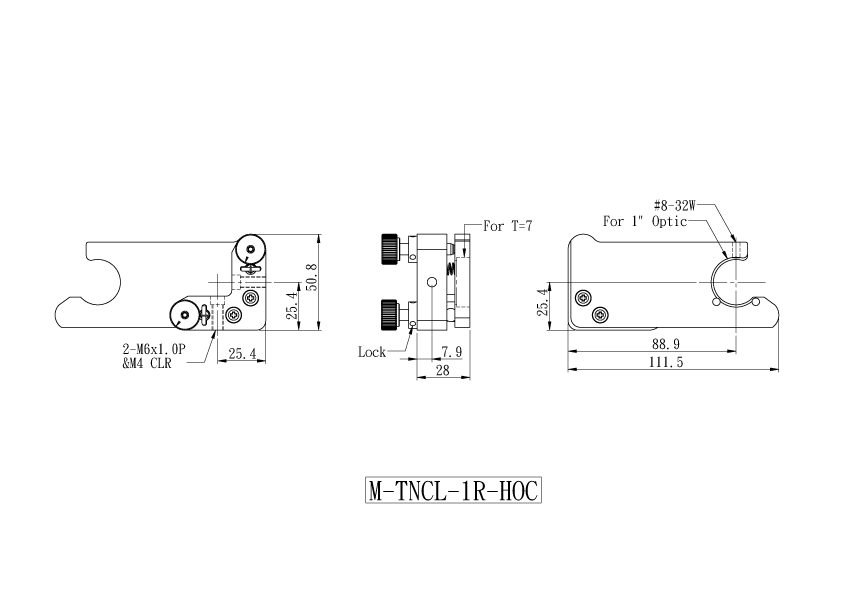

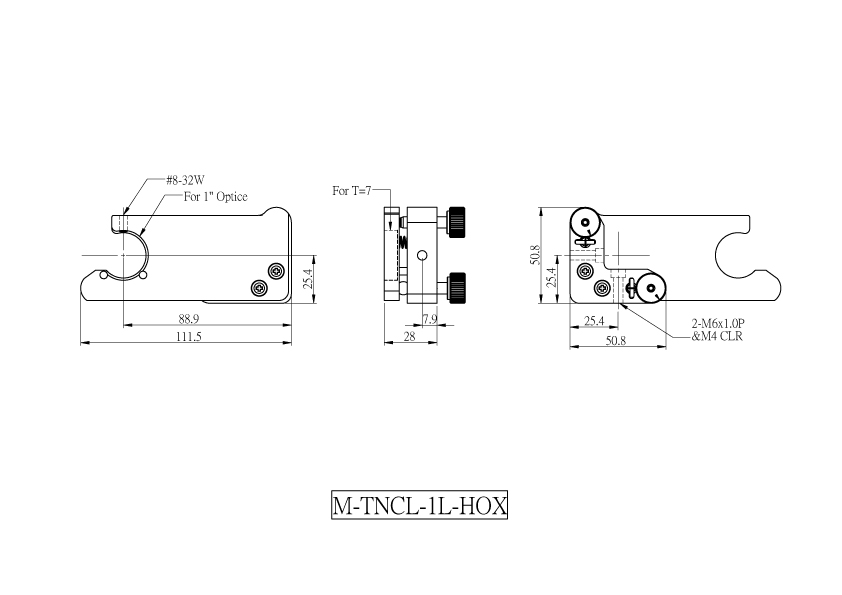

Specifications Item Number Optics Diameter Resolution AngularRange M-TNCL-1L-HOC φ25.4mm 7.0 mrad/rev ± 3° M-TNCL-1L-HOX φ25.4mm 7.0 mrad/rev ± 3° M-TNCL-1R-HOC φ25.4mm 7.0 mrad/rev ± 3° M-TNCL-1R-HOX φ25.4mm 7.0 mrad/rev ± 3° Drawings
Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge

Extend Mirror Mount

TNCL-series

◆ Patented disc spring structure.

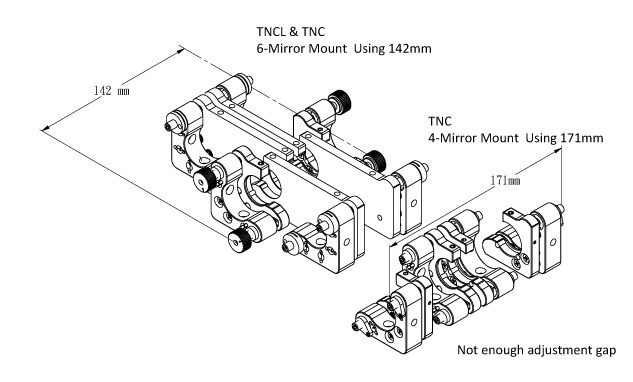

◆ Lengthened structure can help TNCL set up more optical components in the same distance.

◆ 100TPI precision screws

◆ 2-Axis adjustable
