  7. PM-series



Specification
Part Number
Adjustment per Revolution

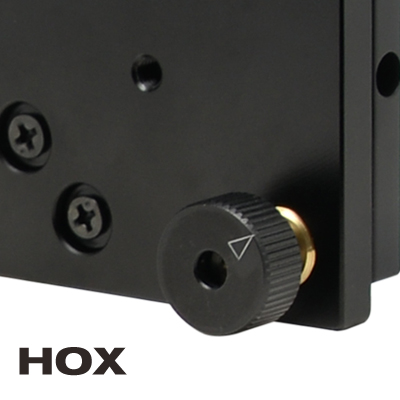

Removable Knobs

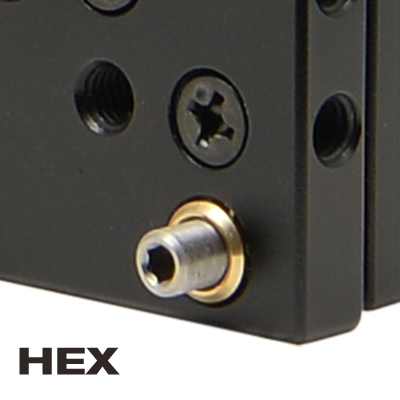

Hex Head Adjuster
PM-06-HEX 29mrad/rev HKTS-2 2,0
PM-1-HEX 15mrad/rev HKTS-2 2,0
PM-1.5-HOX 9.5mrad/rev HKTS-2.5 2.5
PM-2-HOX 6.6mrad/rev HKTS-2.5 2.5

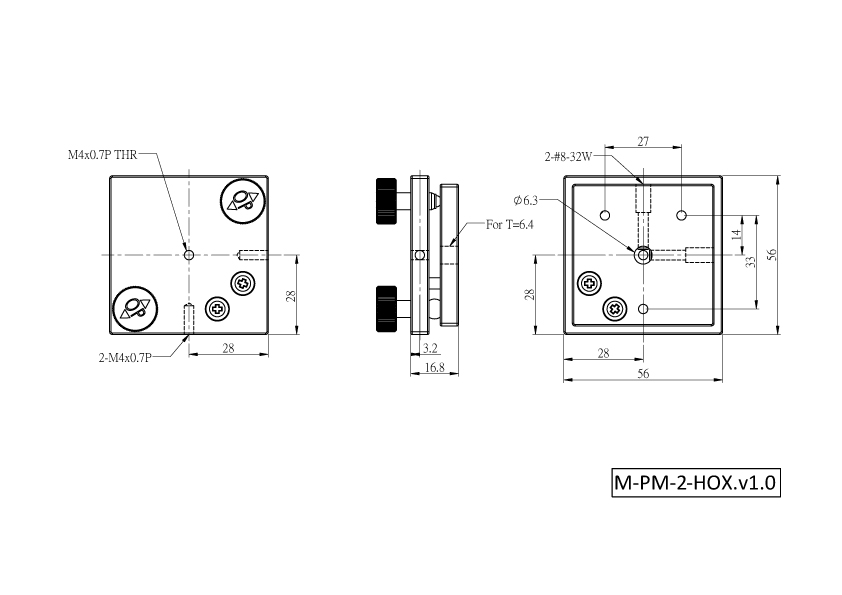

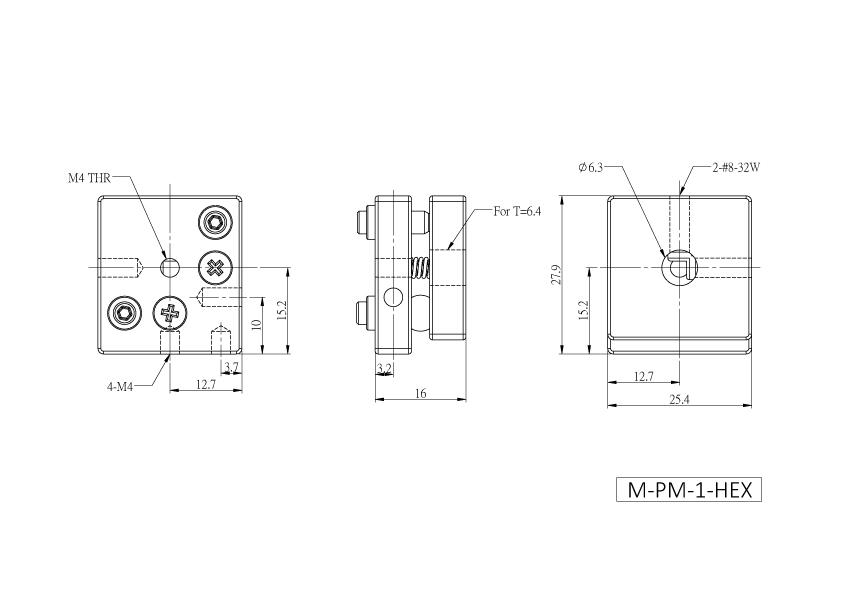

2D-Drawing


Compact Kinematic Mounts

PM-series

Compact Mount 2-Axis   100TPI

► Ø 0.6",1.0",1.5",&2.0" Option
► Compact Mount
► 2-Axis  Adjustable
► 6.3mm Pin hole

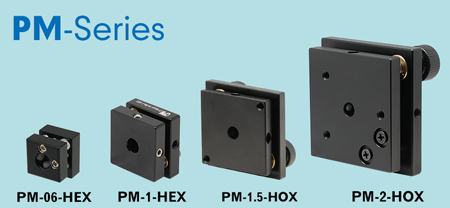

PM is 2-Axis adjustment of the universal mirror mount.
With the structural optimization, it can meet the adjustment in the small space.
All Mirror mount has a diameter 6.3mm hole which can combined with PMH Lens Mount.

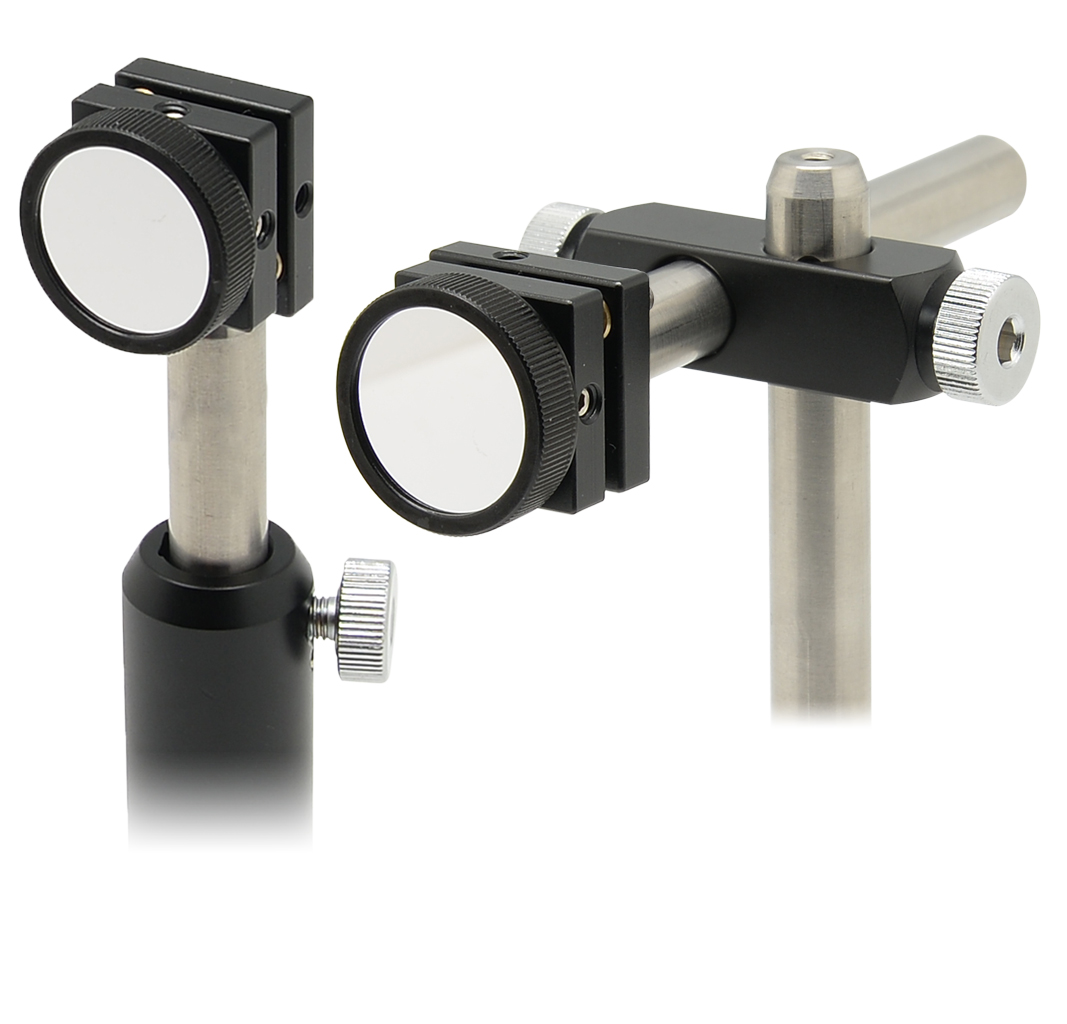

M4X0.7P thread at the bottom of the frame can combine with post.

Application





Part Number/Description Delivery Price Qty. Add to Cart
M-PM-06-HEX

Ø0.6" Optics/100TPI Precision Screw/No Knob

In Stock
US$33.79
M-PM-1-HEX

Ø1.0" Optics/100TPI Precision Screw/No Knob

In Stock
US$32.76
M-PM-1.5-HOX

Ø1.5" Optics/100TPI Precision Screw/Knob

In Stock
US$36.21
M-PM-2-HOX

Ø2.0" Optics/100TPI Precision Screw/Knob

In Stock
US$41.38
