Specifications


 • Optics Diameter : Ø 25.4mm

 • Angular Range : θz:360°

 • Resolution : 1/30 °

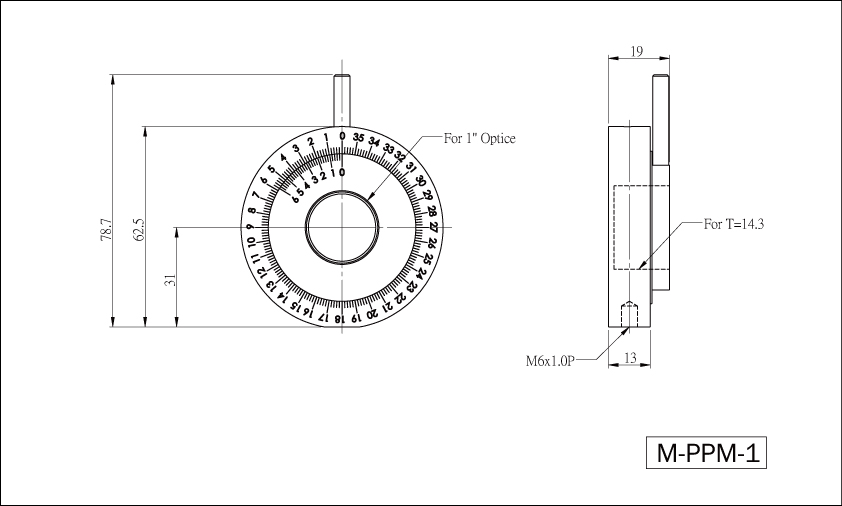

Drawings

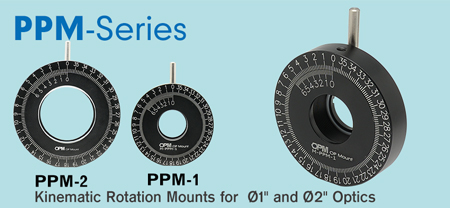

Polarizer Rotary Mounts

PPM-series

360 degrees basic

◆ 360° Continuous Rotation

◆ Lock  Function

◆ Ø1.0"  and  Ø2.0"  Option

◆ Lock Function

◆ Resoulation 1/30°

◆ Inculed One Retaining Ring and One Teflon Washer Ring










Specifications


• Optics Diameter : Ø 25.4mm

• Angular Range : θz:360° θx；θy  ±3°

• Resolution : θz: 1°     θx；θy  0,4°

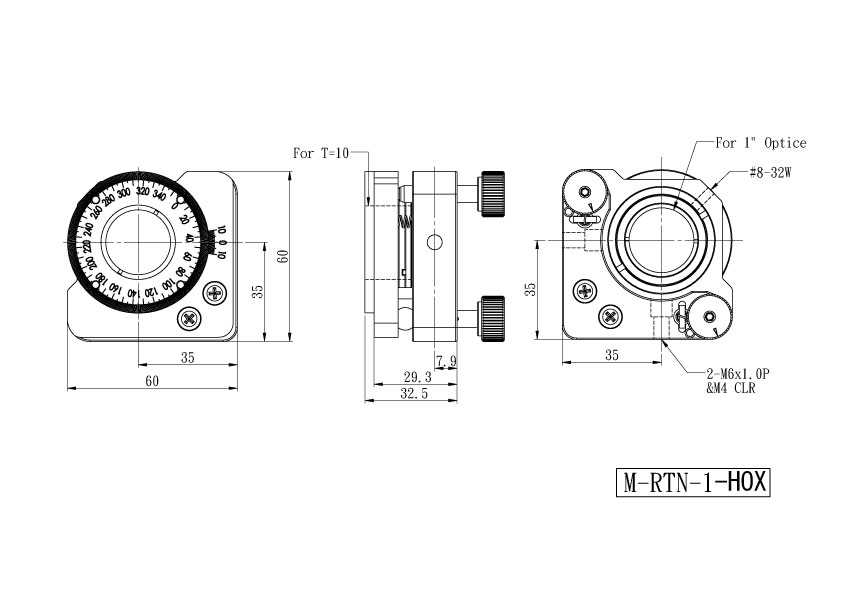

Drawings

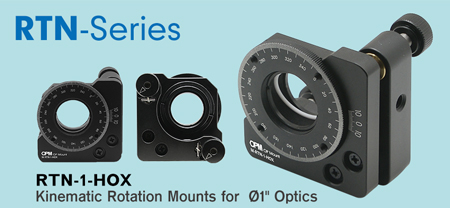

Manual Kinematic Rotation Mounts

RTN-1-series

360 degrees 3-Axis

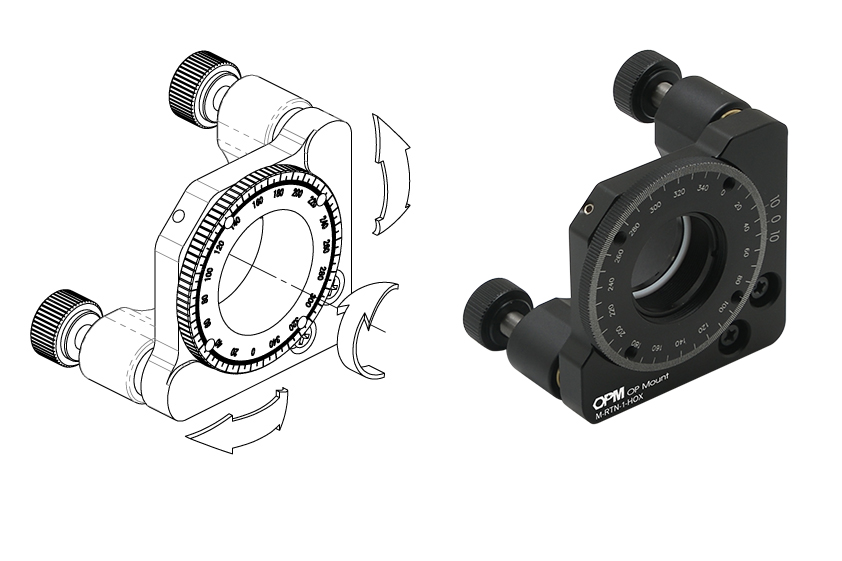

M-RTN-1-HOX belongs to a three-axis adjustment mount, which, in addition to its 360-degree rotation along the optical axis, also features pitch and yaw adjustments.

Part Number/Description Delivery Price Qty. Add to Cart
M-PPM-1

Ø 1.0" / 360° Continuous Rotation /Lock Function
In Stock
US$75.86
M-PPM-2

Ø 2.0" / 360° Continuous Rotation /Lock Function
In Stock
US$134.48
M-RTN-1-HOX

Ø 1.0" / 2-Axis Adjustable / Roatation Mount / Lock Function
In stock
US$198.28
