Specifications
Item Number Optics Diameter Thickness
ALH-2 0.8mm 5.0mm
ALH-3 76.2mm 5.0mm
ALH-5  127mm 6.5mm

Drawings



Adjustable Lens Mounts

ALH-series

V-Shaped Provides Clamping Force
◆ Locking Screw with V-Shaped  Provides Clamping Force
◆ Clamped 10mm  To 128mm Range
◆ Can be Mounted Square And Rectangular Optical Elements
◆ ALH-XP  Suitable For Mounting Round Lenses
◆ ALH  Suitable  For Cylindrical  Lenses and Rectangular Optical Element

Part Number/Description Delivery Price Qty. Add to Cart

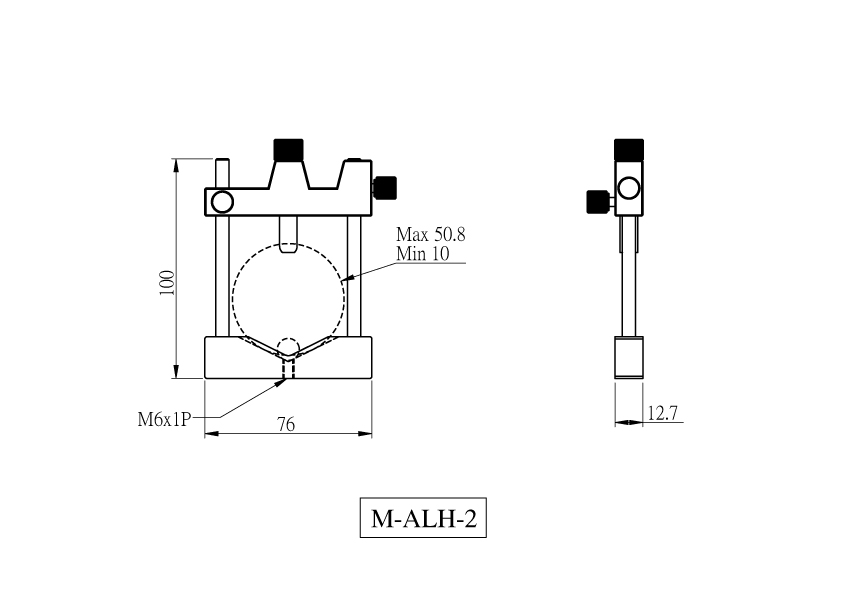

M-ALH-2

Up To Ø52.0mm/V-Clamp

In Stock
US$48.28

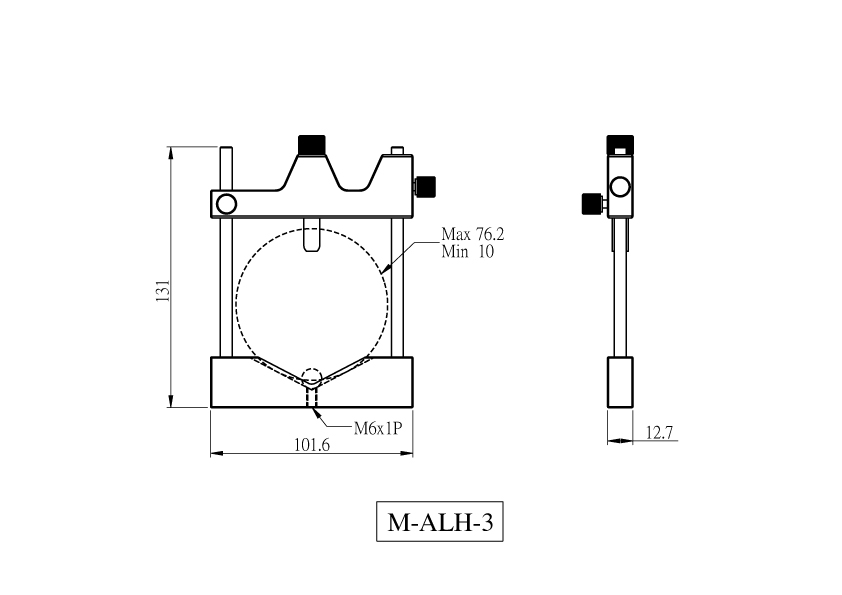

M-ALH-3

Up To Ø76.2mm/V-Clamp

In Stock
US$58.62

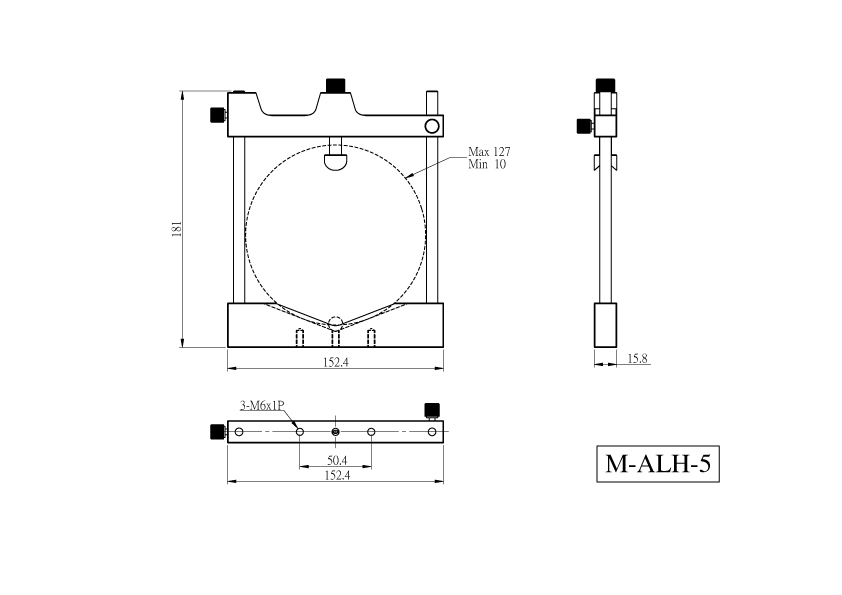

M-ALH-5

Up To Ø127.0mm/V-Clamp

In Stock
US$137.93
