Specification

PartNumber	Length (cm)	Width (cm)	T (cm)
PartNumber	Length (cm)	Width (cm)	T (cm)
M-BRS3-3045-05	30	45	5
M-BRS3-3060-05	30	60	5
M-BRS3-4560-05	45	60	5
M-BRS3-6060-05	60	60	5
M-BRS3-6075-05	60	75	5
M-BRS3-6090-05	60	90	5
M-BRS3-7590-05	75	90	5

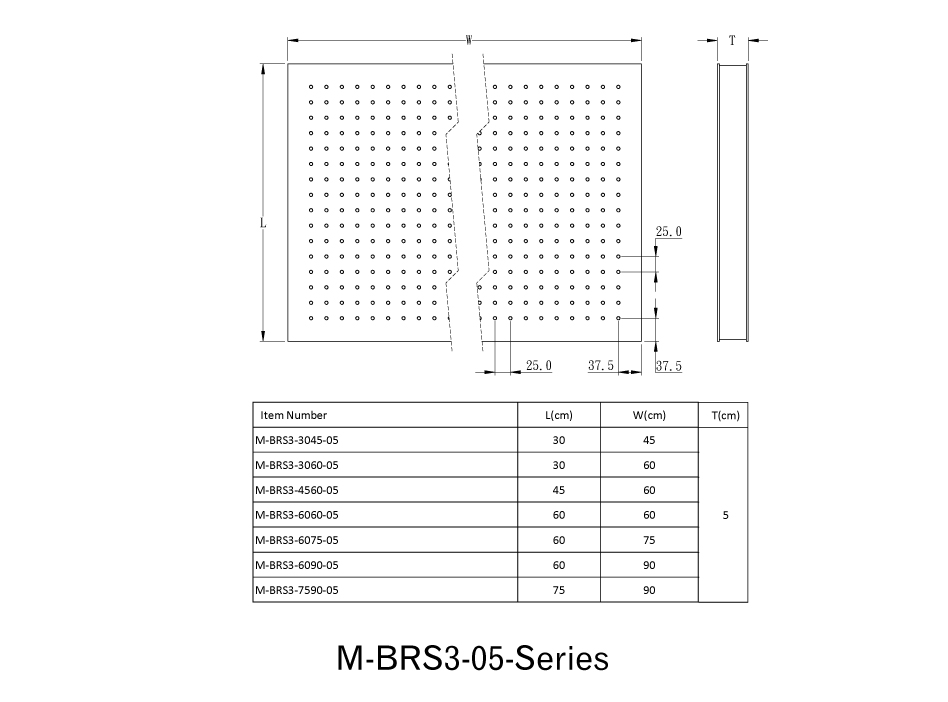

2D-Drawing

Zoom In

Honeycomb Breadboards

BRS3-T5-series

304 Grade Stainless Steel Top Plate

Thickness:5 cm

In a non-magnetic usage environment, we employ SUS304 stainless steel plates with a thickness of 4 millimeters for the BRS series optical platforms. These platforms are designed through the combination of steel plates and metal honeycomb, encompassing various technical indicators such as stress relief, high-strength compression, seismic coefficient comparison, culminating in an integrated structure and comprehensive broadband seismic analysis data. Each platform is subjected to matte surface treatment and grinding control, ensuring a flatness tolerance of 0.1 millimeter per 60 square centimeters.

These platforms feature standard array holes with M6x1 threads, with an array hole-to-platform edge distance of 1.5 inches (37.5 millimeters).

• Flatness: 0.1mm/60cm²

• Size Range: 30X45–75X90 cm

• Thickness: 5 cm

Related Products


Stationary Optical Table Supports	Optical Vibration Isolators (Below 1.2 meters)	Optical Vibration Isolators (Over 1.2 meters)	Aluminum Breadboard

Products	Part Number/Description	Delivery	Price	Qty.	Add to Cart
	M-BRS3-3045-05 30x45x(t)5 cm / M6-Tap	Contact us	US$708.38		Inquiry
	M-BRS3-3060-05 30x60x(t)5 cm / M6-Tap	Contact us	US$761.69		Inquiry
	M-BRS3-4560-05 45x60x(t)5 cm / M6-Tap	Contact us	US$870.51		Inquiry
	M-BRS3-6060-05 60x60x(t)5 cm / M6-Tap	Contact us	US$1011.97		Inquiry
	M-BRS3-6075-05 60x75x(t)5 cm / M6-Tap	Contact us	US$1178.81		Inquiry
	M-BRS3-6090-05 60x90x(t)5 cm / M6-Tap	Contact us	US$1269.49		Inquiry
	M-BRS3-7590-05 75x90x(t)5 cm / M6-Tap	Contact us	US$1450.85		Inquiry
