Specification
 PartNumber
Length
(cm)
 Width
(cm)
T
(cm)
 M-BRS4-120150-30 120 150 30
 M-BRS4-120180-30 120 180 30
 M-BRS4-100200-30 100 200 30
 M-BRS4-120200-30 120 200 30
 M-BRS4-120240-30 120 240 30
 M-BRS4-120300-30 120 300 30

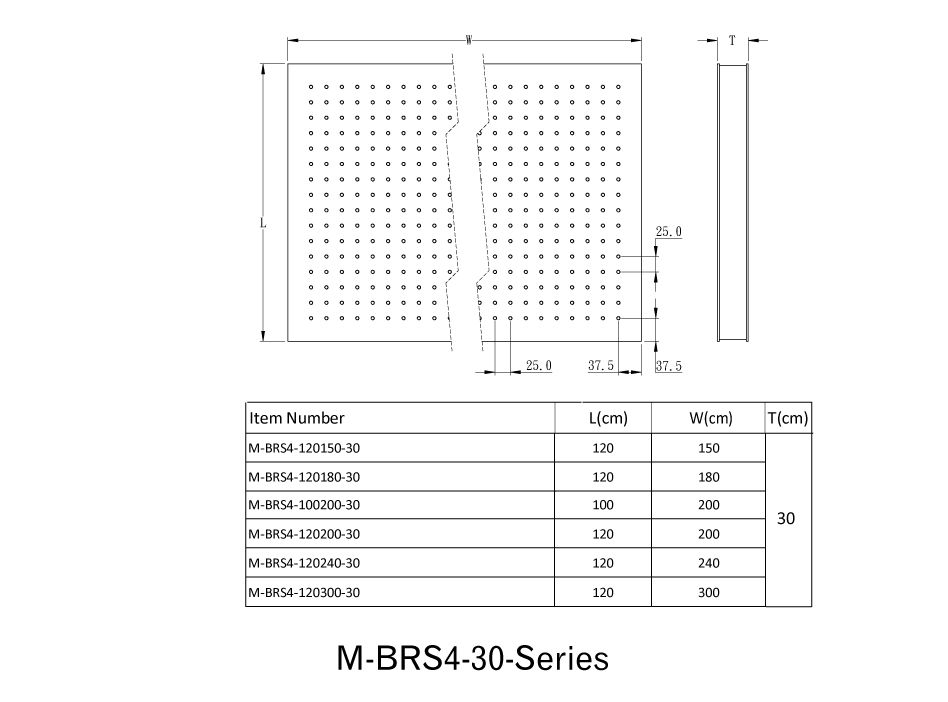

2D-Drawing
Zoom In


Honeycomb Breadboards

BRS4-T30-series

Thickness:30 cm

Utilizing SUS430 stainless steel plates with a thickness of 3.5 millimeters, the BRS series optical platforms are constructed through the integration of steel plates and metal honeycomb. They encompass various technical indicators including stress relief, high-strength compression, seismic coefficient comparison, resulting in an integrated structure and comprehensive broadband seismic analysis data. Each platform is equipped with a matte surface treatment and grinding control, ensuring flatness tolerance within 0.1 millimeter per 60 square centimeters.

These platforms feature standard array holes with M6x1 threads, with an array hole-to-platform edge distance of 1.5 inches (37.5 millimeters).

• Flatness: 0.1mm/60cm2

• Size Range: 120X150–120X300 cm

• Thickness: 30 cm

Related Products



Part Number/Description Delivery Price Qty. Add to Cart
M-BRS4-100200-30

100x200x(t)30 cm / M6-Tap
Contact us
US$3653.57
M-BRS4-120150-30

120x150x(t)30 cm / M6-Tap
Contact us
US$3392.86
M-BRS4-120180-30

120x180x(t)30 cm / M6-Tap
Contact us
US$3692.86
M-BRS4-120200-30

120x200x(t)30 cm / M6-Tap
Contact us
US$3889.29
M-BRS4-120240-30

120x240x(t)30 cm / M6-Tap
Contact us
US$4464.29
M-BRS4-120300-30

120x300x(t)30 cm / M6-Tap
Contact us
US$5285.71
