Specification
 PartNumber
Length
(cm)
Width
(cm)
T
(cm)
 M-BRS4-75120-20 75 120 20
 M-BRS4-9090-20 90 90 20
 M-BRS4-90120-20 90 120 20
 M-BRS4-120120-20 120 120 20
 M-BRS4-90150-20 90 150 20
 M-BRS4-90180-20 90 180 20
 M-BRS4-120150-20 120 150 20
 M-BRS4-120180-20 120 180 20
 M-BRS4-100200-20 100 200 20
 M-BRS4-120200-20 120 200 20
 M-BRS4-120240-20 120 240 20
 M-BRS4-120300-20 120 300 20

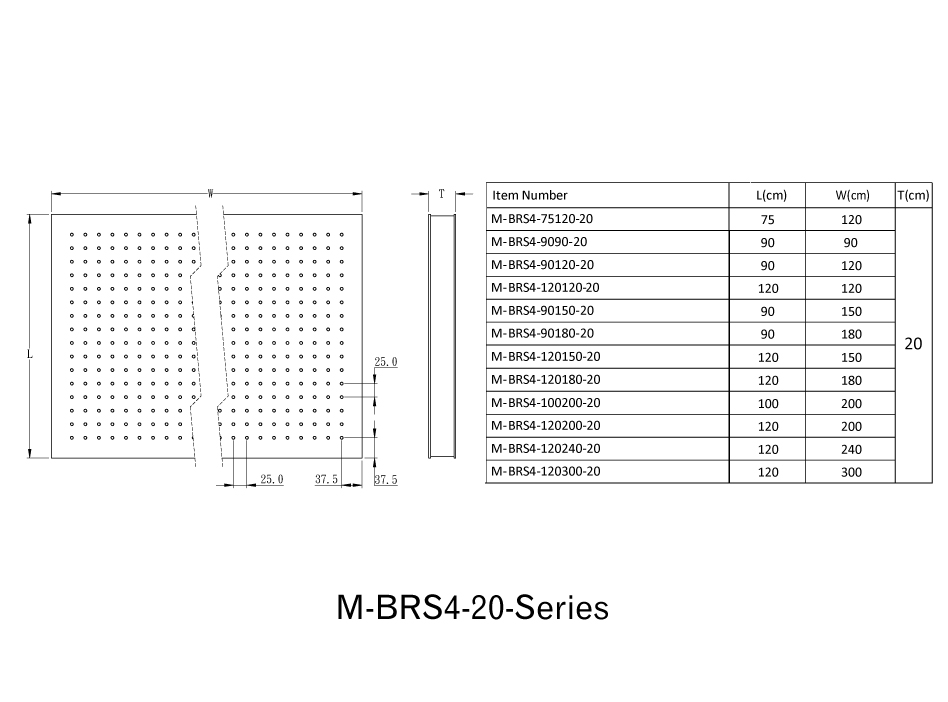

2D-Drawing
Zoom In


Honeycomb Breadboards

BRS4-T20-series

Thickness:20 cm

Utilizing SUS430 stainless steel plates with a thickness of 3.5 millimeters, the BRS series optical platforms are engineered through the fusion of steel and metal honeycomb. They incorporate various technical indicators including stress relief, high-strength compression, seismic coefficient comparison, resulting in an integrated structure with comprehensive broadband seismic analysis data. Each platform undergoes matte surface treatment and grinding control, ensuring a flatness tolerance of 0.1 millimeter per 60 square centimeters.

These platforms feature standard array holes with M6 (1/4-20 threads), with an array hole-to-platform edge distance of 1.5 inches (37.5 millimeters).

• Flatness: 0.1mm/60cm2

• Size Range: 75X120–120X300 cm

• Thickness: 20 cm

Related Products




Part Number/Description Delivery Price Qty. Add to Cart
M-BRS4-75120-20

75x120x(t)20 cm / M6-Tap

Contact us
US$2232.14
M-BRS4-9090-20

90x90x(t)20 cm / M6-Tap

Contact us
US$2107.14
M-BRS4-90120-20

90x120x(t)20 cm / M6-Tap

Contact us
US$2553.57
M-BRS4-90150-20

90x150x(t)20 cm / M6-Tap

Contact us
US$2785.71
M-BRS4-90180-20

90x180x(t)20 cm / M6-Tap

Contact us
US$2964.29
M-BRS4-100200-20

100x200x(t)20 cm / M6-Tap

Contact us
US$3500.00
M-BRS4-120120-20

120x120x(t)20 cm / M6-Tap

Contact us
US$2785.71
M-BRS4-120150-20

120x150x(t)20 cm / M6-Tap

Contact us
US$3107.14
M-BRS4-120180-20

120x180x(t)20 cm / M6-Tap

Contact us
US$3535.71
M-BRS4-120200-20

120x200x(t)20 cm / M6-Tap

Contact us
US$3750.00
M-BRS4-120240-20

120x240x(t)20 cm / M6-Tap

Contact us
US$4053.57
M-BRS4-120300-20

120x300x(t)20 cm / M6-Tap

Contact us
US$5000.00
