  7. Laser IR CARD

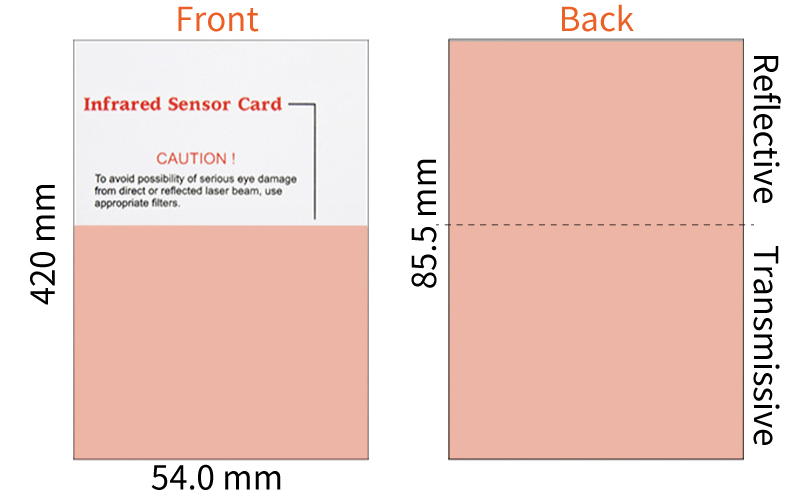

• 2-in-1 card - Reflective & Transmissive (see laser from back side)
• High sensitivity down to uW/cm2 level in dark
• Large active region up to 85.5 mm x 54 mm
• Edge-to-edge design for easy alignment
• Durable and portable ISO standard PVC card
• Wide wavelength coverage from 800 to 1600 nm

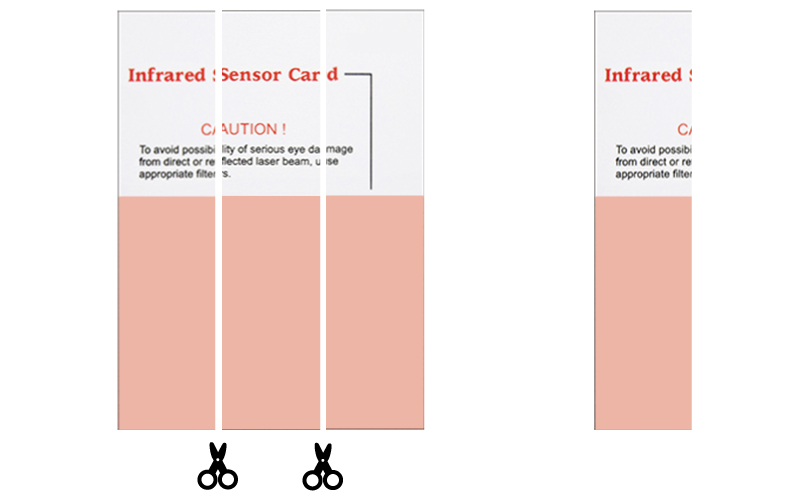

• Could be cut into small pieces for use as showed left

Specification
Sensing Wavelength Range
800~1600nm
Emission Wavelength Range
520~670nm
Physical Dimension
86 mm x 54 mm
Active Region
42 mm x 54 mm(transmissive)
43.5mm x 54 mm(reflective)
Substrate Material
ISO standard PVC card


Part Number/Description Delivery Price Qty. Add to Cart
VCR-HT

Laser IR CARD / Excitation Range 800-1600nm,especially at 950,980,1064,1500nm
In Stock
US$144.83
