Specification
 PartNumber
Length
(cm)
Width
(cm)
T
(cm)
 M-BRS4-3045-05 30 45 5
 M-BRS4-3060-05 30 60 5
 M-BRS4-4560-05 45 60 5
 M-BRS4-6060-05 60 60 5
 M-BRS4-6075-05 60 75 5
 M-BRS4-6090-05 60 90 5
 M-BRS4-7590-05 75 90 5



2D-Drawing
Zoom In

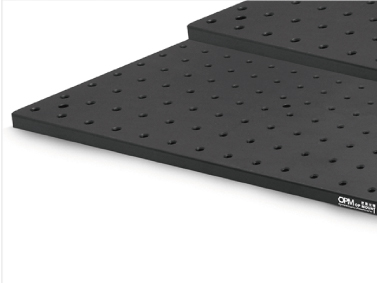

Honeycomb Breadboards

BRS4-T5-series

Thickness:5 cm

The use of SUS430 stainless steel plates with a thickness of 3.5 millimeters in the BRS series optical platforms combines various technical indicators such as stress release, high-strength compression, seismic coefficient comparison, and ultimately presents an integrated structure and comprehensive broadband seismic analysis data. Each platform is subjected to a matte surface treatment and grinding control with a flatness tolerance of 0.1 millimeter per 60 square centimeters.

These platforms feature standard array holes with M6 (1/4-20 threads), with an array hole-to-platform edge distance of 1.5 inches (37.5 millimeters).

• Flatness: 0.1mm/60cm2

• Size Range: 30X45–75X90 cm

• Thickness: 5 cm

Related Products




Part Number/Description Delivery Price Qty. Add to Cart
M-BRS4-3045-05

30x45x(t)5 cm / M6-Tap

Contact us
US$578.18
M-BRS4-3060-05

30x60x(t)5 cm / M6-Tap

Contact us
US$621.80
M-BRS4-4560-05

45x60x(t)5 cm / M6-Tap

Contact us
US$705.92
M-BRS4-6060-05

60x60x(t)5 cm / M6-Tap

Contact us
US$830.42
M-BRS4-6075-05

60x75x(t)5 cm / M6-Tap

Contact us
US$957.92
M-BRS4-6090-05

60x90x(t)5 cm / M6-Tap

Contact us
US$1025.15
M-BRS4-7590-05

75x90x(t)5 cm / M6-Tap

Contact us
US$1169.66
