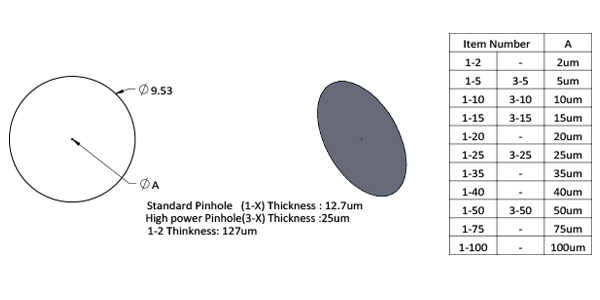

High-Power Precision Pinholes

Features

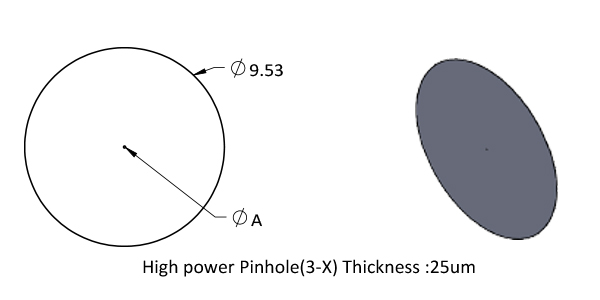

• These high-power precision pinholes are designed to withstand high power densities, up to 10 W /  mm 2 , CW @ 10.6 µm for CW lasers. These are designed to be used with the beam incident on the gold-plated side. We recommend aligning the pinhole at low power, increasing the laser to full power after ensuring good throughput.

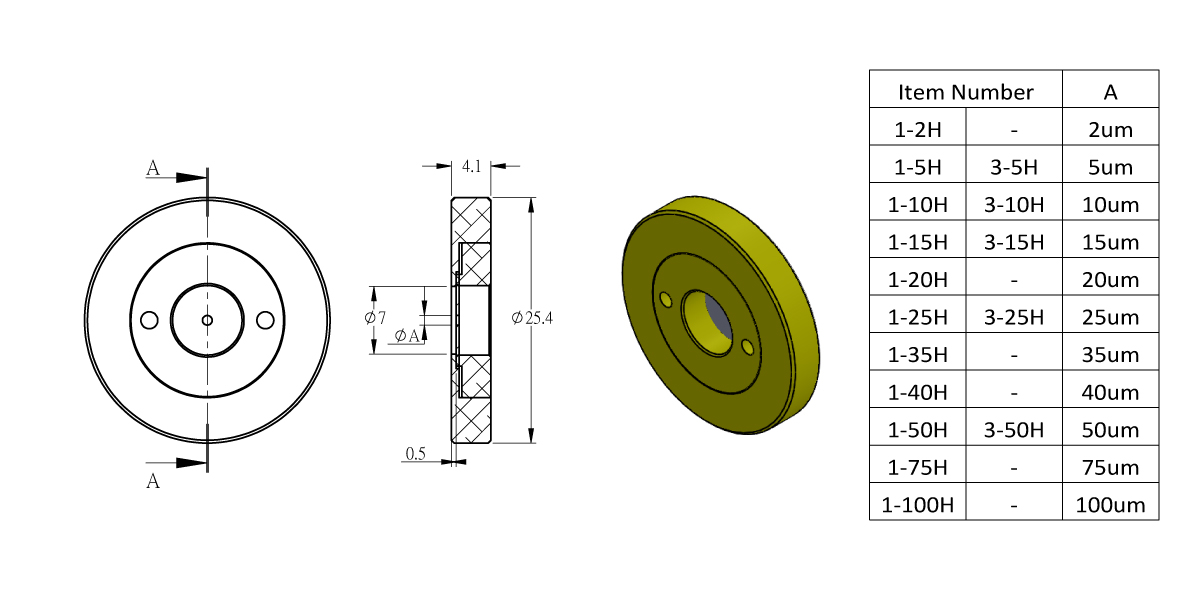

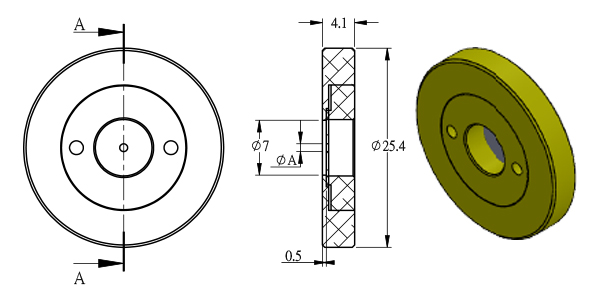

• Another provision contained jig version.

• Related Products: spatial filter (SF-1T), pinhole seat (APH-1)

※ It should be noted that when installing the precision pinhole, please use soft tweezers to operate, because the pinhole is very thin, it is very easy to cause the pinhole to fail to work normally due to deformation.。
