Standard Precision Pinholes

• These precision pinholes are used in holography and other applications for the spatial intensity of the laser beam changes are required, they are also widely used in the spatial filtering system, the effective elimination of Gaussian beam intensity changes.
• Another provision contained jig version.
• Related Products: spatial filter (SF-1T), pinhole seat (APH-1)

Standard Precision Slits

• Different slits are available for different materials. Different slits are also available for multiple slits in one foil. Customized housings are also available.
• Another provision contained jig version.
specifications

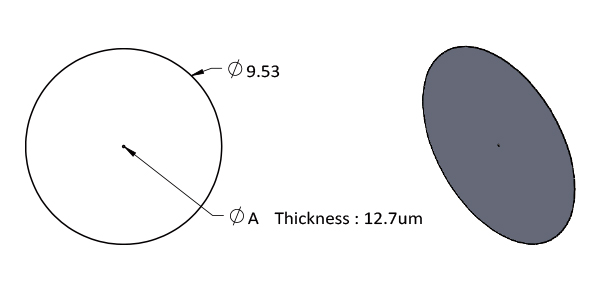

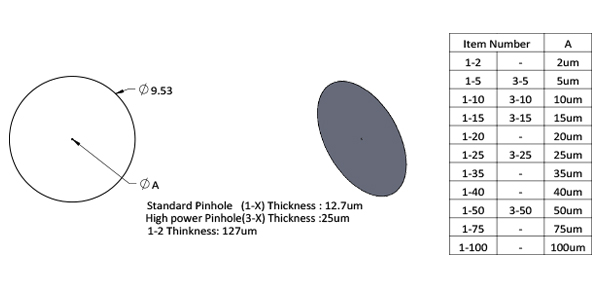

Click to Enlarge

Material : ※A 300 Series Stainless Steel +(BeCu or Ni)
Part Number Pinhole size Diameter Tolerance Diameter Thickness
1-2 2um ±0.5um 9.53mm 127um

Material : 300  Series Stainless Steel
Part Number Pinhole size Diameter Tolerance Diameter Thickness
1-5 5um ±1.0um 9.53mm 12.7um
1-10 10um ±1.0um
1-15 15um ±1.5um
1-20 20um ±2.0um
1-25 25um ±2.0um
1-35 35um ±2.0um
1-40 40um ±3.0um
1-50 50um ±3.0um
1-75 75um ±3.0um
1-100 100um ±4.0um

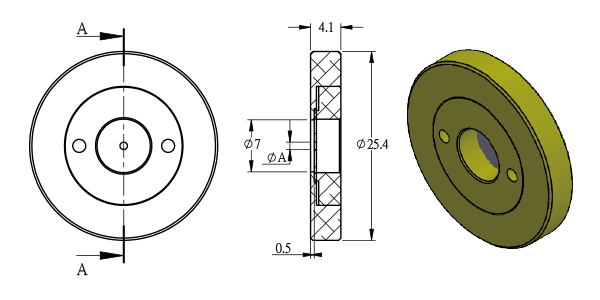

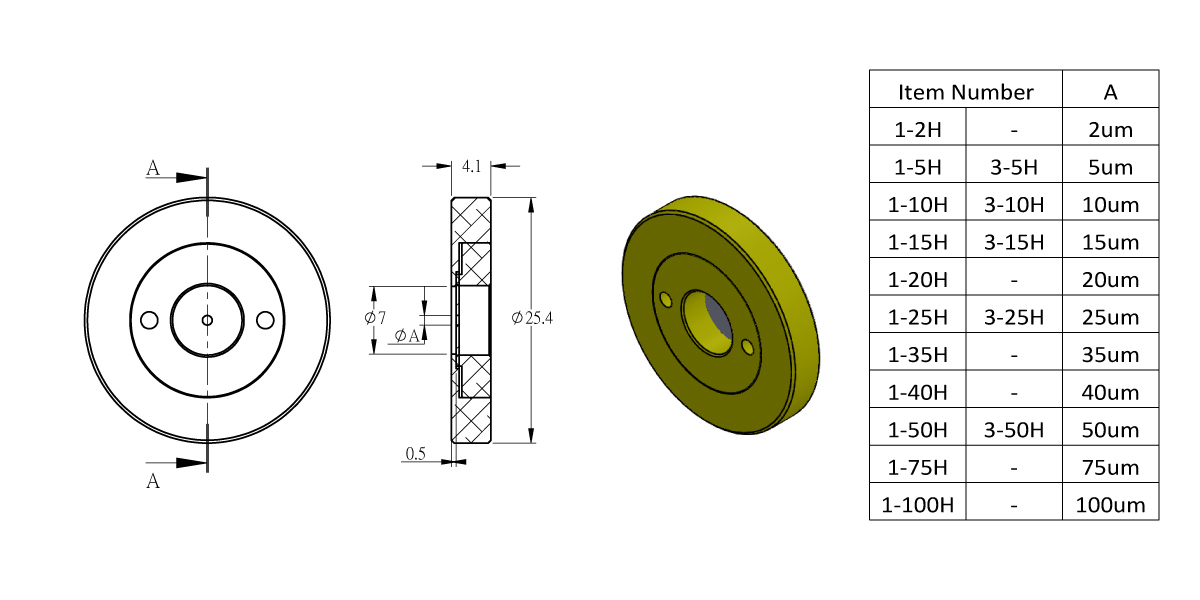

Click to Enlarge
Material: ※ A 300 Series Stainless Steel +(BeCu or Ni)
Part Number Pinhole size Diameter Tolerance Diameter Thickness Frame Thickness
1-2H 2um ±0.5um 25.4mm 127um 4.1mm
Material:300  Series Stainless Steel
Part Number Pinhole size Diameter Tolerance Diameter Thickness Frame Thickness
1-5H 5um ±1.0um 25.4mm 12.7um 4.1mm
1-10H 10um ±1.0um
1-15H 15um ±1.5um
1-20H 20um ±2.0um
1-25H 25um ±2.0um
1-35H 35um ±2.0um
1-40H 40um ±3.0um
1-50H 50um ±3.0um
1-75H 75um ±3.0um
1-100H 100um ±4.0um

Standard Precision Slits

Different slits are available for different materials. Different slits are also available for multiple slits in one foil. Customized housings are also available.
Another provision contained jig version.

 Part Number  Slit Width/Length  Tolerance  Diameter  Thickness  Material
 2-2.5  2.5umx3mm  +1 um/-0.5um  9.53mm  12.7um  300 Series Stainless Steel
 2-5  5umx3mm  ±1um
 2-10  10umx3mm
 2-25  25umx3mm  ±2um
 2-50  50umx3mm
 2-100  100umx3mm  ±4um





Part Number/Description Delivery Price Qty. Add to Cart
1-2.0

Pinhole diameter 3um / Unmounted
In Stock
US$113.33
1-5.0

Pinhole diameter 5um / Unmounted
In Stock
US$60.00
1-10

Pinhole diameter 10um / Unmounted
In Stock
US$60.00
1-15

Pinhole diameter 15um / Unmounted
In Stock
US$46.67
1-20

Pinhole diameter 20um / Unmounted
In Stock
US$46.67
1-25

Pinhole diameter 25um / Unmounted
In Stock
US$46.67
1-30

Pinhole diameter 30um / Unmounted
In Stock
US$46.67
1-35

Pinhole diameter 35um / Unmounted
In Stock
US$46.67
1-40

Pinhole diameter 40um / Unmounted
In Stock
US$46.67
1-50

Pinhole diameter 50um / Unmounted
In Stock
US$46.67
1-75

Pinhole diameter 75um / Unmounted
In Stock
US$46.67
1-100

Pinhole diameter 100um / Unmounted
In Stock
US$46.67
2-2.5

Slit Width 2.5um / Unmounted
In Stock
US$160.00
2-5

Slit Width 5um / Unmounted
In Stock
US$93.33
2-10

Slit Width 10um / Unmounted
In Stock
US$93.33
2-25

Slit Width 25um / Unmounted
In Stock
US$93.33
2-50

Slit Width 50um / Unmounted
In Stock
US$93.33
2-100

Slit Width 100um / Unmounted
In Stock
US$93.33
1-2.0H

Pinhole diameter 3um / Ø1" Mounted Precision Pinhole
In Stock
US$160.00
1-5.0H

Pinhole diameter 5um / Ø1" Mounted Precision Pinhole
In Stock
US$106.67
1-10H

Pinhole diameter 10um / Ø1" Mounted Precision Pinhole
In Stock
US$106.67
1-15H

Pinhole diameter 15um / Ø1" Mounted Precision Pinhole
In Stock
US$93.33
1-20H

Pinhole Diameter 20um / Ø1" Mounted Precision Pinhole
In Stock
US$93.33
1-25H

Pinhole diameter 25um / Ø1" Mounted Precision Pinhole
In Stock
US$93.33
1-30H

Pinhole diameter 30um / Ø1" Mounted Precision Pinhole
In Stock
US$93.33
1-35H

Pinhole diameter 35um / Ø1" Mounted Precision Pinhole
In Stock
US$93.33
1-40H

Pinhole diameter 40um / Ø1" Mounted Precision Pinhole
In Stock
US$93.33
1-50H

Pinhole diameter 50um / Ø1" Mounted Precision Pinhole
In Stock
US$93.33
1-75H

Pinhole diameter 75um / Ø1" Mounted Precision Pinhole
In Stock
US$93.33
1-100H

Pinhole diameter 100um / Ø1" Mounted Precision Pinhole
In Stock
US$93.33
2-2.5H

Slit Width 2.5um / Ø1" Mounted Precision Slit
In Stock
US$172.12
2-5H

Slit Width 5um / Ø1" Mounted Precision Slit
In Stock
US$105.45
2-10H

Slit Width 10um / Ø1" Mounted Precision Slit
In Stock
US$105.45
2-25H

Slit Width 25um / Ø1" Mounted Precision Slit
In Stock
US$105.45
2-50H

Slit Width 50um / Ø1" Mounted Precision Slit
In Stock
US$105.45
2-100H

Slit Width 100um / Ø1" Mounted Precision Slit
In Stock
US$105.45
