PXD / PDJ20 -series

Ø 20mm(0.78 in.) Optical Post Assemblies

• Ø 20mm Posts

• Material: SUS303 Stainless Steel

• M4 (8-32) or M6( 1/4"-20) Taps on Both Ends

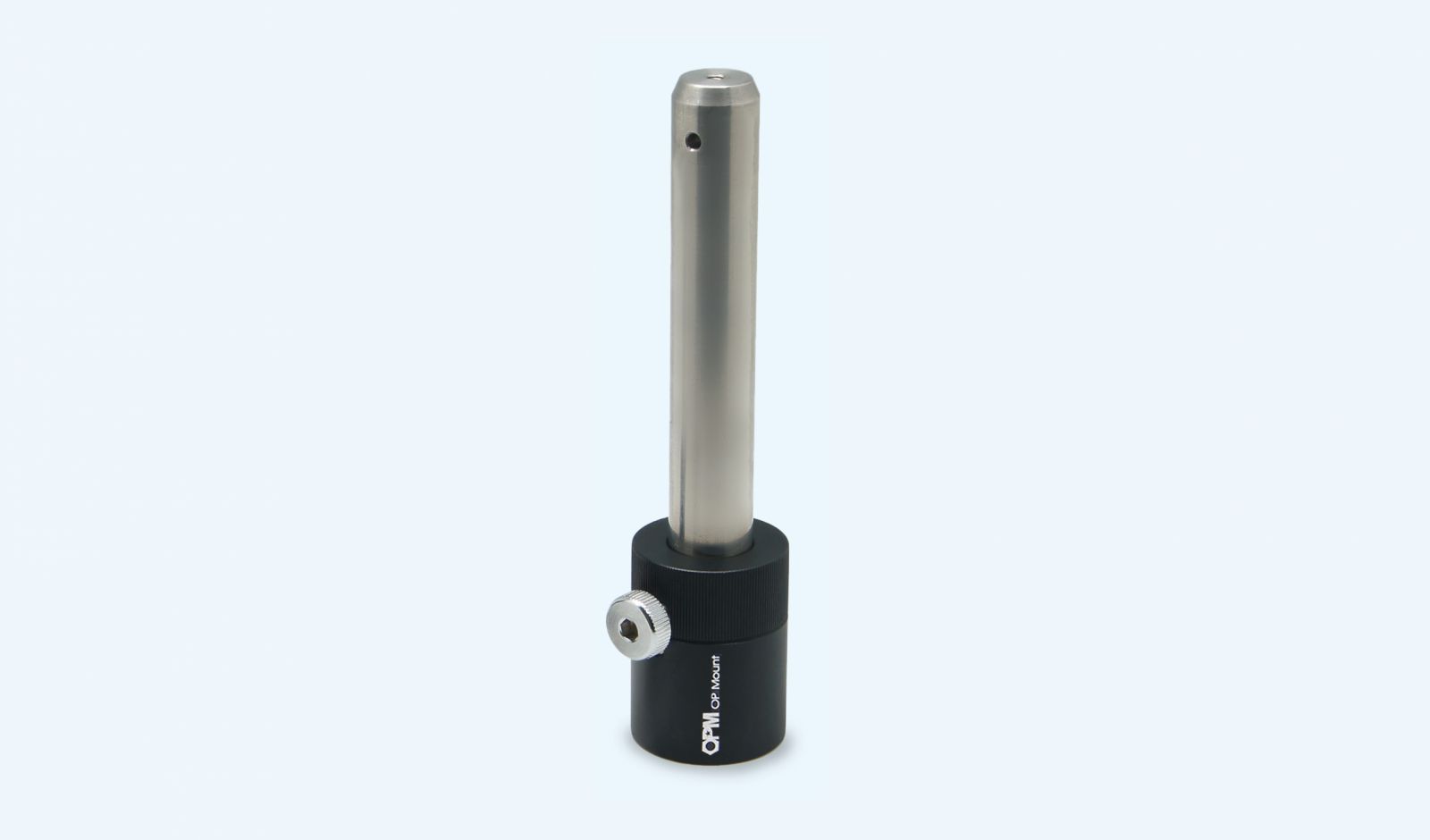

▲ PXD + PHX



PXD
Part Number Diameter Ø Length( mm) Weight(kg)
M-PXD-2 20mm 50.8 0.12
M-PXD-3 76.2 0.18
M-PXD-4 101.6 0.25
M-PXD-5 127 0.31
M-PXD-6 152 0.37
M-PXD-8 203.2 0.5
M-PXD-10 254 0.63



Part Number/Description Delivery Price Qty. Add to Cart
M-PXD-2

Ø20mm Posts / L=2" / M6&M4 Tap

In Stock
US$9.03
M-PXD-3

Ø20mm Posts / L=3" / M6&M4 Tap

In Stock
US$9.60
M-PXD-4

Ø20mm Posts / L=4" / M6&M4 Tap

In Stock
US$10.77
M-PXD-5

Ø20mm Posts / L=5" / M6&M4 Tap

In Stock
US$14.94
M-PXD-6

Ø20mm Posts / L=6" / M6&M4 Tap

In Stock
US$18.24
M-PXD-8

Ø20mm Posts / L=8" / M6&M4 Tap

In Stock
US$22.86
M-PXD-10

Ø20mm Posts / L=250mm / M6&M4 Tap

In Stock
US$26.82
M-PDJ20-30

Ø20mm Posts / L=30mm / M4 Setscrew, M6 Tap

In Stock
US$8.64
M-PDJ20-50

Ø20mm Posts / L=50mm / M4 Setscrew, M6 Tap
In Stock
US$9.30
M-PDJ20-75

Ø20mm Posts / L=75mm / M4 Setscrew, M6 Tap
In Stock
US$10.68
M-PDJ20-100

Ø20mm Posts / L=100mm / M4 Setscrew, M6 Tap

In Stock
US$12.54
M-PDJ20-120

Ø20mm Posts / L=120mm / M4 Setscrew, M6 Tap
In Stock
US$15.60
M-PDJ20-150

Ø20mm Posts / L=150mm / M4 Setscrew, M6 Tap

In Stock
US$17.70
M-PDJ20-200

Ø20mm Posts / L=200mm / M4 Setscrew, M6 Tap

In Stock
US$24.39
