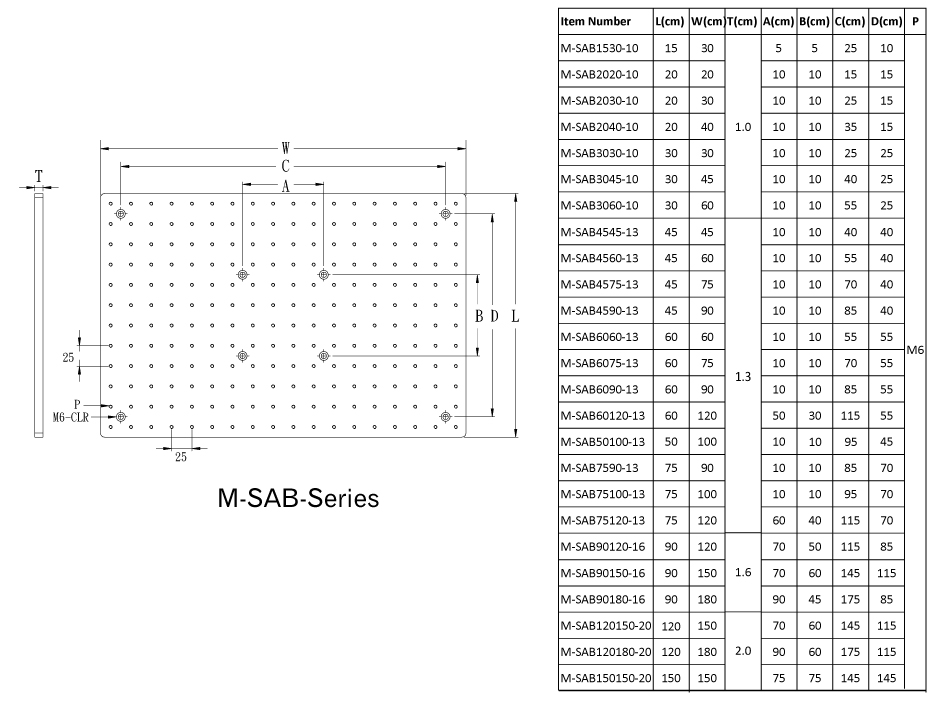

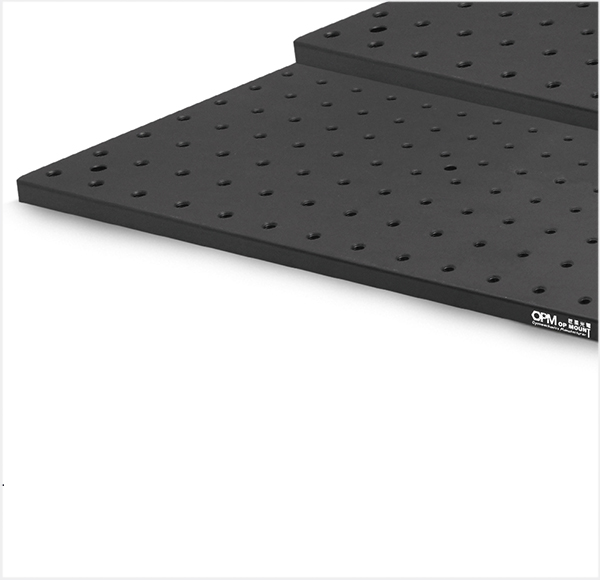

• Made from T6 series aluminum alloy with black anodized treatment, providing excellent hardness. Hole spacing is 25 millimeters or 1 inch, with standard M6 or 1/4x20 thread holes. The array holes are positioned 12.5 millimeters or half an inch from the outer edge, and the threaded holes pass completely through the breadboard, allowing optical components to be installed on both sides of the breadboard at once.
• Each aluminum plate comes with 4 to 8 mounting holes, located at the four corners and the center of the breadboard, making it the optimal choice for non-vibration applications.
• Solid aluminum plate surface with M6 mounting holes.
• Flatness: ±0.15mm/30x30cm2
• Surface: Low-reflectance anodized aluminum working surface.
• Suitable for general and vacuum environments up to 10-4torr.
