| Expan | Model |
Desktop Size
(mm)
|
Height
(mm)
|
Thickness
(mm)
|
||
|---|---|---|---|---|---|---|

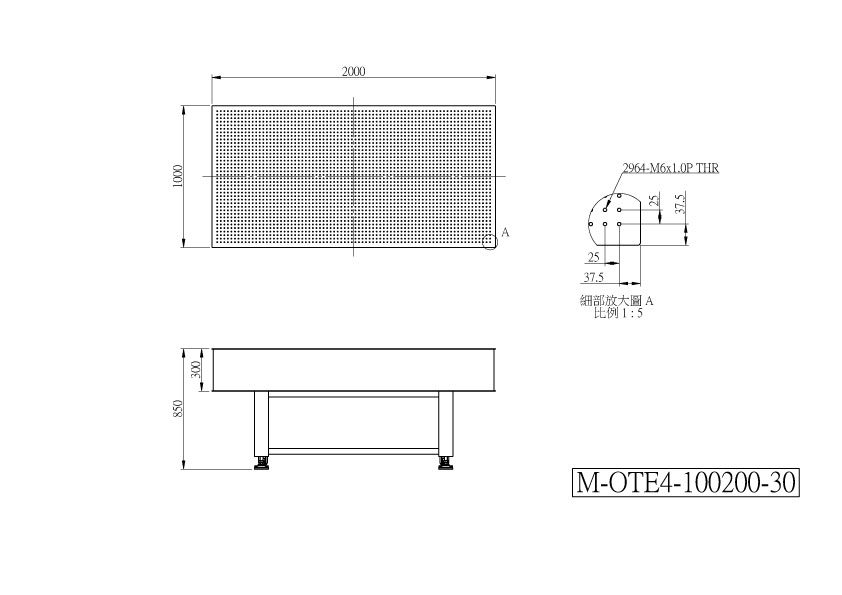

| OTE4-100200-30 | 1000X2000 | 850 | 300 | |||
.jpg) |
||||||

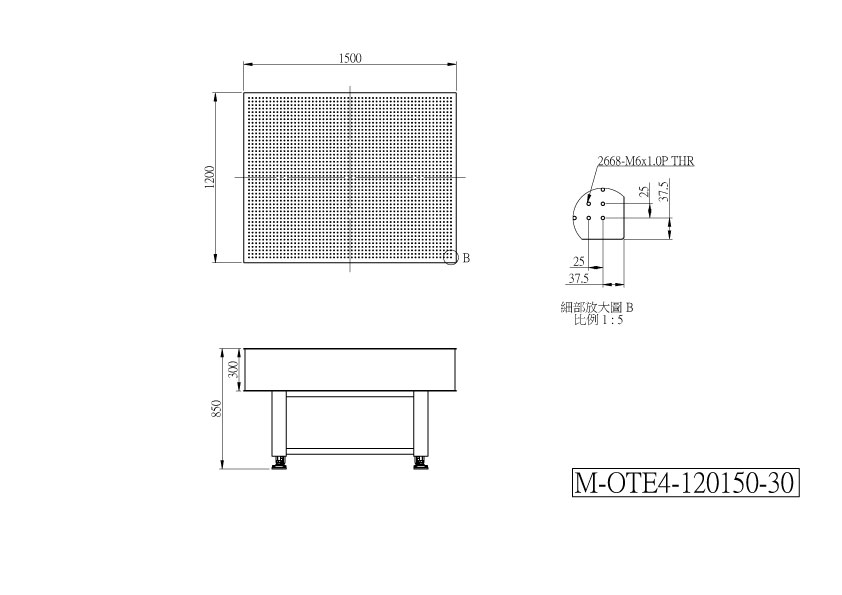

| OTE4-120150-30 | 1200X1500 | 850 | 300 | |||
 |
||||||

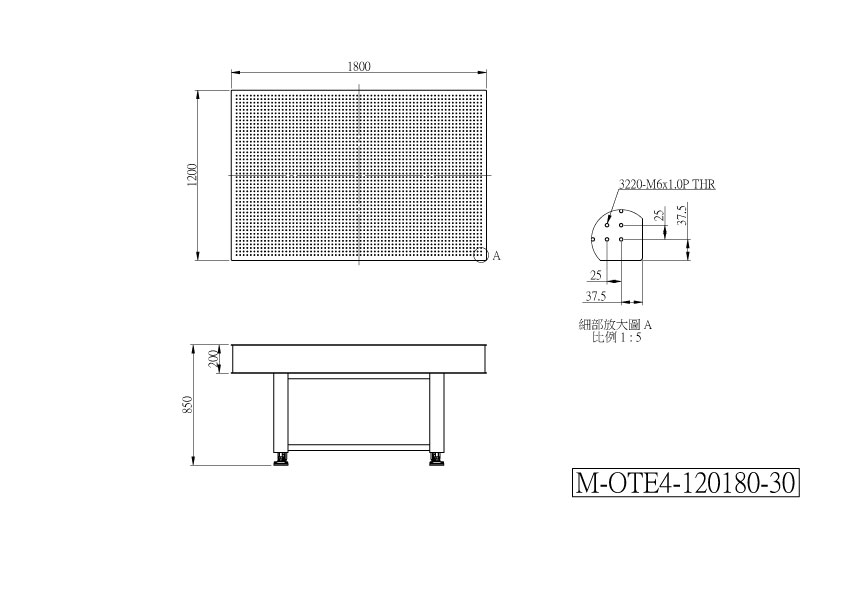

| OTE4-120180-30 | 1200X1800 | 850 | 300 | |||
 |
||||||

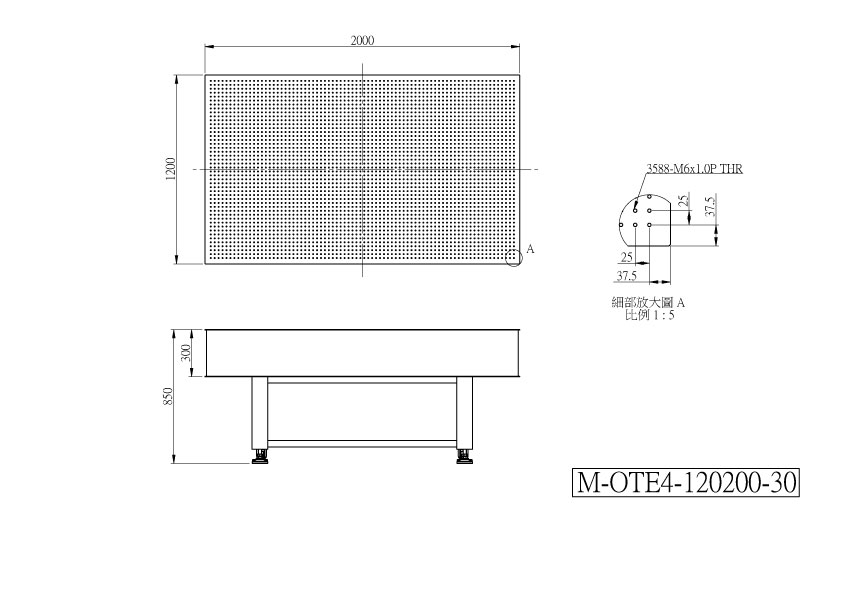

| OTE4-120200-30 | 1200X2000 | 850 | 300 | |||
 |
||||||

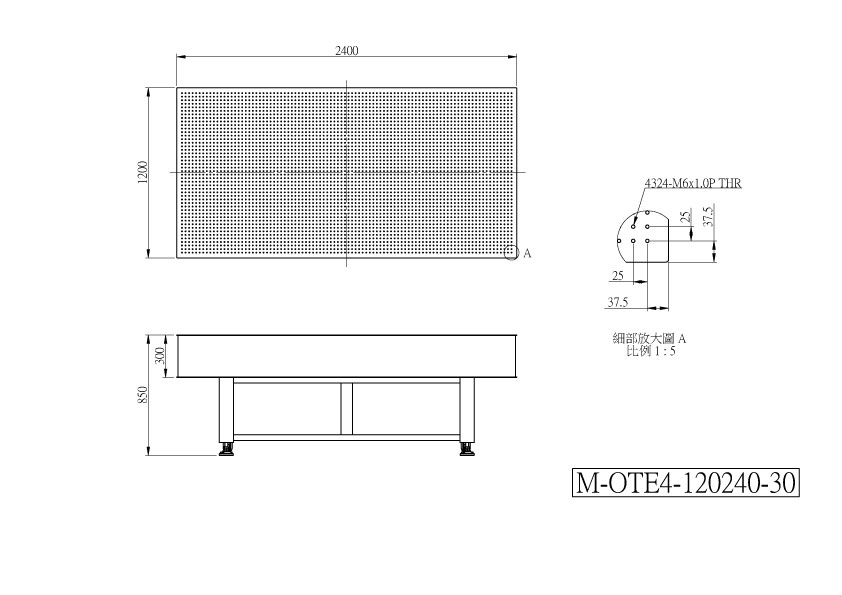

| OTE4-120240-30 | 1200X2400 | 850 | 300 | |||
 |
||||||

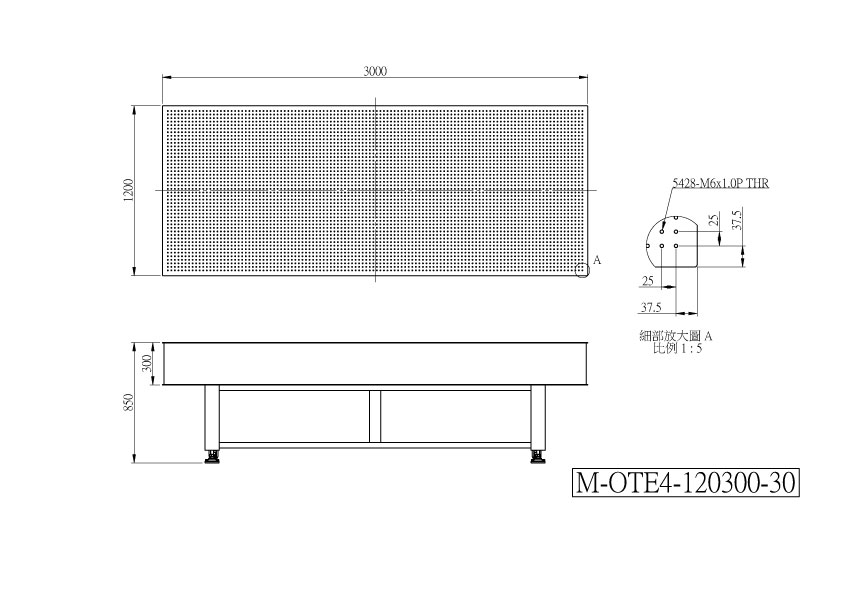

| OTE4-120300-30 | 1200X3000 | 850 | 300 | |||
 |
||||||
Stationary Optical Table Systems
OTE4-T30-series
A Non-Isolating Optical Table provides a stable working platform for various applications, featuring a non-isolating structure suitable for low-sensitivity applications such as general spectroscopy and multimode fiber coupling. The optical platform itself undergoes precise matte finishing and grinding to maintain flatness within 0.1 millimeters per 60 square centimeters.
• These platforms are equipped with standard M6 (1/4"-20 threads) array holes, with the distance between the array holes and the platform edge measuring 1.5 inches (37.5 millimeters).
• They come equipped with SUS430 magnetic optical honeycomb panels, each with a thickness of 300mm. The assembly structure, complete with movable casters, ensures convenient transport and installation.
• Additionally, the heights of these platforms can be customized according to customer needs.
