展開 型號
桌面尺寸
(mm)
高度
(mm)
厚度
(mm)

OTE3-90120-20 900X1200 850 200

OTE3-90150-20 900X1500 850 200

OTE3-90180-20 900X1800 850 200

OTE3-100200-20 1000X2000 850 200

OTE3-120120-20 1200X1200 850 200

OTE3-120150-20 1200X1500 850 200

OTE3-120180-20 1200X1800 850 200

OTE3-120200-20 1200X2000 850 200

OTE3-120240-20 1200X2400 850 200

OTE3-120300-20 1200X3000 850 200

OTE3-150150-20 1500X1500 850 200

Stationary Optical Table Systems

OTE3-T20-series

A Non-Isolating Optical Table provides a stable working platform for various applications, featuring a non-isolating structure suitable for low-sensitivity applications such as general spectroscopy and multimode fiber coupling. The optical platform itself undergoes precise matte finishing and grinding to maintain flatness within 0.1 millimeters per 60 square centimeters.

• These platforms are equipped with standard M6 (1/4"-20 threads) array holes, with the distance between the array holes and the platform edge measuring 1.5 inches (37.5 millimeters).

• They come equipped with SUS304 non-magnetic optical honeycomb panels, each with a thickness of 200mm. The assembly structure, complete with movable casters, ensures convenient transport and installation.

• Additionally, the heights of these platforms can be customized according to customer needs.


Part Number/Description Delivery Price Qty. Add to Cart

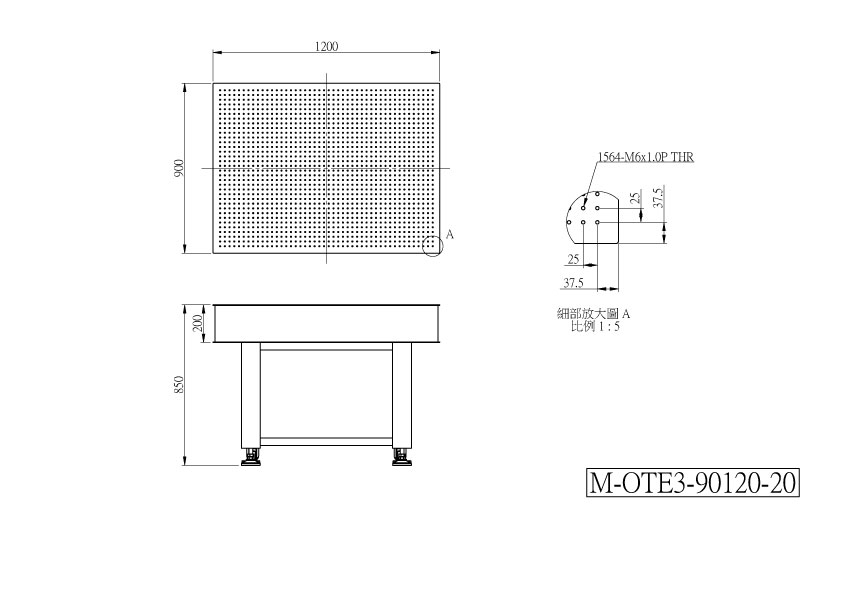

M-OTE3-90120-20

900x1200mm, 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard

Contact us
US$4446.43

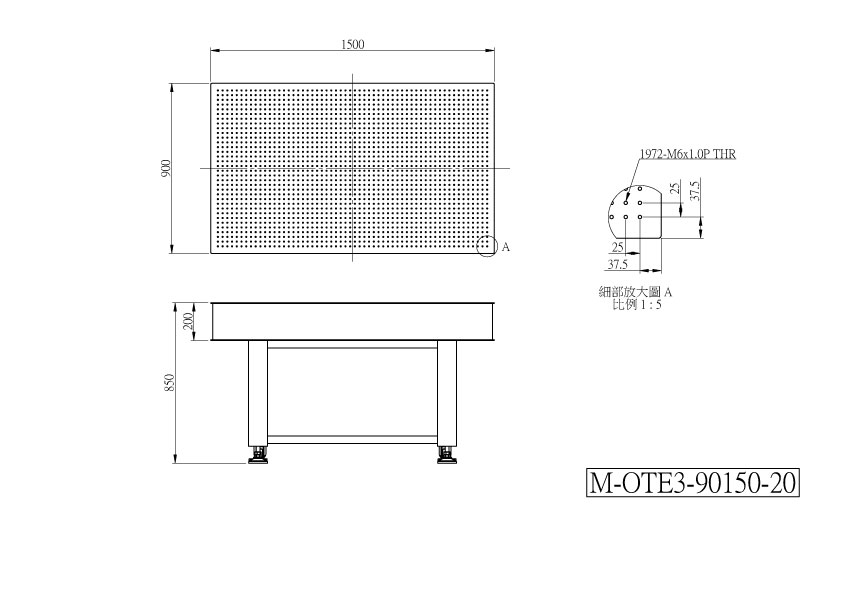

M-OTE3-90150-20

900x1500mm, 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard

Contact us
US$4714.29

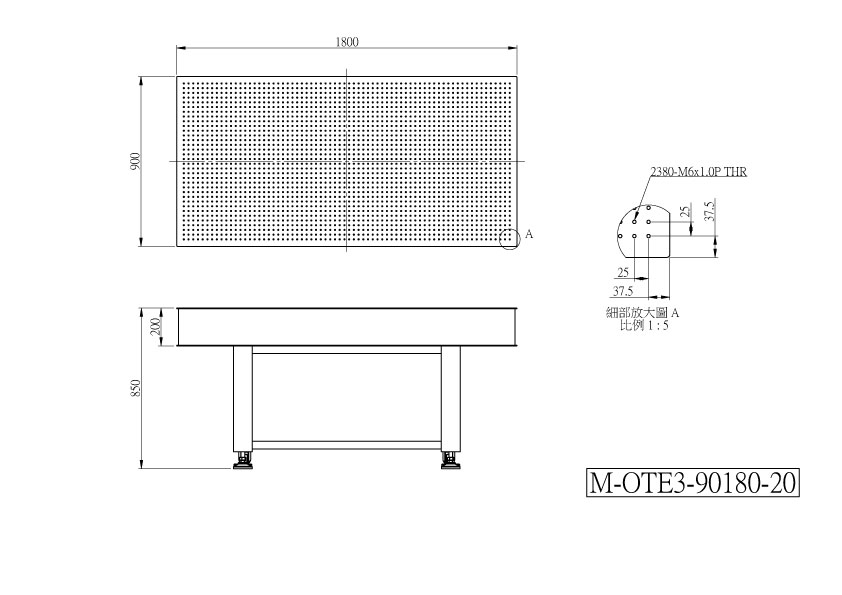

M-OTE3-90180-20

900x1800mm , 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard

Contact us
US$4964.29

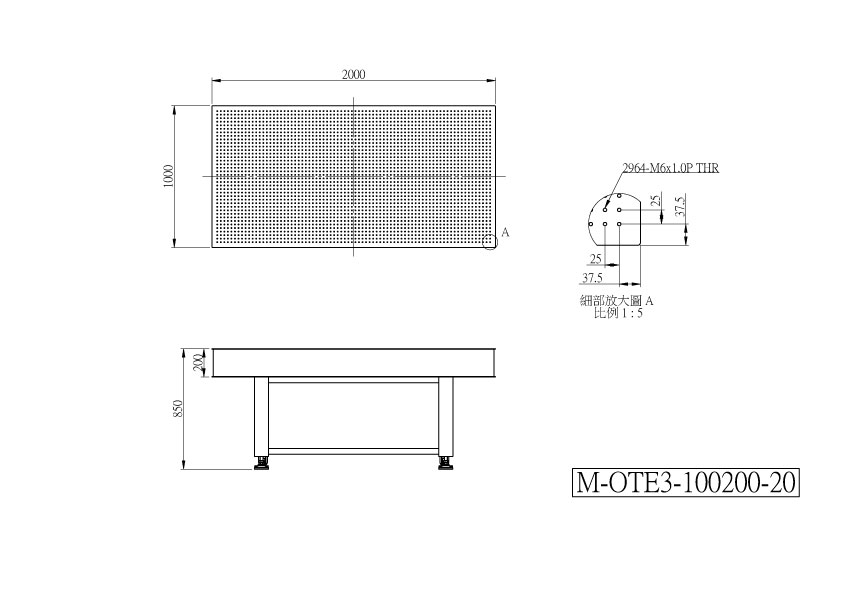

M-OTE3-100200-20

1000x2000mm, 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard

Contact us
US$5660.71

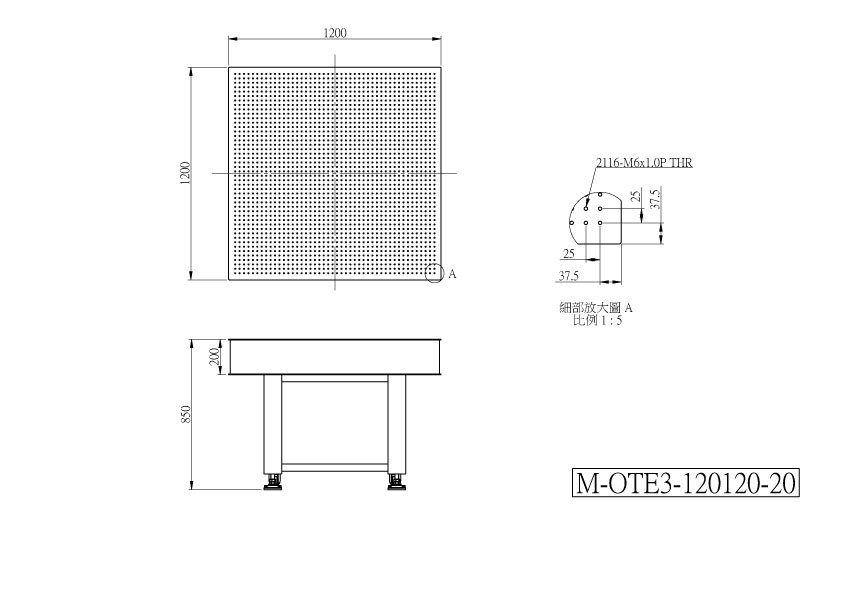

M-OTE3-120120-20

1200x1200mm, 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard

Contact us
US$4714.29

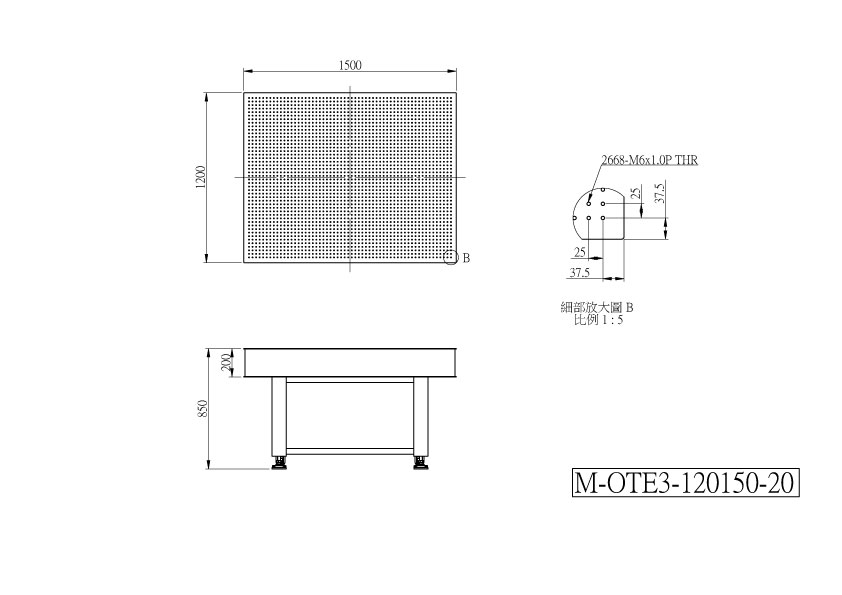

M-OTE3-120150-20

1200x1500mm, 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard

Contact us
US$5160.71

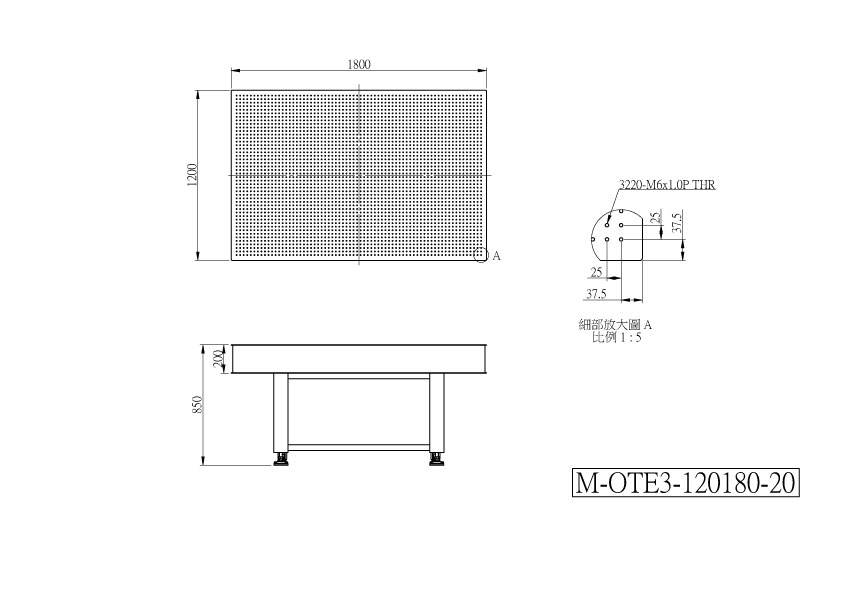

M-OTE3-120180-20

1200x1800mm, 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard

Contact us
US$5732.14

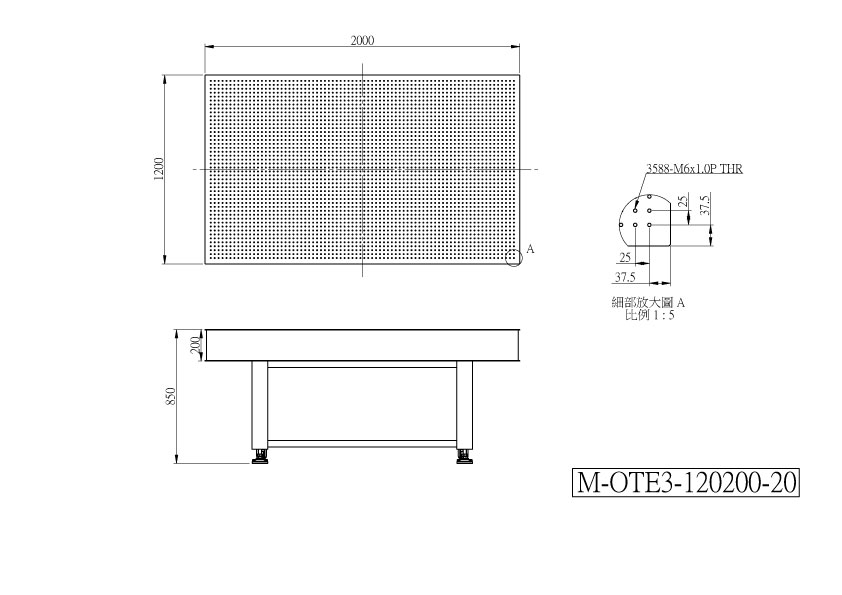

M-OTE3-120200-20

1200x2000mm , 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard

Contact us
US$6000.00

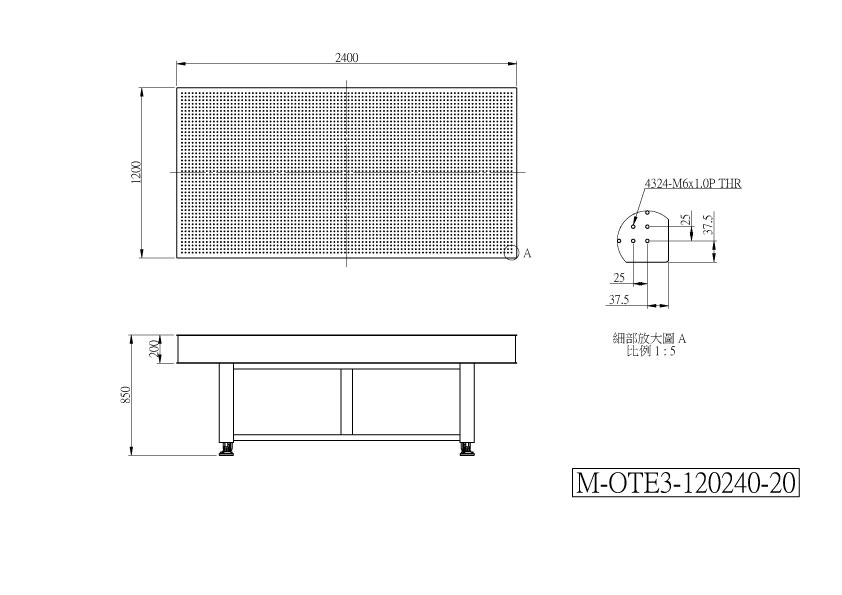

M-OTE3-120240-20

1200x2400mm , 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard

Contact us
US$6428.57

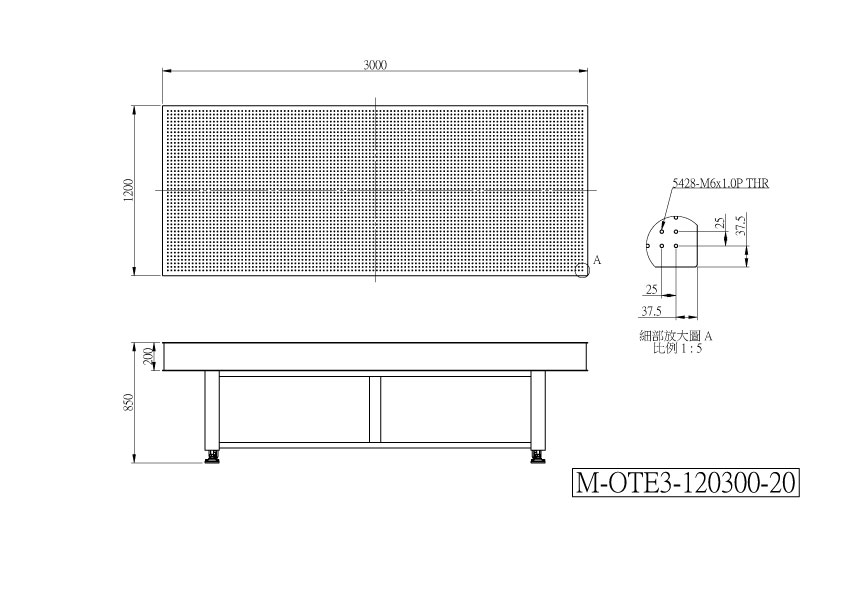

M-OTE3-120300-20

1200x3000mm, 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard

Contact us
US$7607.14

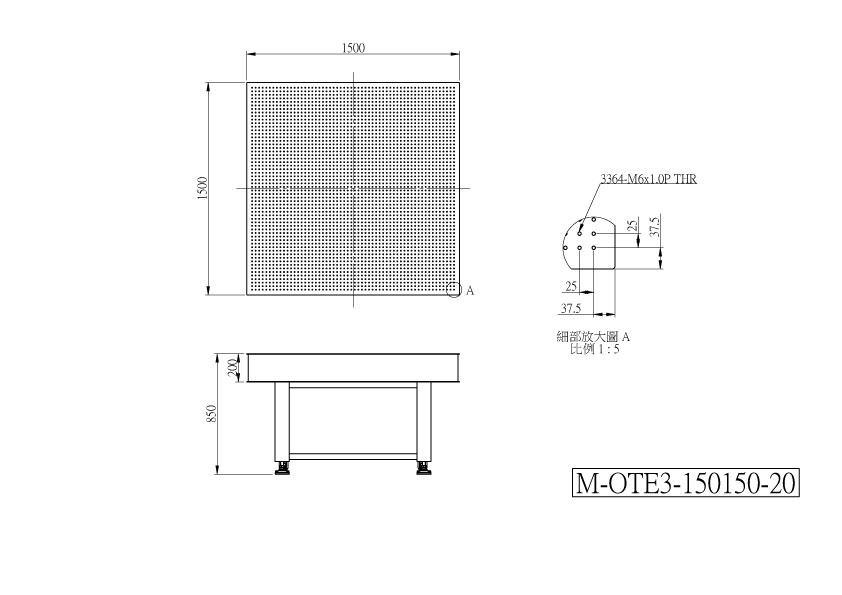

M-OTE3-150150-20

1500x1500mm, 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard

Contact us
US$6132.14
