  6. OTE3-T10 series

展開 型號
桌面尺寸
(mm)
高度
(mm)
厚度
(mm)

 OTE3-4560-10 450X600 850 100

 OTE3-6060-10 600X600 850 100

 OTE3-6075-10 600X750 850 100

 OTE3-6090-10 600X900 850 100

 OTE3-60120-10 600X1200 850 100

 OTE3-7590-10 750X900 850 100

 OTE3-75120-10 750X1200 850 100

 OTE3-9090-10 900X900 850 100

 OTE3-90120-10 900X1200 850 100

 OTE3-90150-10 900X1500 850 100

 OTE3-90180-10 900X1800 850 100

 OTE3-100200-10 1000X2000 850 100

 OTE3-120120-10 1200X1200 850 100

 OTE3-120150-10 1200X1500 850 100

 OTE3-120180-10 1200X1800 850 100

 OTE3-120200-10 1200X2000 850 100

 OTE3-120240-10 1200X2400 850 100

 OTE3-150150-10 1500X1500 850 100

Stationary Optical Table Systems

OTE3-T10-series

A Non-Isolating Optical Table provides a stable working platform for various applications, featuring a non-isolating structure suitable for low-sensitivity applications such as general spectroscopy and multimode fiber coupling. The optical platform itself undergoes precise matte finishing and grinding to maintain flatness within 0.1 millimeters per 60 square centimeters.

• These platforms are equipped with standard M6x1 threads array holes, with the distance between the array holes and the platform edge measuring 1.5 inches (37.5 millimeters).

• They come equipped with SUS304 non-magnetic optical honeycomb panels, each with a thickness of 100mm. The assembly structure, complete with movable casters, ensures convenient transport and installation.

• Additionally, the heights of these platforms can be customized according to customer needs.

Part Number/Description Delivery Price Qty. Add to Cart

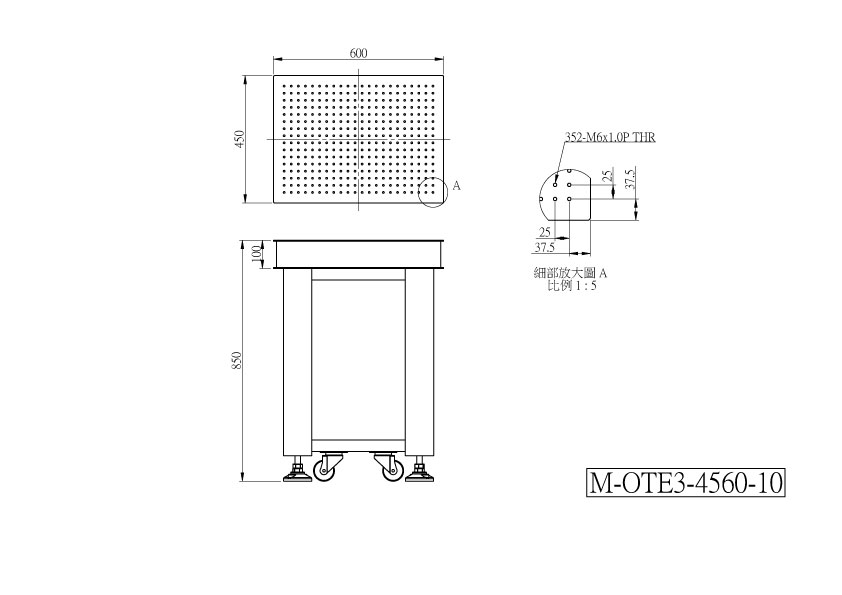

M-OTE3-4560-10

450x600mm , 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$2371.53

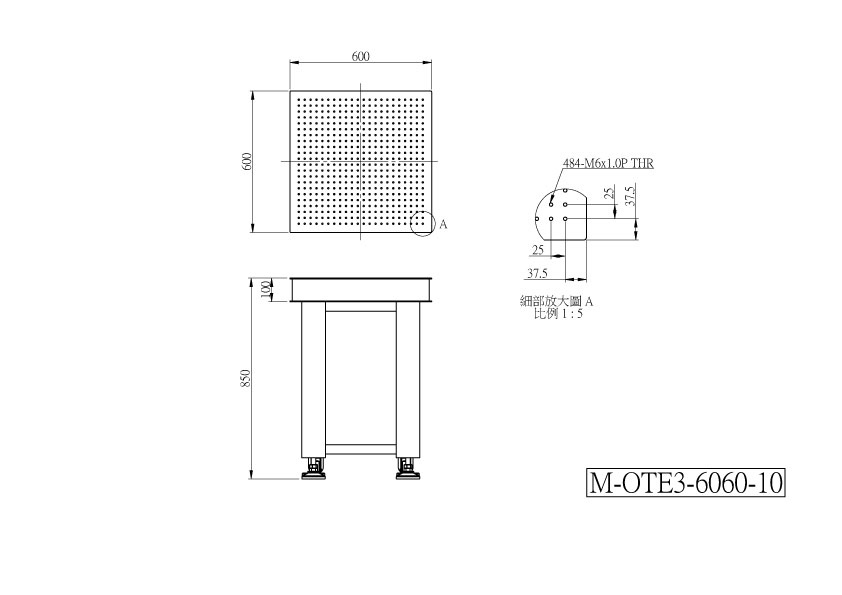

M-OTE3-6060-10

600x600mm, 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$2515.25

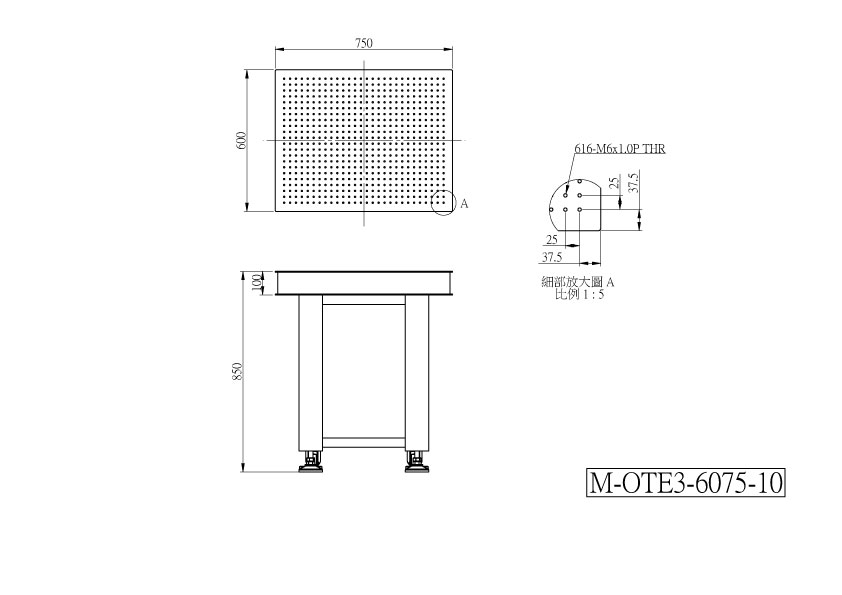

M-OTE3-6075-10

600x750mm, 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$2676.95

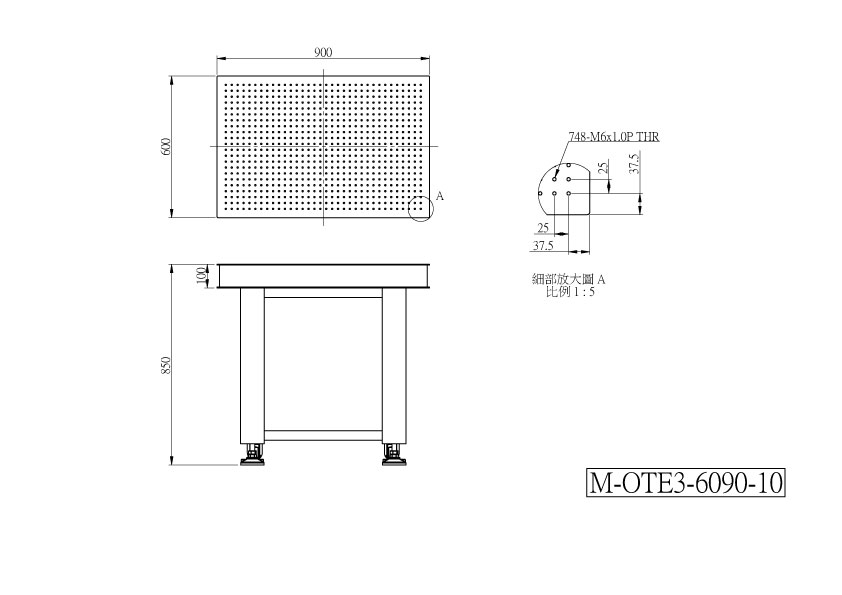

M-OTE3-6090-10

600x900mm, 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$2874.58
M-OTE3-60120-10

600x1200mm, 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$3277.02

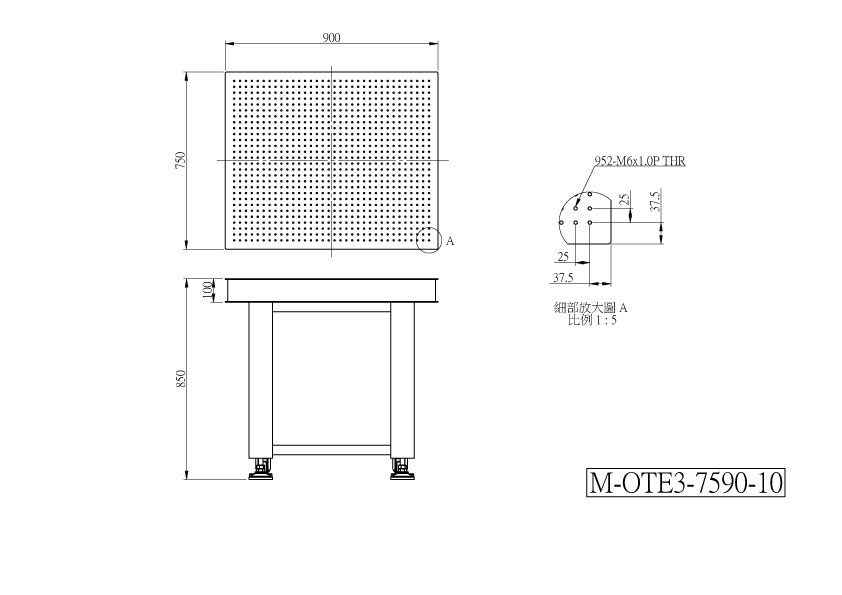

M-OTE3-7590-10

750x900mm, 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$3133.29

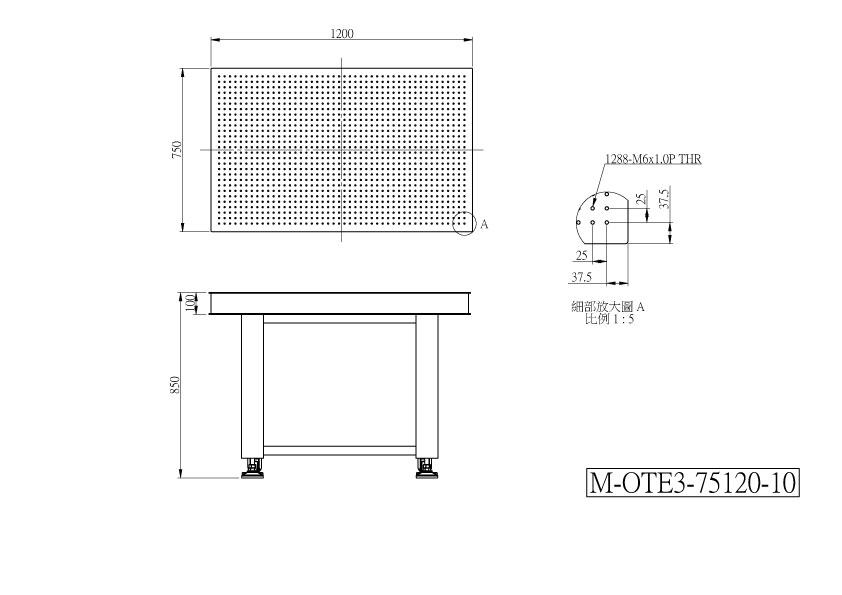

M-OTE3-75120-10

750x1200mm, 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$3701.02

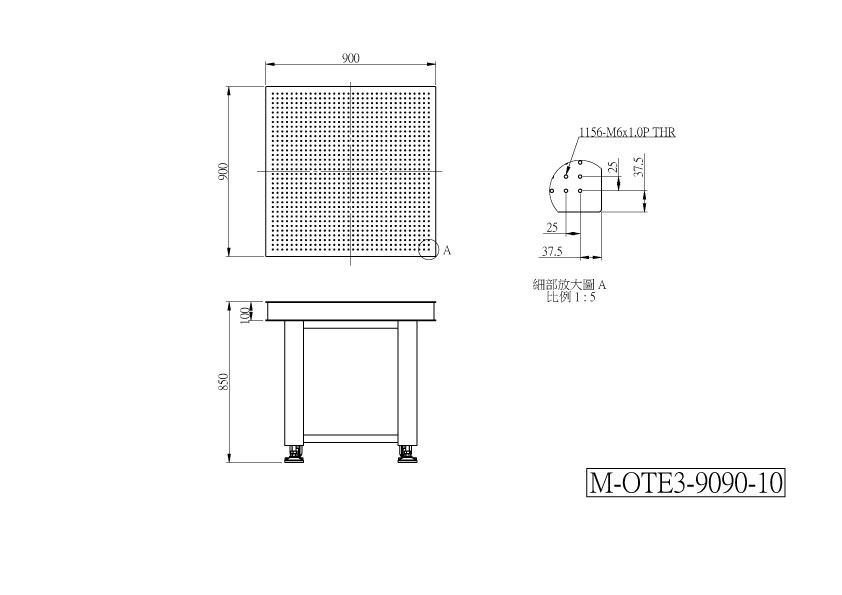

M-OTE3-9090-10

900x900mm , 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$3593.22

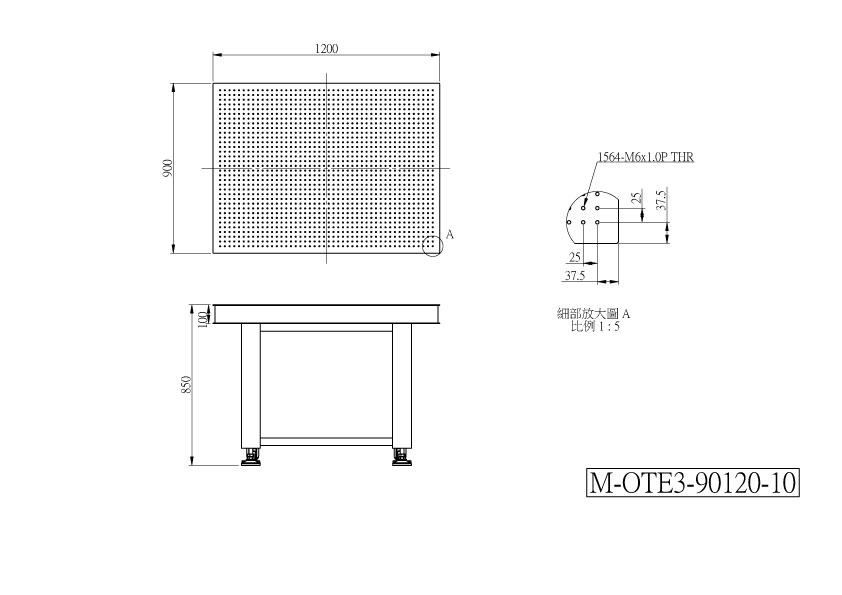

M-OTE3-90120-10

900x1200mm , 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$4150.17

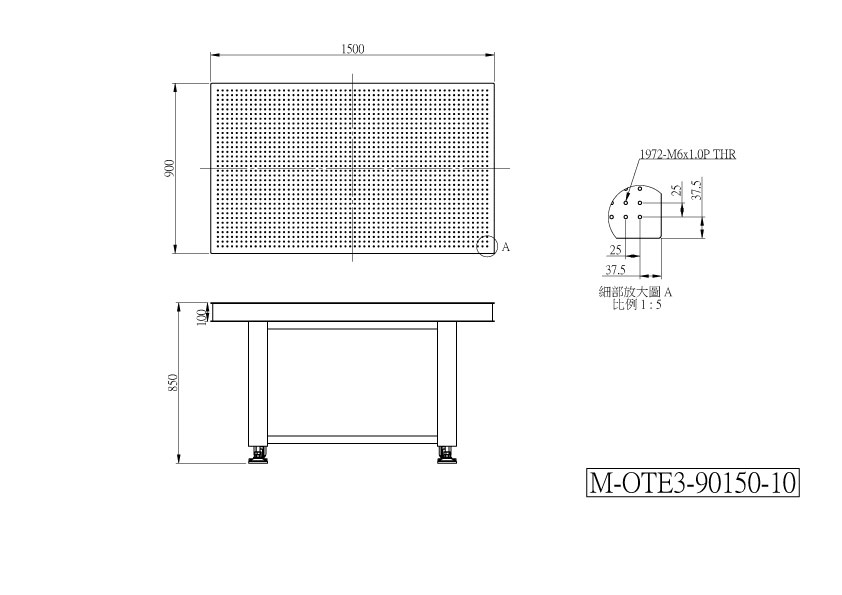

M-OTE3-90150-10

900x1500mm , 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$4509.49

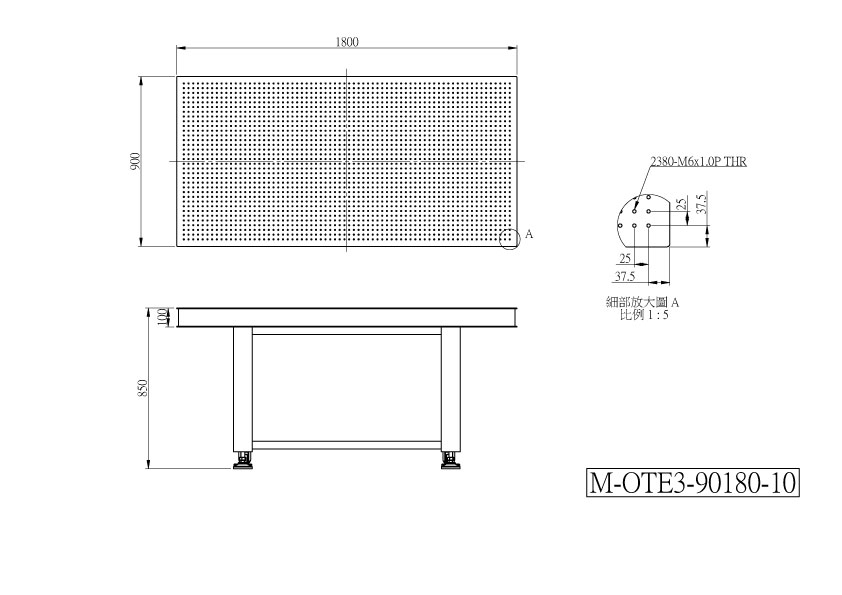

M-OTE3-90180-10

900x1800mm , 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$4761.02

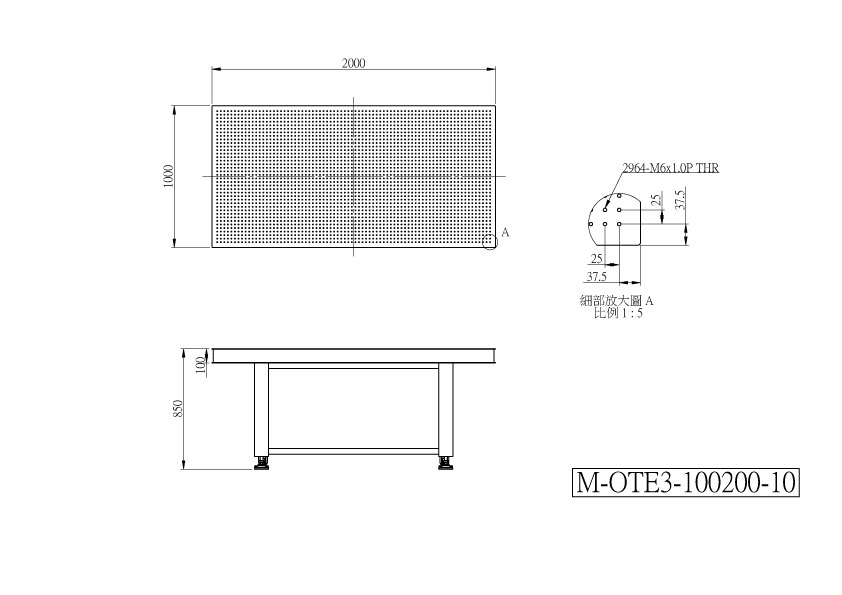

M-OTE3-100200-10

1000x2000mm, 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$5292.81

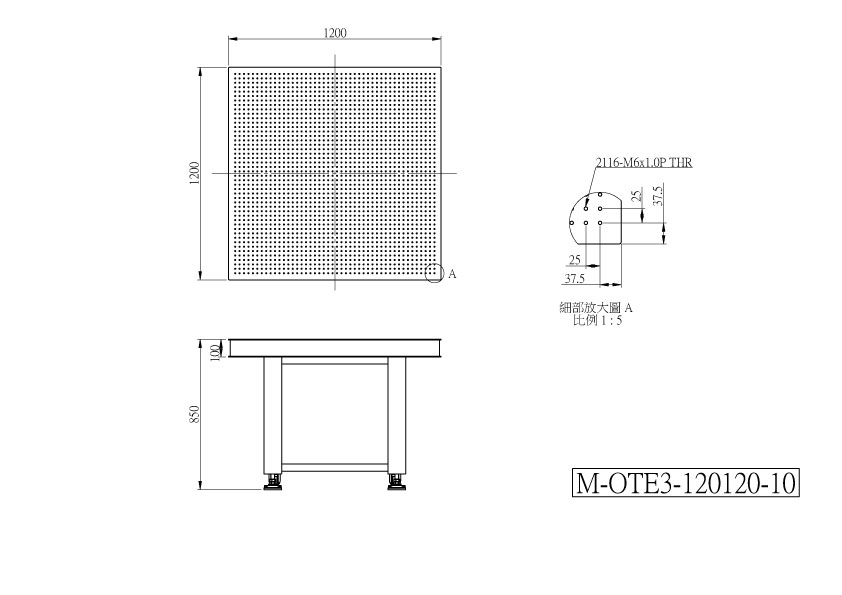

M-OTE3-120120-10

1200x1200mm , 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$4527.46

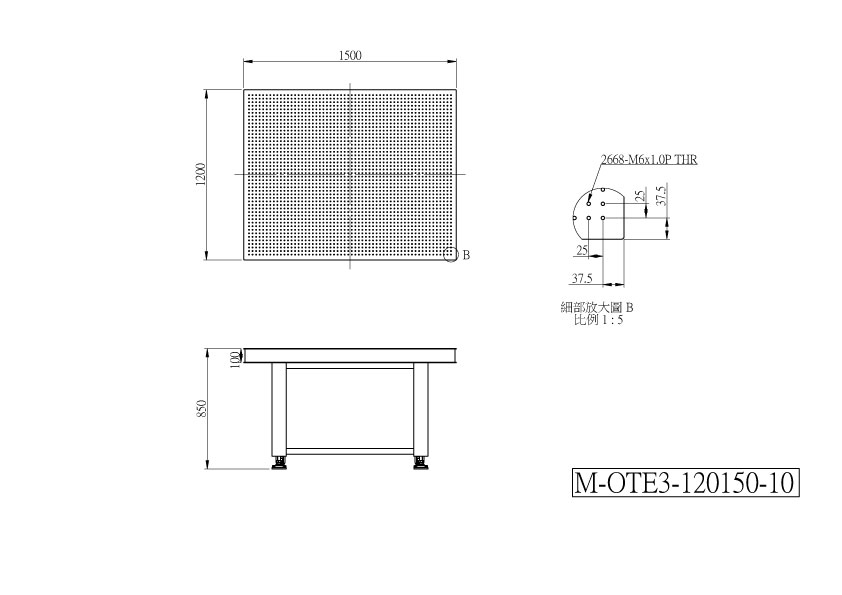

M-OTE3-120150-10

1200x1500mm, 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$4890.37

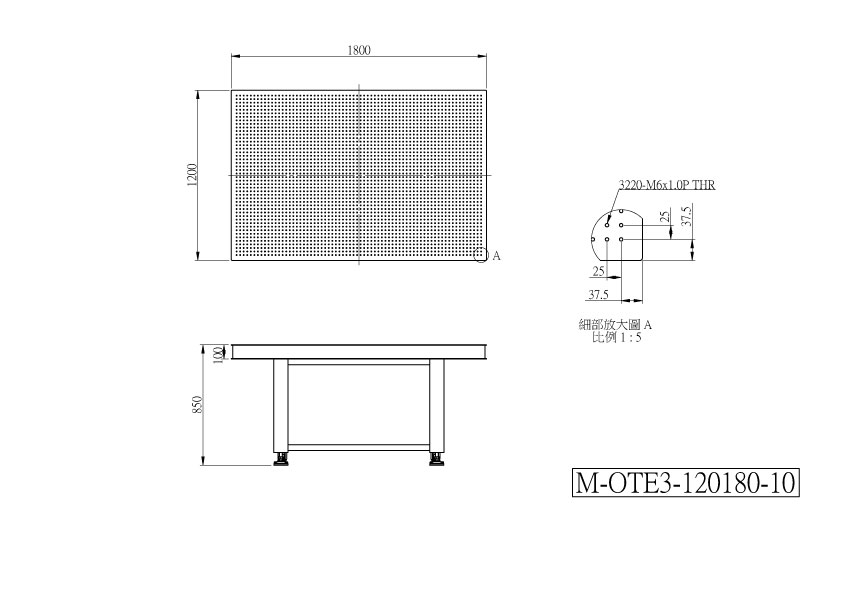

M-OTE3-120180-10

1200x1800mm, 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$5400.61

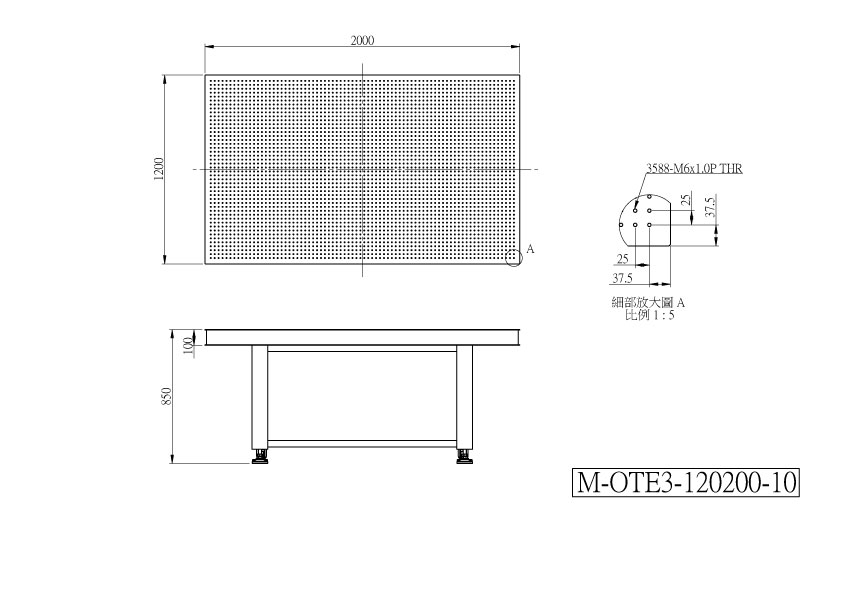

M-OTE3-120200-10

1200x2000mm, 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$5317.97

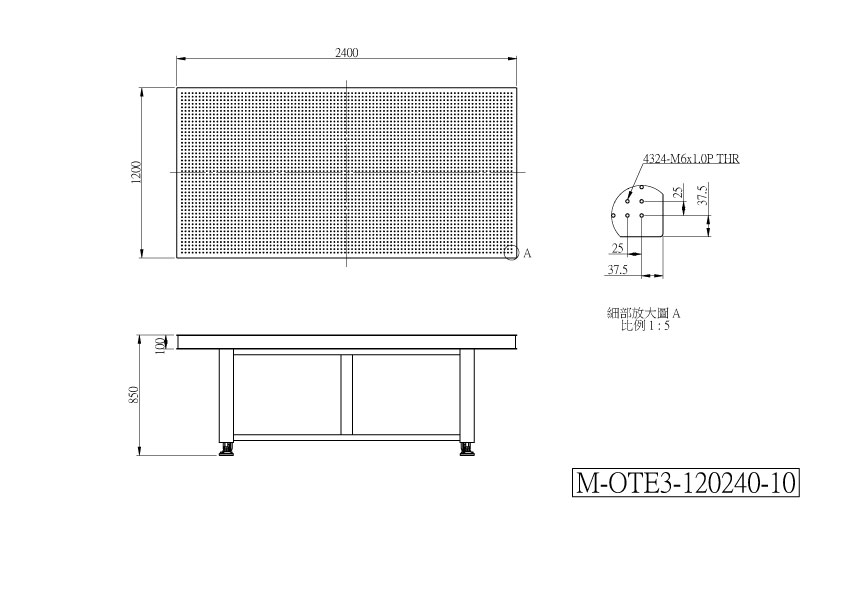

M-OTE3-120240-10

1200x2400mm , 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$5389.83

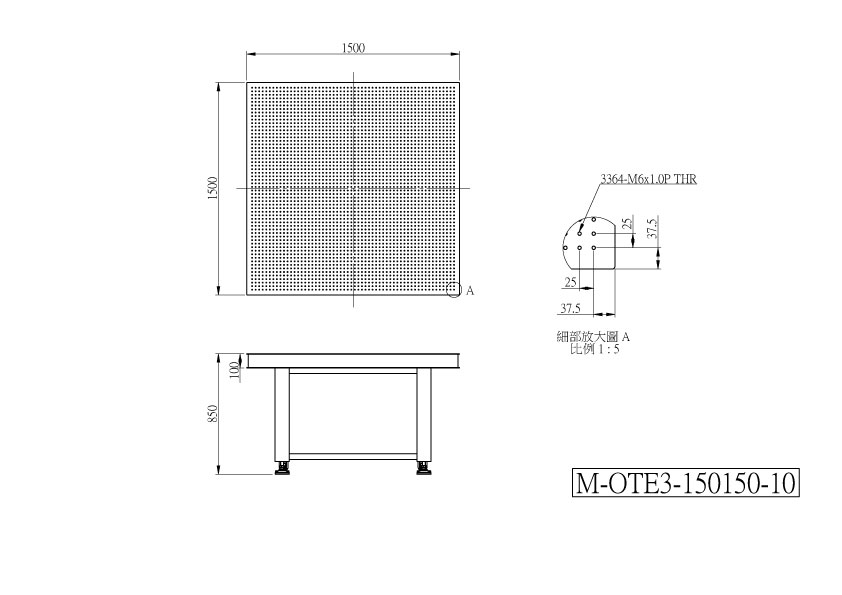

M-OTE3-150150-10

1500x1500mm, 850mm Frame Height, 100mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$5174.24
