Expan Model
Desktop Size
(mm)
Height
(mm)
Thickness
(mm)

 OTE3-4560-05 450X600 850 50

 OTE3-6060-05 600X600 850 50

 OTE3-6075-05 600X750 850 50

 OTE3-6090-05 600X900 850 50

 OTE3-60120-05 600X1200 850 50

 OTE3-7590-05 750X900 850 50

Stationary Optical Table Systems

OTE3-T5-series

A Non-Isolating Optical Table provides a stable working platform for various applications, featuring a non-isolating structure suitable for low-sensitivity applications such as general spectroscopy and multimode fiber coupling. The optical platform itself undergoes precise matte finishing and grinding to maintain flatness within 0.1 millimeters per 60 square centimeters.

• These platforms are equipped with standard M6x1 threads array holes, with the distance between the array holes and the platform edge measuring 1.5 inches (37.5 millimeters).

• They come equipped with SUS304 non-magnetic optical honeycomb panels, each with a thickness of 100mm. The assembly structure, complete with movable casters, ensures convenient transport and installation.

• Additionally, the heights of these platforms can be customized according to customer needs.

Part Number/Description Delivery Price Qty. Add to Cart

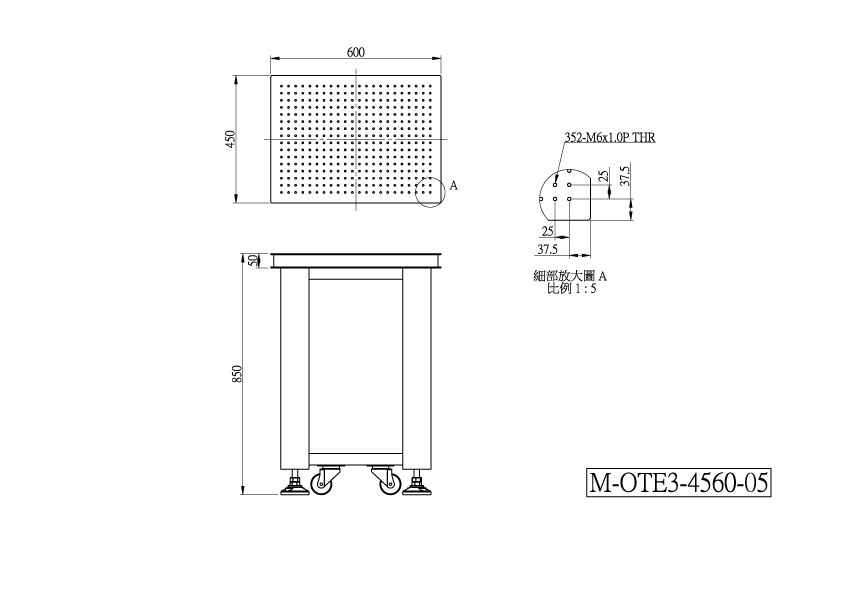

M-OTE3-4560-05

450x600mm, 850mm Frame Height, 50mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$1922.37

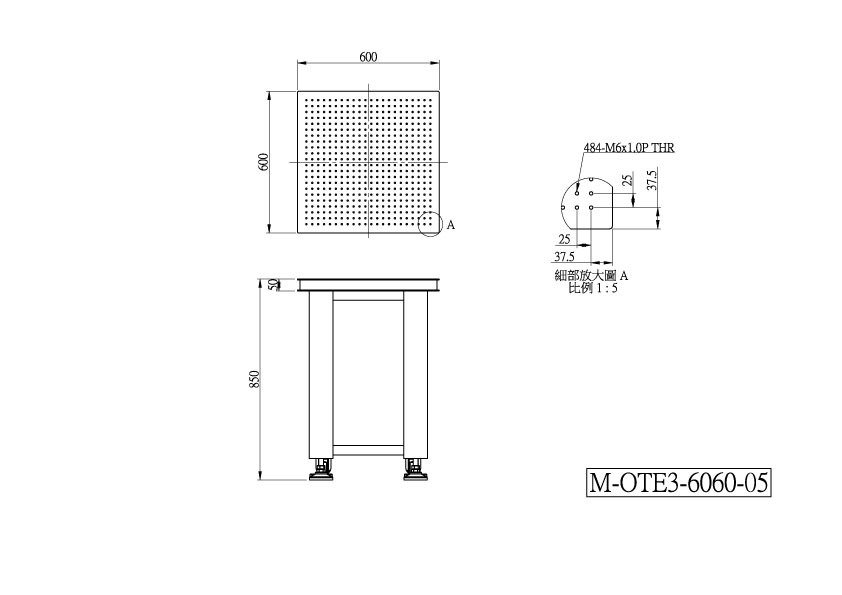

M-OTE3-6060-05

600x600mm, 850mm Frame Height, 50mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$2176.27

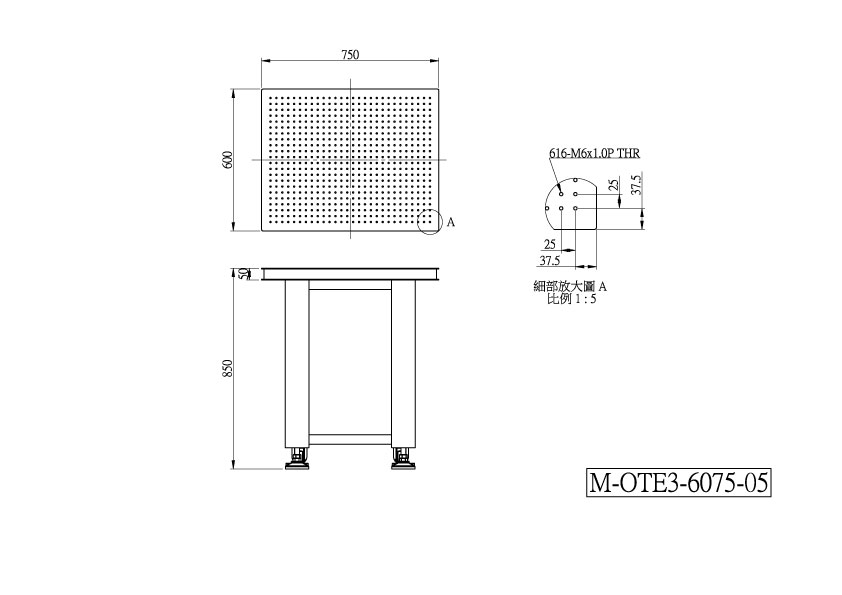

M-OTE3-6075-05

600x750mm , 850mm Frame Height, 50mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$2248.81

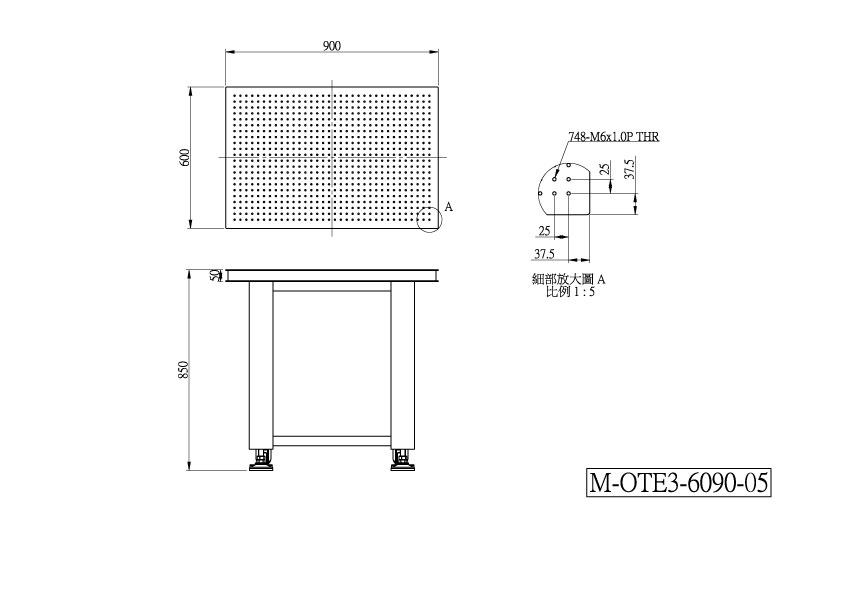

M-OTE3-6090-05

600x900mm, 850mm Frame Height, 50mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$2412.03

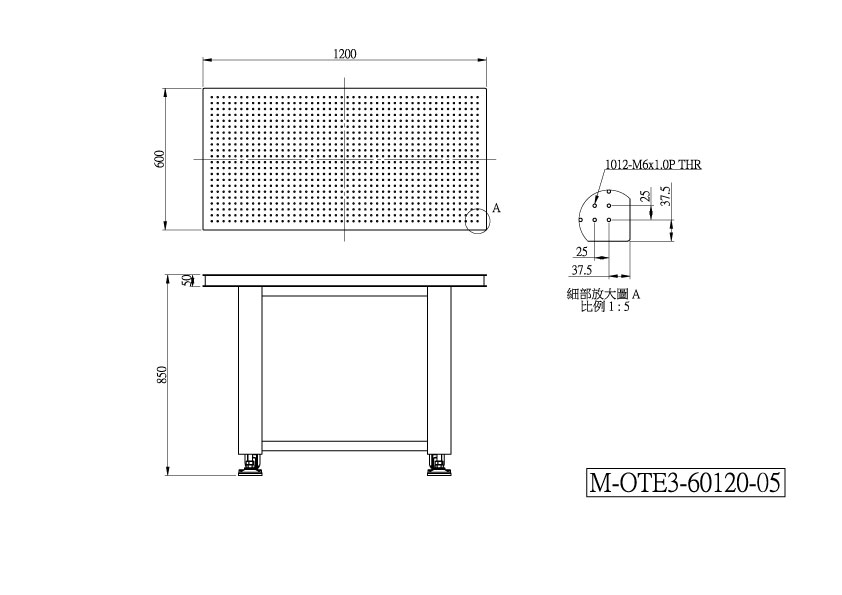

M-OTE3-60120-05

600x1200mm, 850mm Frame Height, 50mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$2575.25

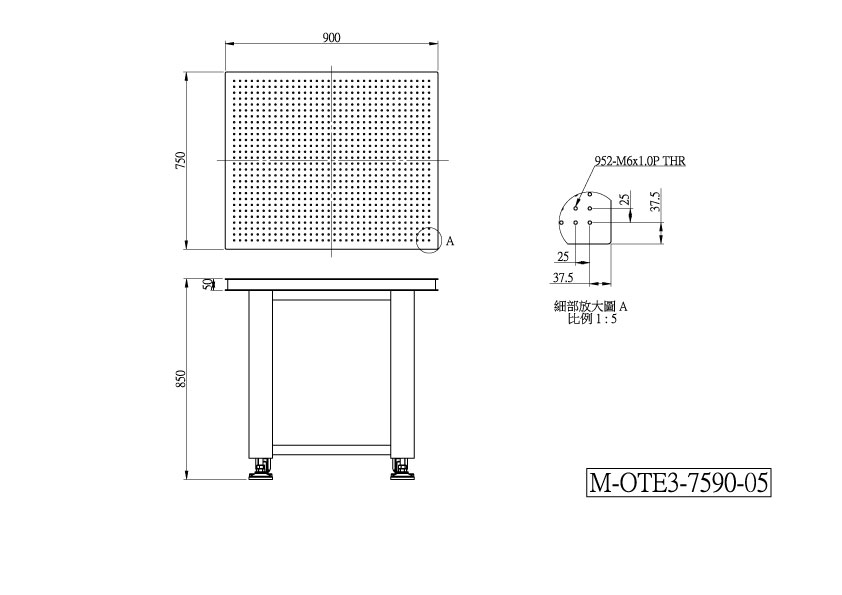

M-OTE3-7590-05

750x900mm, 850mm Frame Height, 50mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$2466.44
