展開 型號
桌面尺寸
(mm)
高度
(mm)
厚度
(mm)

OTE4-90120-20 900X1200 850 200

OTE4-90150-20 900X1500 850 200

OTE4-90180-20 900X1800 850 200

OTE4-100200-20 1000X2000 850 200

OTE4-120120-20 1200X1200 850 200

OTE4-120150-20 1200X1500 850 200

OTE4-120180-20 1200X1800 850 200

OTE4-120200-20 1200X2000 850 200

OTE4-120240-20 1200X2400 850 200

OTE4-120300-20 1200X3000 850 200

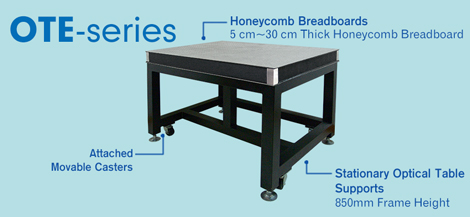

Stationary Optical Table Systems

OTE4-T20-series

A Non-Isolating Optical Table provides a stable working platform for various applications, featuring a non-isolating structure suitable for low-sensitivity applications such as general spectroscopy and multimode fiber coupling. The optical platform itself undergoes precise matte finishing and grinding to maintain flatness within 0.1 millimeters per 60 square centimeters.

• These platforms are equipped with standard M6x1 threads array holes, with the distance between the array holes and the platform edge measuring 1.5 inches (37.5 millimeters).

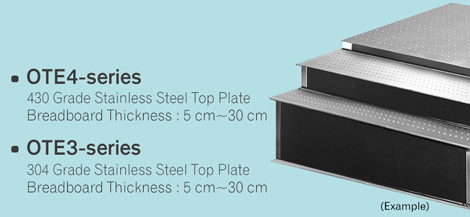

• They come equipped with SUS430 magnetic optical honeycomb panels, each with a thickness of 200mm. The assembly structure, complete with movable casters, ensures convenient transport and installation.

• Additionally, the heights of these platforms can be customized according to customer needs.


Part Number/Description Delivery Price Qty. Add to Cart

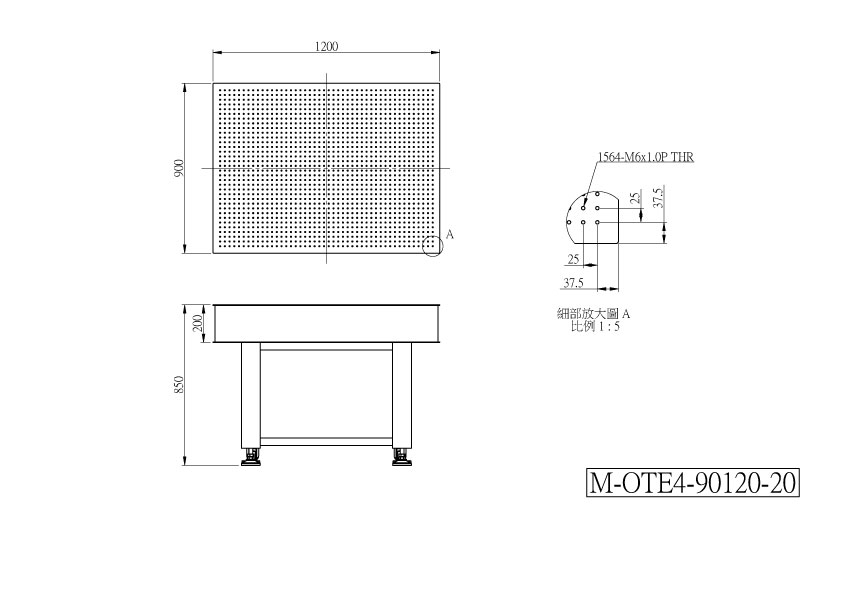

M-OTE4-90120-20

900X1200mm,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$3785.71
M-OTE4-90150-20

900x1500mm,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$4035.71

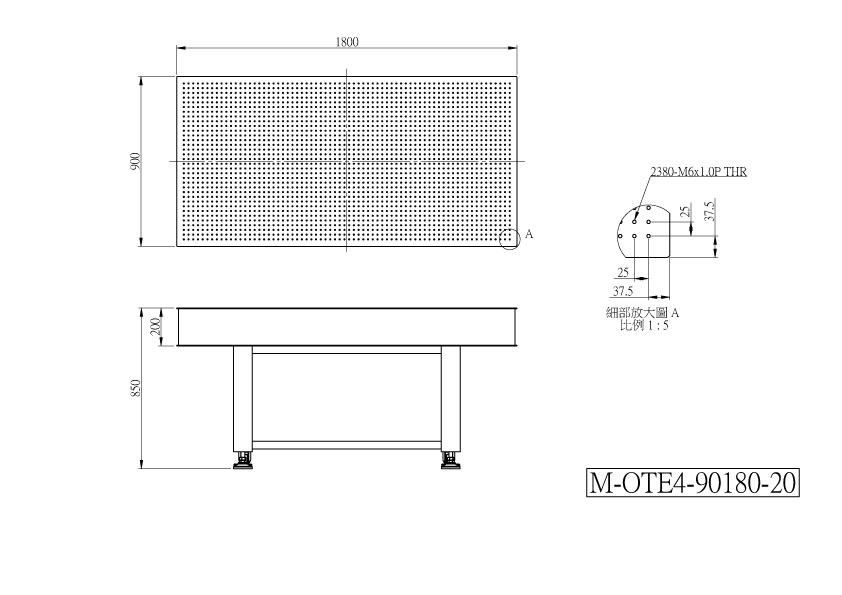

M-OTE4-90180-20

900x1800mm,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$4214.29

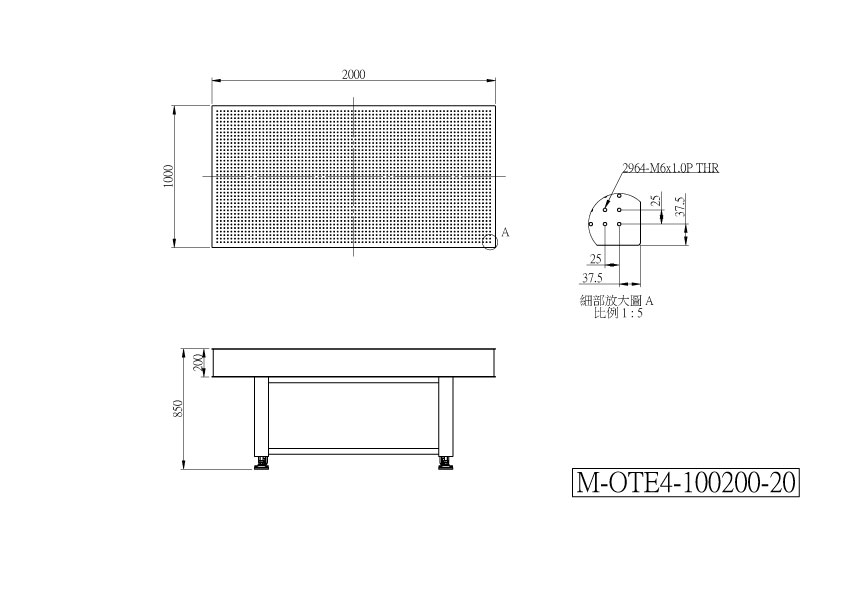

M-OTE4-100200-20

1000x2000mm,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$4821.43

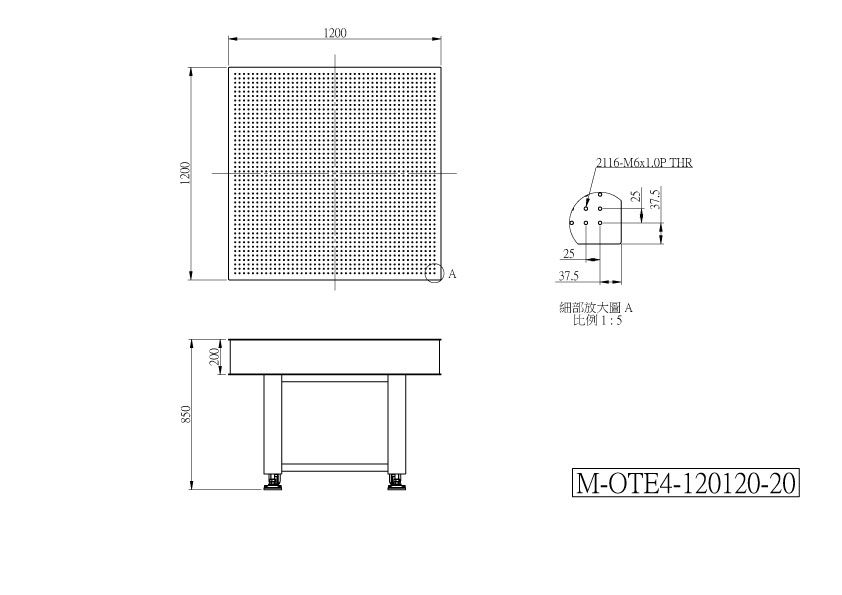

M-OTE4-120120-20

1200x1200mm,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$4035.71

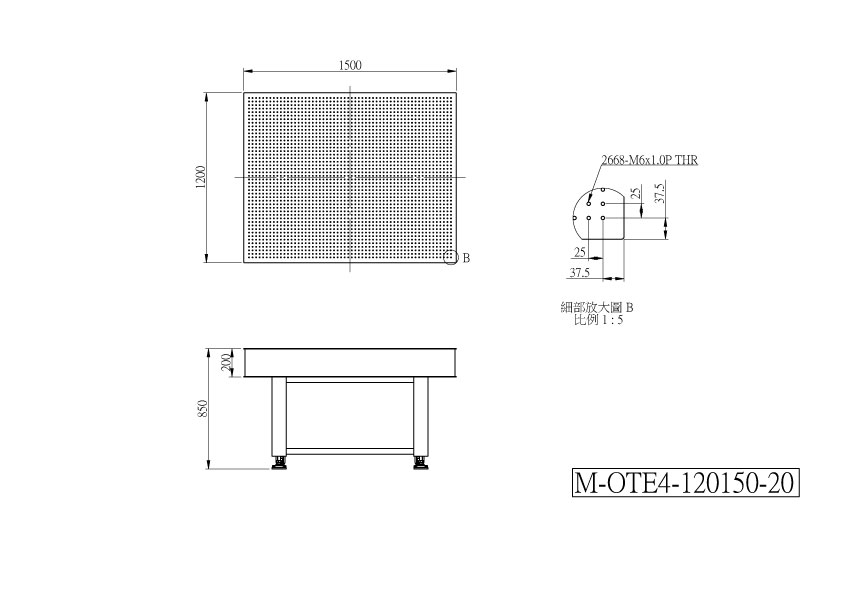

M-OTE4-120150-20

1200x1500mm,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$4410.71

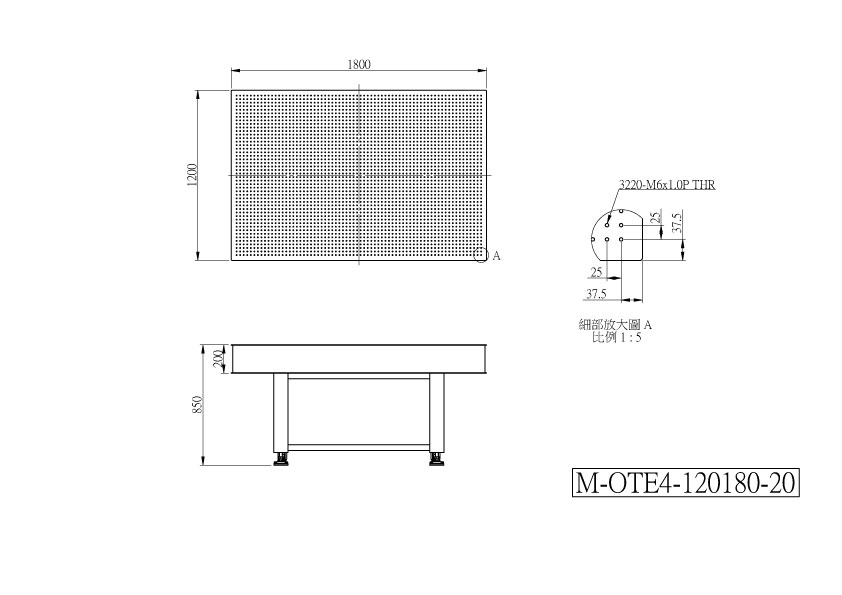

M-OTE4-120180-20

1200x1800mm,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$4875.00

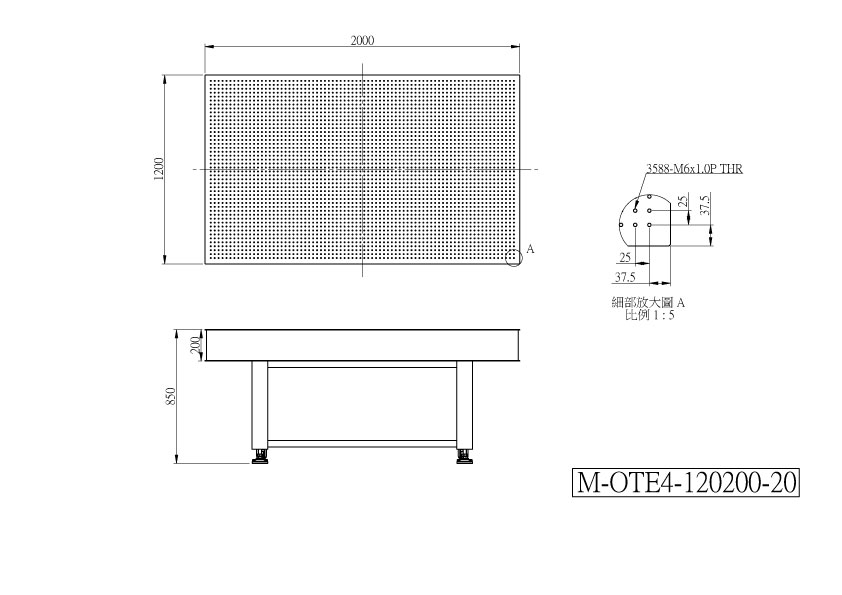

M-OTE4-120200-20

1200x2000mm,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$5107.14

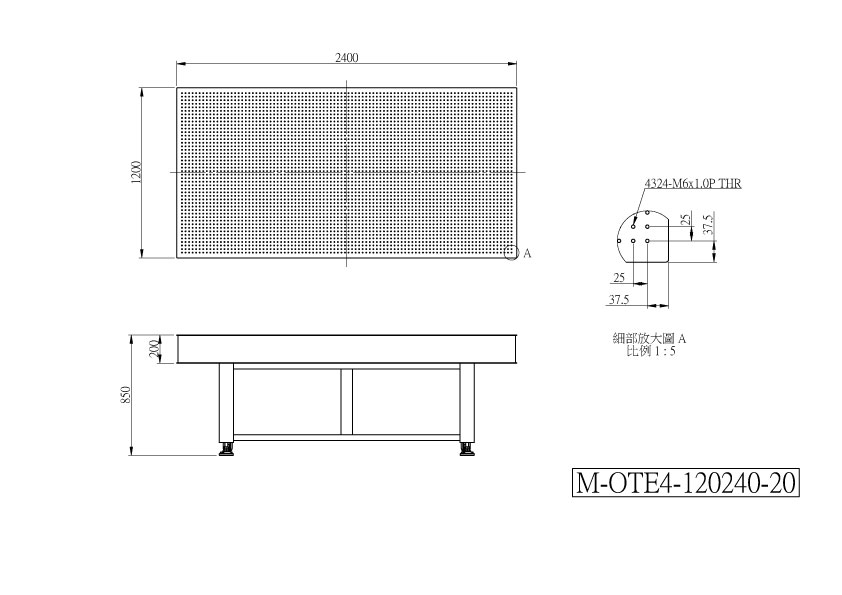

M-OTE4-120240-20

1200x2400mm,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$5482.14

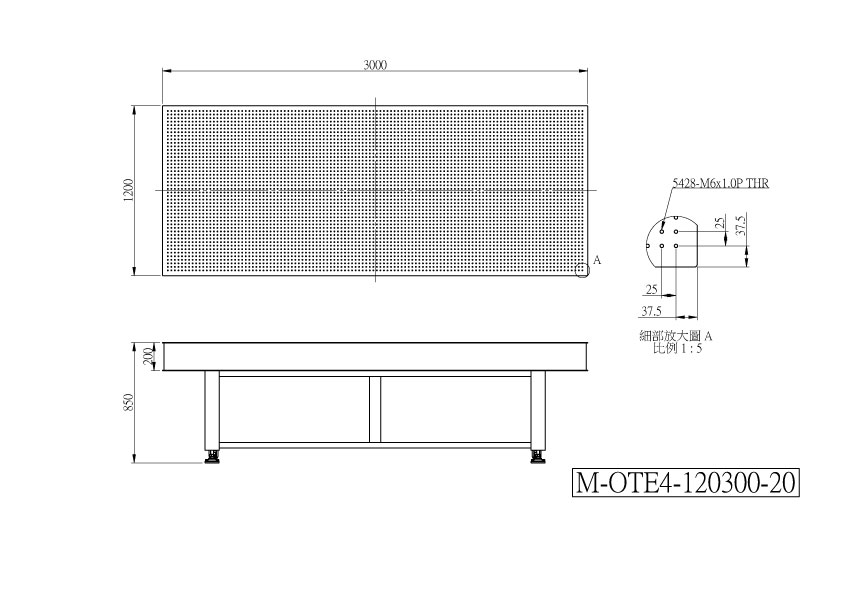

M-OTE4-120300-20

1200x3000mm,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$6535.71
