  6. OTE4-T10 series

Expan Model
Desktop Size
(mm)
Height
(mm)
Thickness
(mm)

 OTE4-4560-10 450X600 850 100

 OTE4-6060-10 600X600 850 100

 OTE4-6075-10 600X750 850 100

 OTE4-6090-10 600X900 850 100

 OTE4-60120-10 600X1200 850 100

 OTE4-7590-10 750X900 850 100

 OTE4-75120-10 750X1200 850 100

 OTE4-9090-10 900X900 850 100

 OTE4-90120-10 900X1200 850 100

 OTE4-90150-10 900X1500 850 100

 OTE4-90180-10 900X1800 850 100

 OTE4-100200-10 1000X2000 850 100

 OTE4-120120-10 1200X1200 850 100

 OTE4-120150-10 1200X1500 850 100

 OTE4-120180-10 1200X1800 850 100

 OTE4-120200-10 1200X2000 850 100

 OTE4-120240-10 1200X2400 850 100

Stationary Optical Table Systems

OTE4-T10-series

A Non-Isolating Optical Table provides a stable working platform for various applications, featuring a non-isolating structure suitable for low-sensitivity applications such as general spectroscopy and multimode fiber coupling. The optical platform itself undergoes precise matte finishing and grinding to maintain flatness within 0.1 millimeters per 60 square centimeters.

• These platforms are equipped with standard M6 (1/4"-20 threads) array holes, with the distance between the array holes and the platform edge measuring 1.5 inches (37.5 millimeters).

• They come equipped with SUS430 magnetic optical honeycomb panels, each with a thickness of 100mm. The assembly structure, complete with movable casters, ensures convenient transport and installation.

• Additionally, the heights of these platforms can be customized according to customer needs.

Part Number/Description Delivery Price Qty. Add to Cart

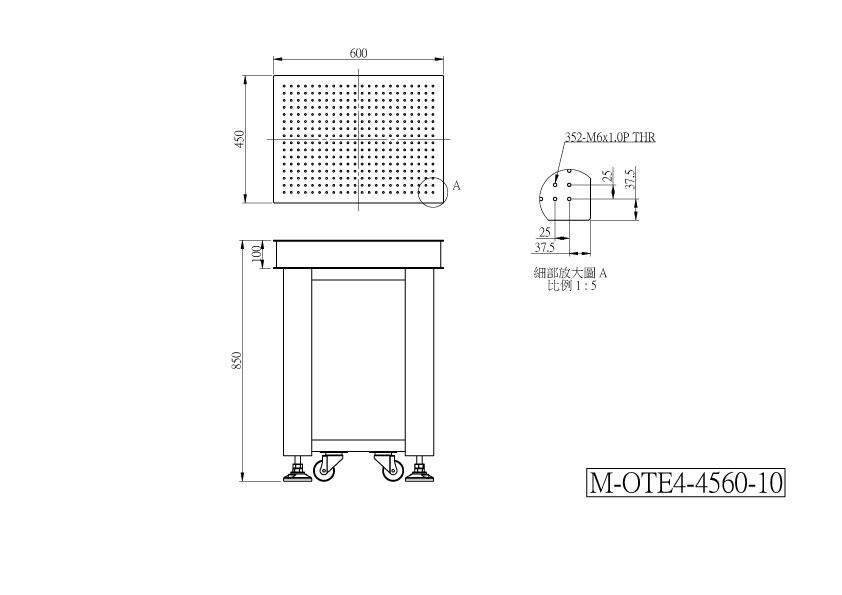

M-OTE4-4560-10

450x600mm , 850mm Frame Height, 100mm thick Honeycomb Breadboard
Contact us
US$2084.07

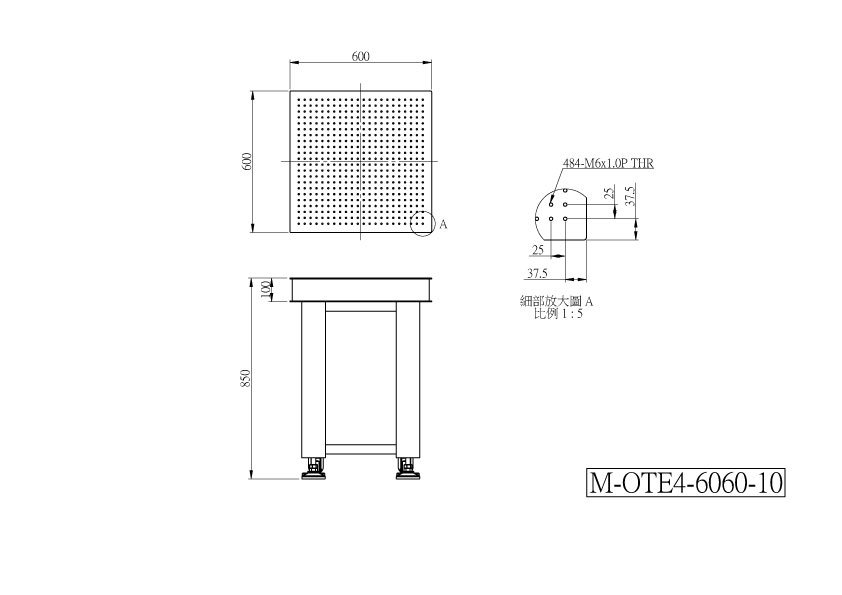

M-OTE4-6060-10

600x600mm,850mm Frame Height, 100mm thick Honeycomb Breadboard
Contact us
US$2263.73

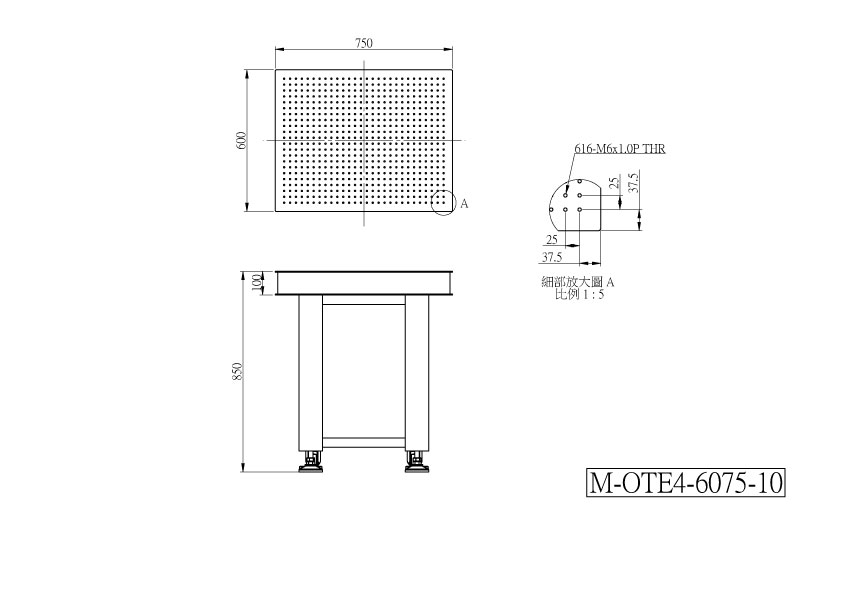

M-OTE4-6075-10

600x750mm ,850mm Frame Height, 100mm thick Honeycomb Breadboard
Contact us
US$2418.24

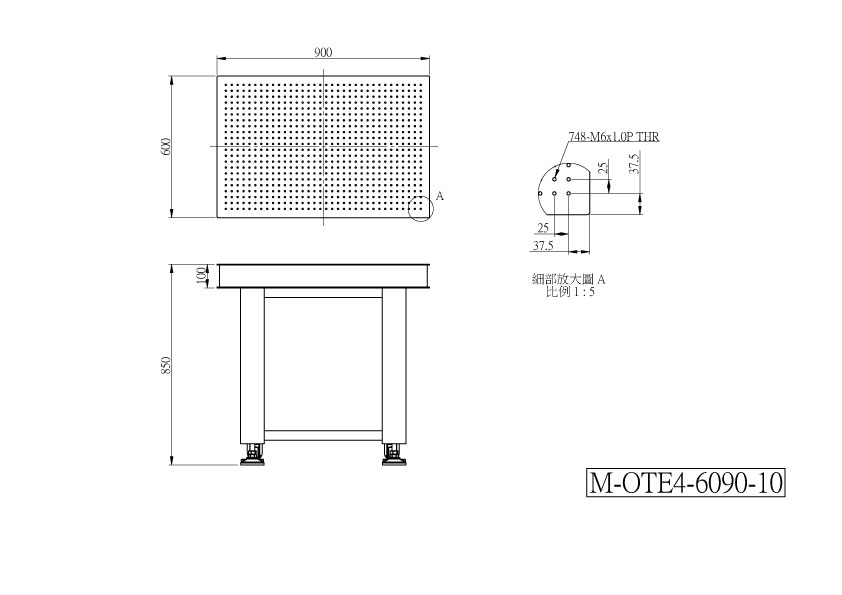

M-OTE4-6090-10

600x900mm ,850mm Frame Height, 100mm thick Honeycomb Breadboard
Contact us
US$2533.22

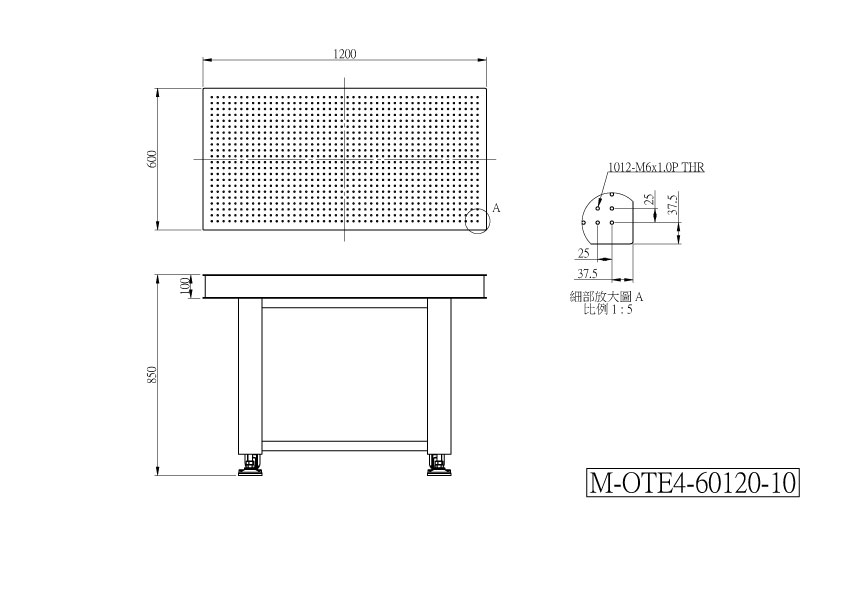

M-OTE4-60120-10

600x1200mm,850mm Frame Height, 100mm thick Honeycomb Breadboard
Contact us
US$2809.90

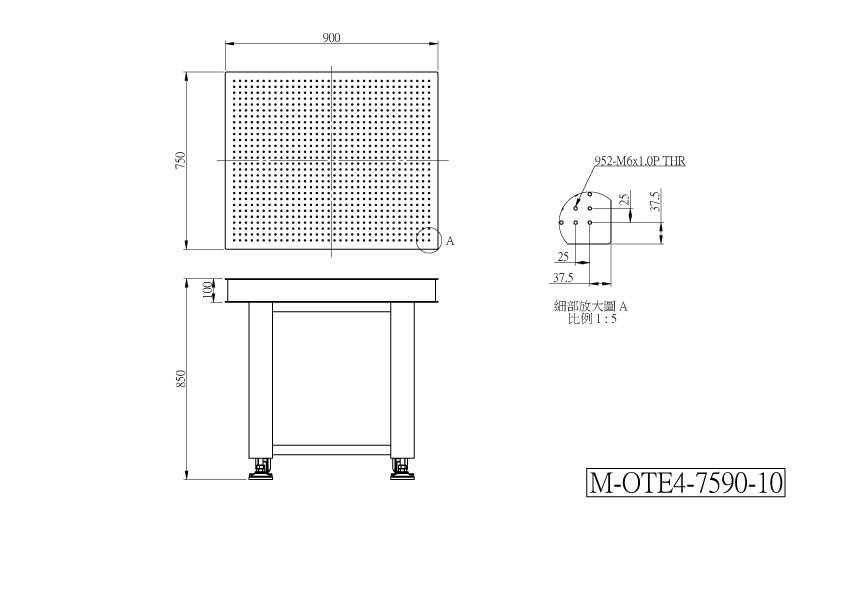

M-OTE4-7590-10

750x900mm,850mm Frame Height, 100mm thick Honeycomb Breadboard
Contact us
US$2773.97
M-OTE4-75120-10

750x1200mm,850mm Frame Height, 100mm thick Honeycomb Breadboard
Contact us
US$3162.03

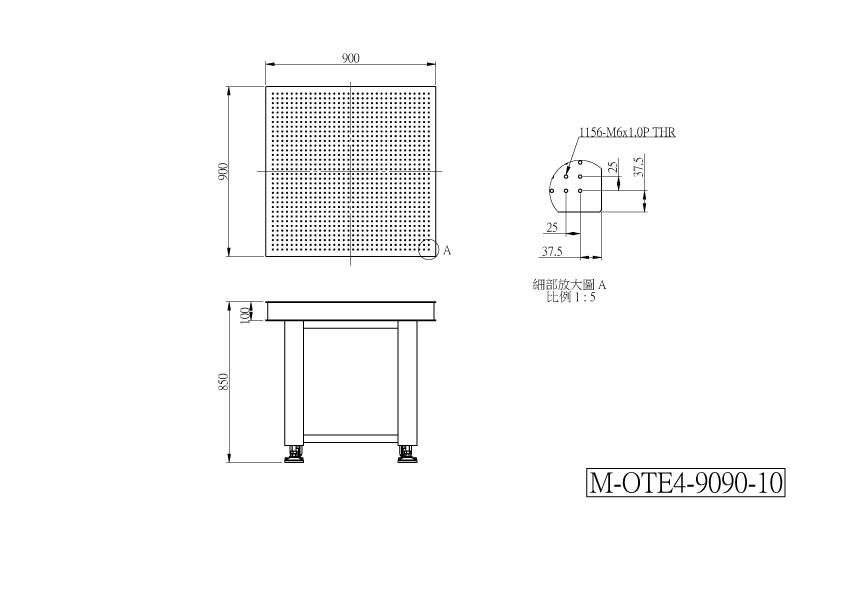

M-OTE4-9090-10

900x900mm,850mm Frame Height, 100mm thick Honeycomb Breadboard
Contact us
US$3090.17

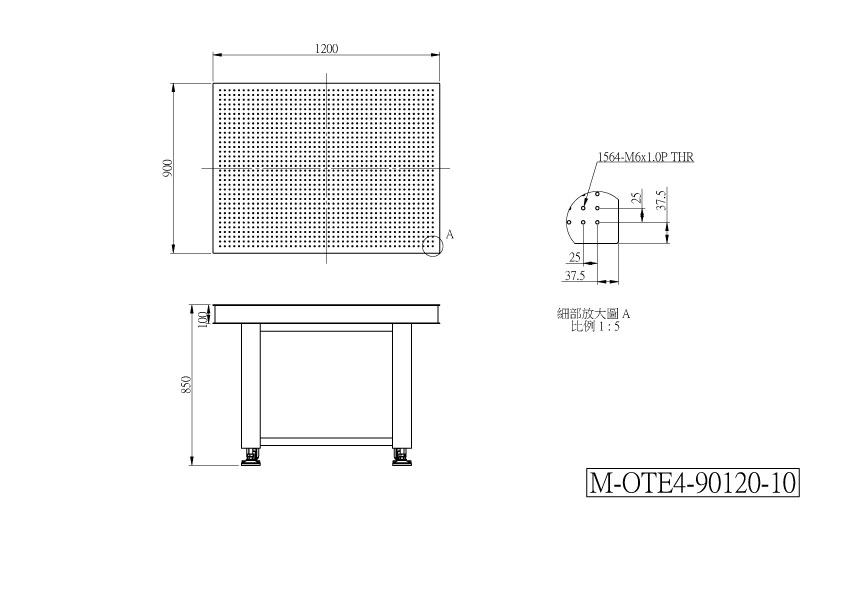

M-OTE4-90120-10

900x1200mm,850mm Frame Height, 100mm thick Honeycomb Breadboard
Contact us
US$3503.39

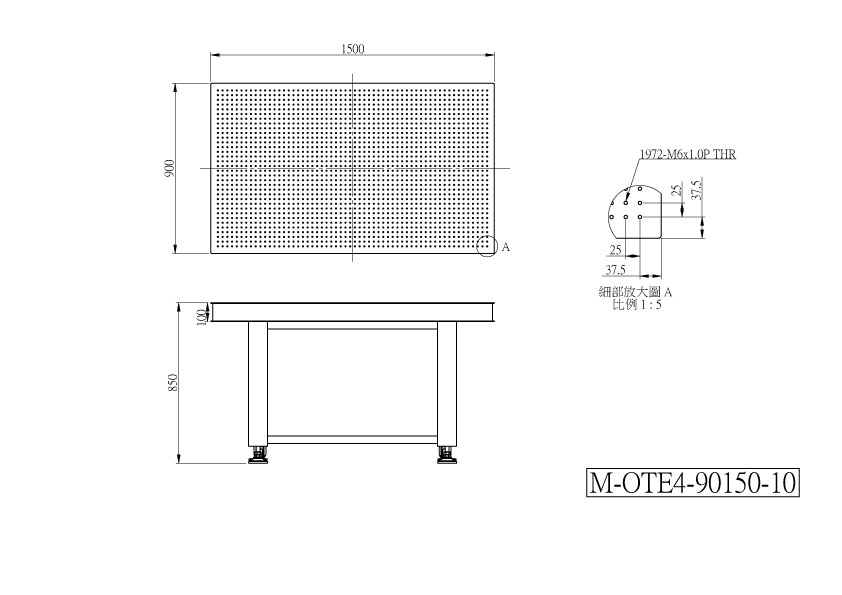

M-OTE4-90150-10

900x1500mm ,850mm Frame Height, 100mm thick Honeycomb Breadboard
Contact us
US$3916.61

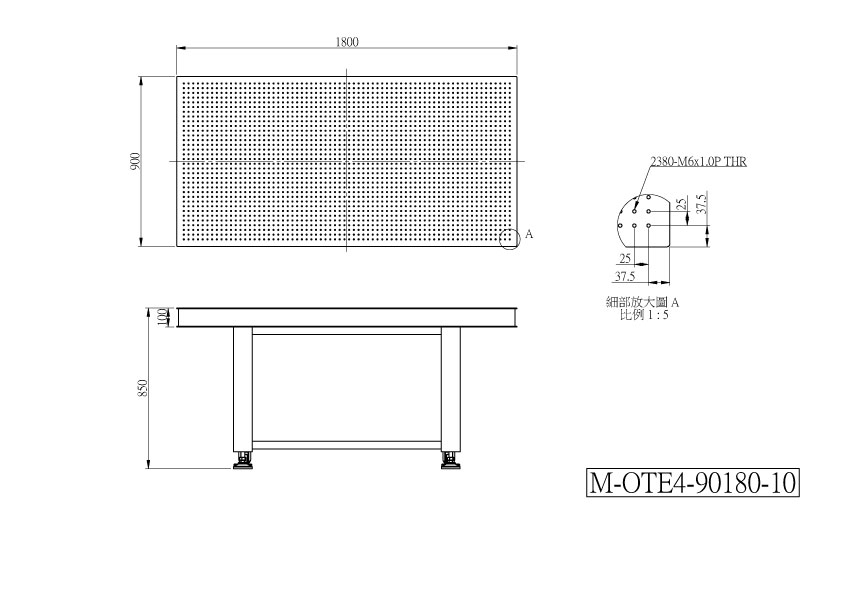

M-OTE4-90180-10

900x1800mm ,850mm Frame Height, 100mm thick Honeycomb Breadboard
Contact us
US$4171.73

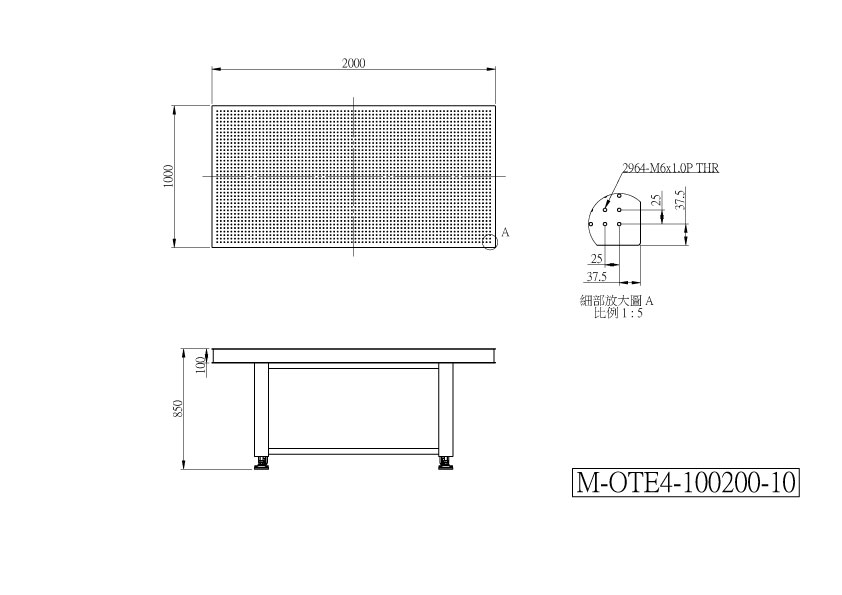

M-OTE4-100200-10

1000x2000mm ,850mm Frame Height, 100mm thick Honeycomb Breadboard
Contact us
US$4656.81

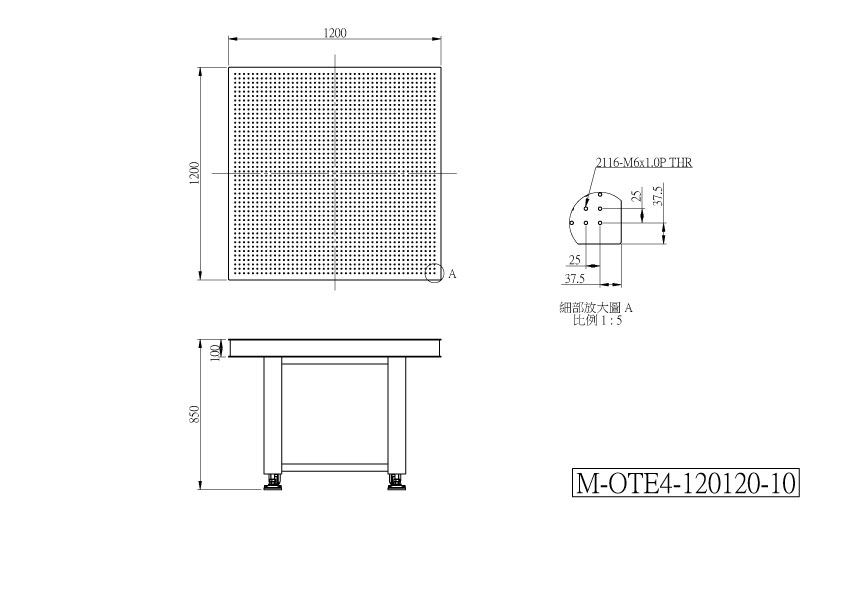

M-OTE4-120120-10

1200x1200mm,850mm Frame Height, 100mm thick Honeycomb Breadboard
Contact us
US$3988.47

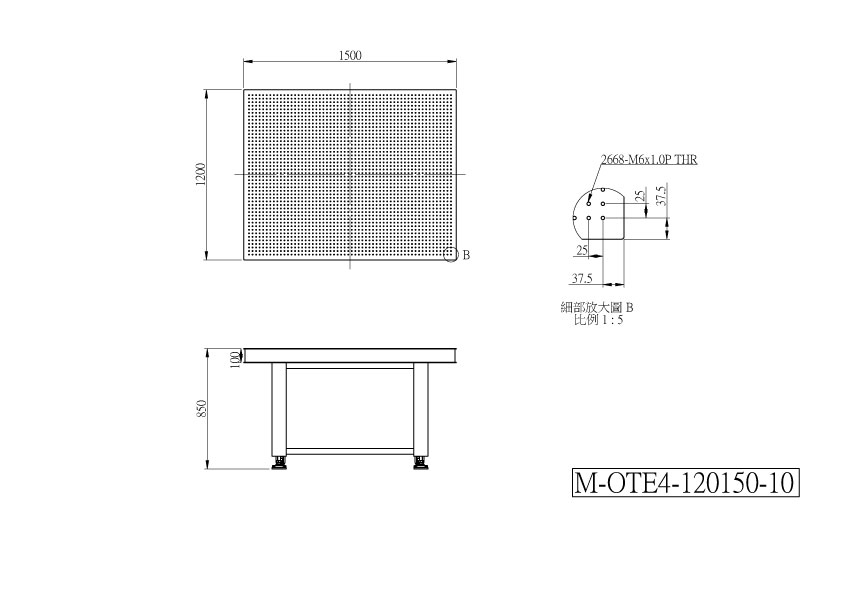

M-OTE4-120150-10

1200x1500mm ,850mm Frame Height, 100mm thick Honeycomb Breadboard
Contact us
US$4315.46

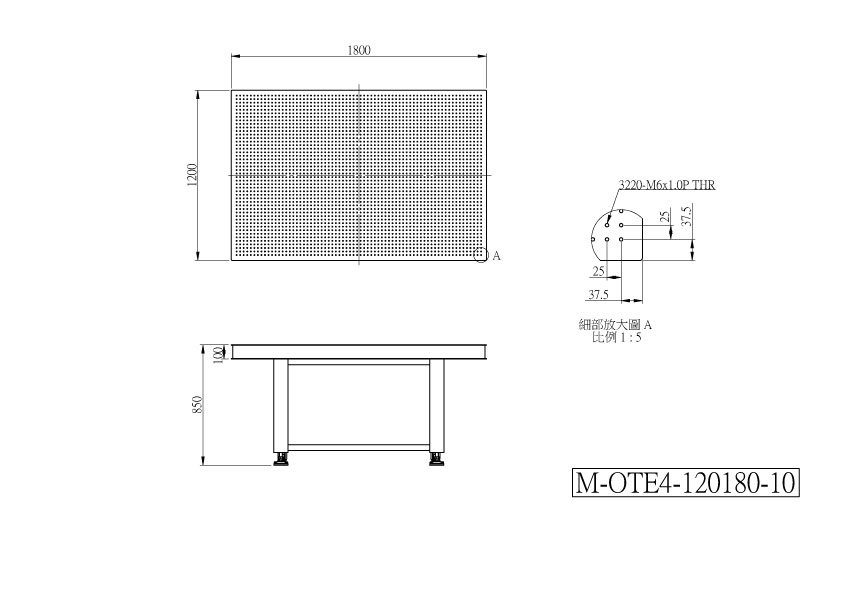

M-OTE4-120180-10

1200x1800mm,850mm Frame Height, 100mm thick Honeycomb Breadboard
Contact us
US$4717.90

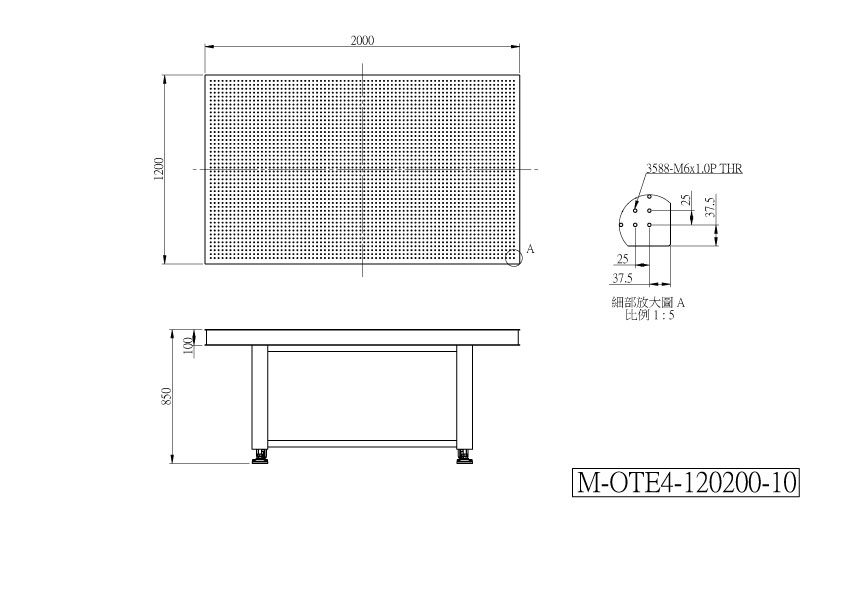

M-OTE4-120200-10

1200x2000mm ,850mm Frame Height, 100mm thick Honeycomb Breadboard
Contact us
US$4962.24

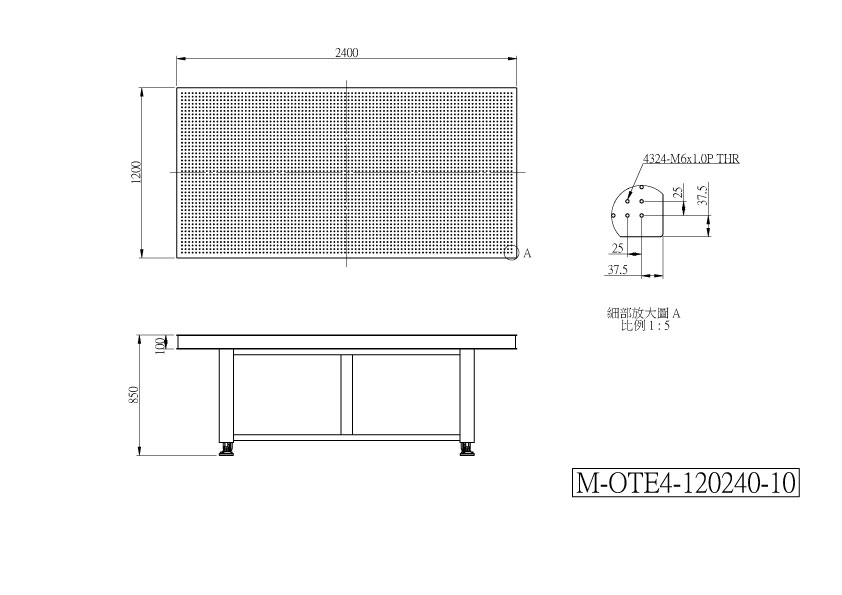

M-OTE4-120240-10

1200x2400mm,850mm Frame Height, 100mm thick Honeycomb Breadboard
Contact us
US$5332.34
