Expand Model
Desktop Size
(mm)
Height
(mm)
Thickness
(mm)

OTE4-4560-05 450X600 850 50

OTE4-6060-05 600X600 850 50

OTE4-6075-05 600X750 850 50

OTE4-6090-05 600X900 850 50

OTE4-60120-05 600X1200 850 50

OTE4-7590-05 750X900 850 50

Stationary Optical Table Systems

OTE4-T5-series

A Non-Isolating Optical Table provides a stable working platform for various applications, featuring a non-isolating structure suitable for low-sensitivity applications such as general spectroscopy and multimode fiber coupling. The optical platform itself undergoes precise matte finishing and grinding to maintain flatness within 0.1 millimeters per 60 square centimeters.

• These platforms are equipped with standard M6 (1/4"-20 threads) array holes, with the distance between the array holes and the platform edge measuring 1.5 inches (37.5 millimeters).

• They come equipped with SUS430 magnetic optical honeycomb panels, each with a thickness of 50mm. The assembly structure, complete with movable casters, ensures convenient transport and installation.

• Additionally, the heights of these platforms can be customized according to customer needs.


Part Number/Description Delivery Price Qty. Add to Cart

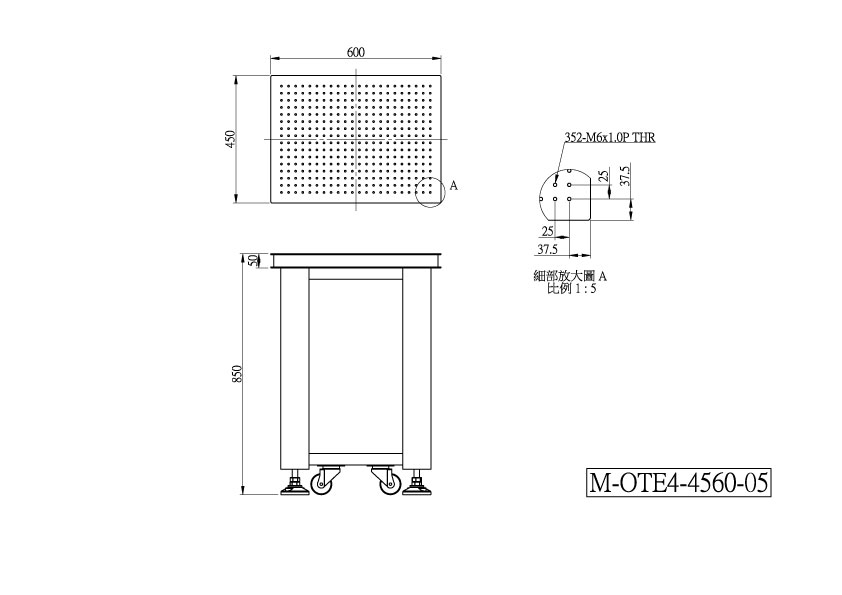

M-OTE4-4560-05

450x600mm , 850mm Frame Height, 50mm thick Honeycomb Breadboard

Contact us
US$1867.97

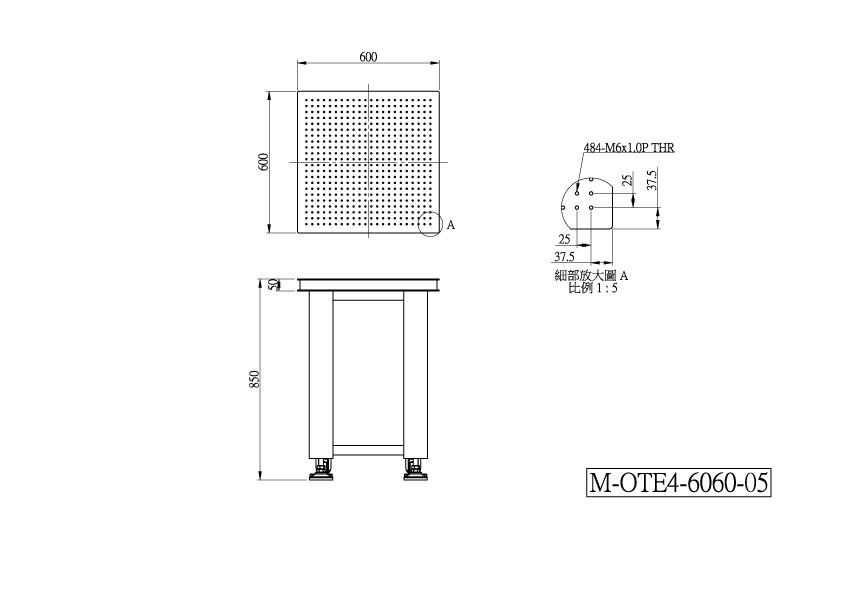

M-OTE4-6060-05

600x600mm, 850mm Fram Height, 50mm thick Honeycomb Breadboard

Contact us
US$1994.92

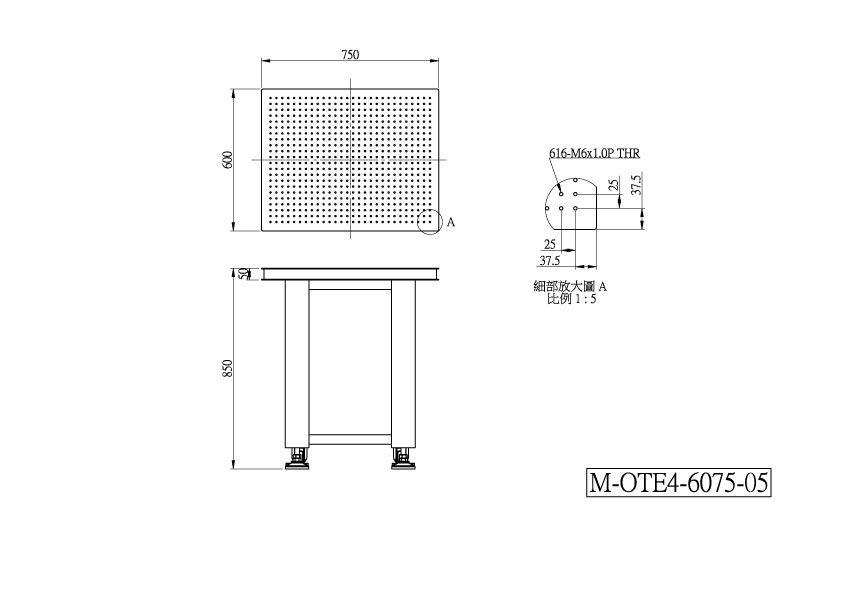

M-OTE4-6075-05

600x750mm ,850mm Frame Height, 50mm thick Honeycomb Breadboard

Contact us
US$2121.86

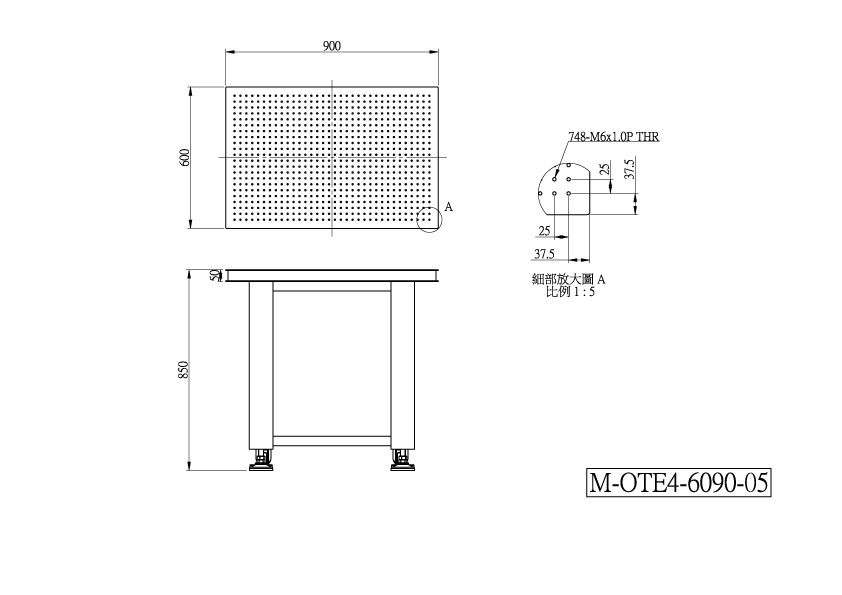

M-OTE4-6090-05

600x900mm ,850mm Frame Height, 50mm thick Honeycomb Breadboard

Contact us
US$2285.08

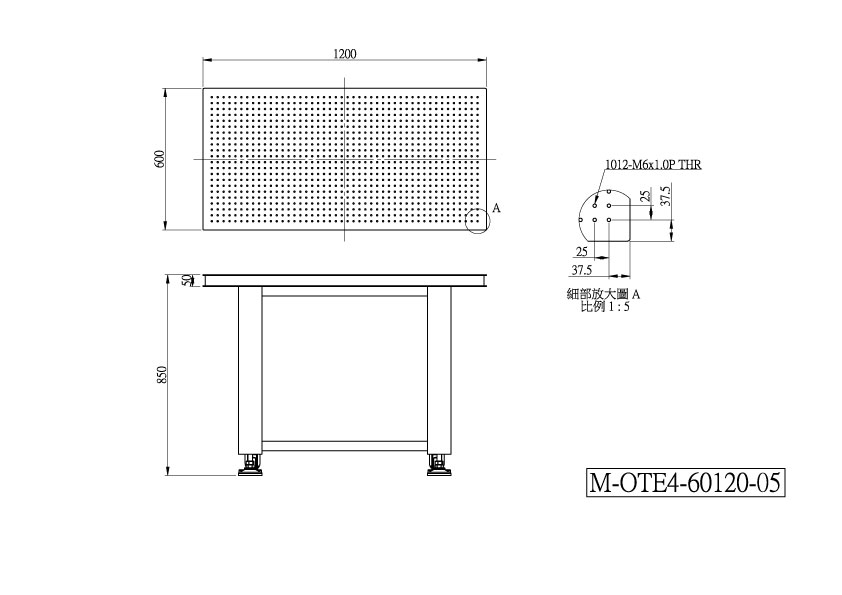

M-OTE4-60120-05

600x1200mm,850mm Frame Height, 50mm thick Honeycomb Breadboard

Contact us
US$2575.25

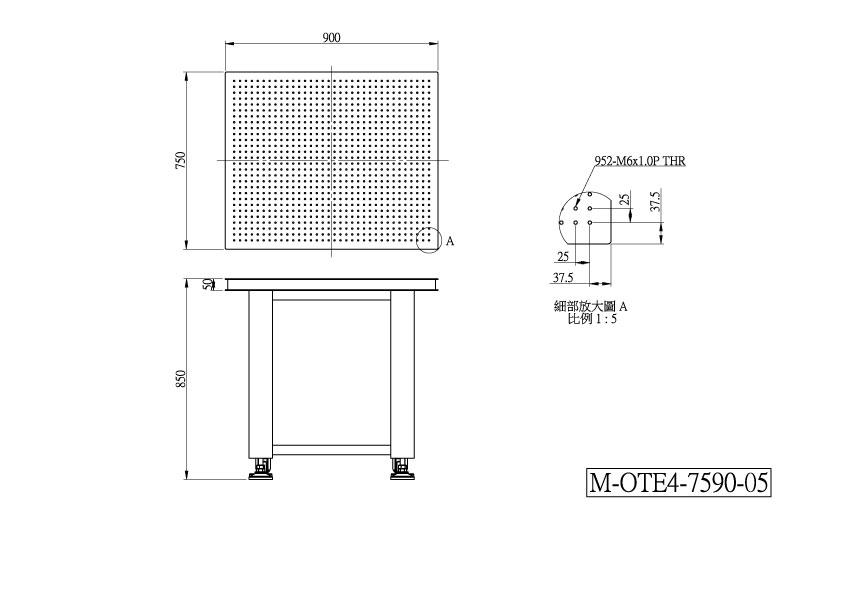

M-OTE4-7590-05

750x900mm,850mm Frame Height, 50mm thick Honeycomb Breadboard

Contact us
US$2495.46
