  6. TCR20-05 Series

Specification
 • Platform Size : 20mm x 20mm
 • Driver : 100TPI Screws center drive
 • Travel : ±6.5mm
 • Straightness : ±3um
 • Material : Aluminum 、Anodized Black

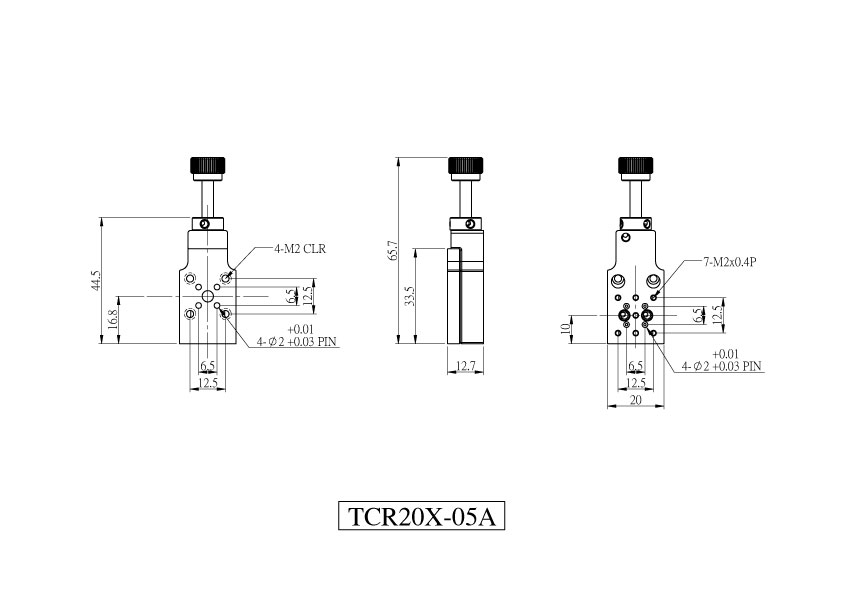

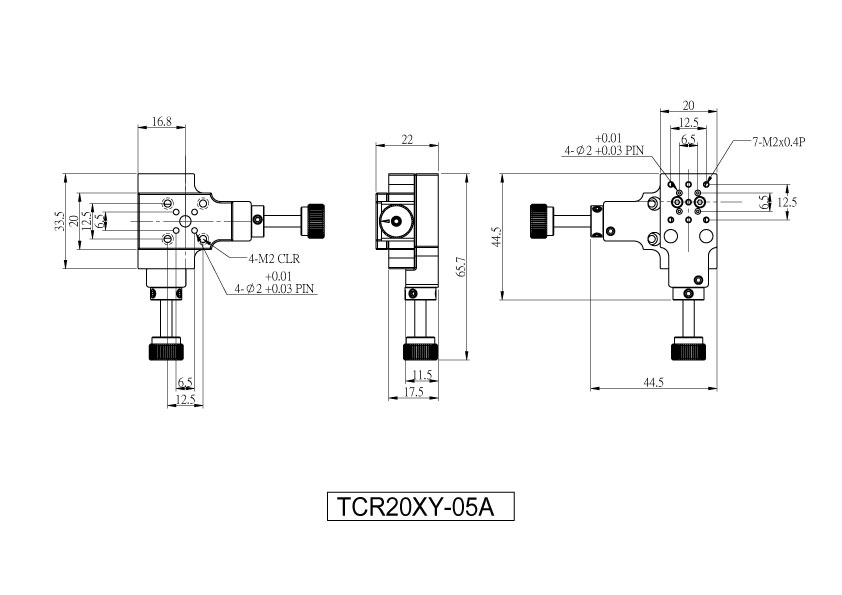

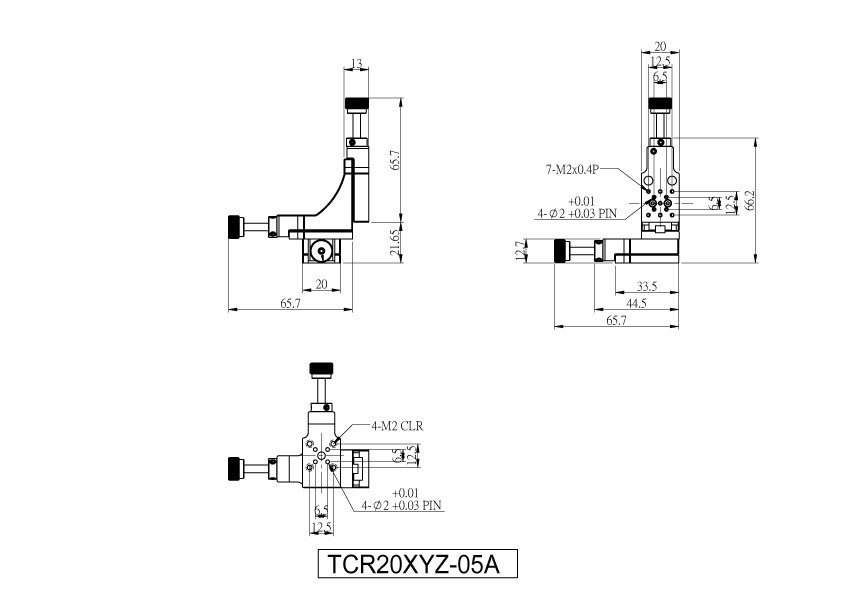

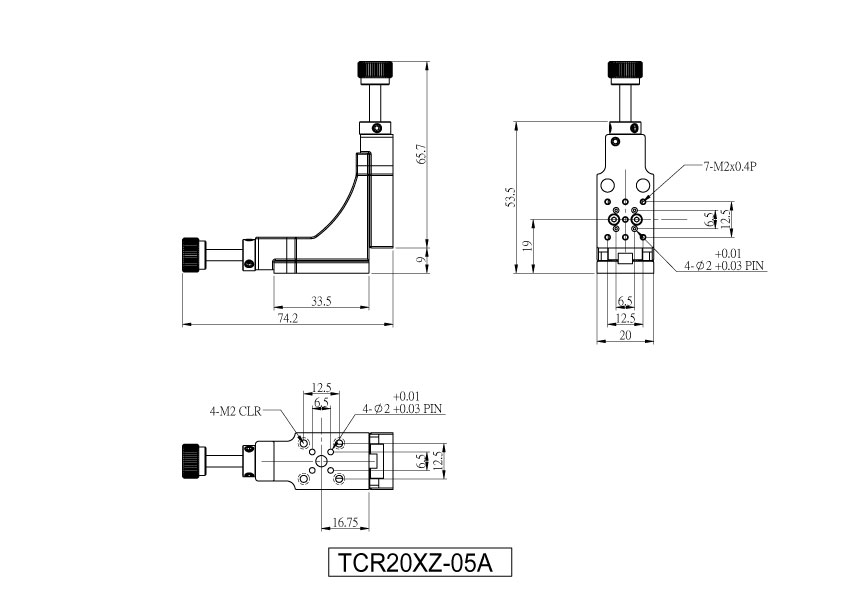

2D-Drawing



TCR20-05-series

• The TCR20X series platform utilizes miniature linear rails, boasting characteristics of high rigidity and low operational noise. It offers precise linear motion and high load capacity, enabling precise layouts within compact forms. It is complemented by a 100TPI precision screw for center drive.

• The integrated vertical Z-axis design provides stability in the vertical direction, allowing it to achieve smooth operation.







Part Number/Description Delivery Price Qty. Add to Cart
M-TCR20X-05A

20mm x 20mm Dimensions / 13mm mm Travel / Center Drive Adjustment Screw(100TPI) / X-axis
In Stock
US$255.17
M-TCR20XY-05A

20mm x 20mm Dimensions / 13mm mm Travel / Center Drive Adjustment Screw(100TPI) / XY-axis
In Stock
US$500.00
M-TCR20XZ-05A

20mm x 20mm Dimensions / 13mm mm Travel / Center Drive Adjustment Screw(100TPI) / XZ-axis
In Stock
US$517.24
M-TCR20XYZ-05A

20mm x 20mm Dimensions / 13mm mm Travel / Center Drive Adjustment Screw(100TPI) / XYZ-axis
In Stock
US$724.14
