Specification
 PartNumber
Length
(cm)
 Width
(cm)
T
(cm)
 M-PAB-1010-10 10 10 1.0
 M-PAB-1515-10 15 15 1.0
 M-PAB-1520-10 15 20 1.0
 M-PAB-1530-10 15 30 1.0
 M-PAB-2020-10 20 20 1.0
 M-PAB-2030-10 20 30 1.0
 M-PAB-2040-10 20 40 1.0
 M-PAB-3030-10 30 30 1.0
 M-PAB-3045-10 30 45 1.0
 M-PAB-3060-10 30 60 1.0

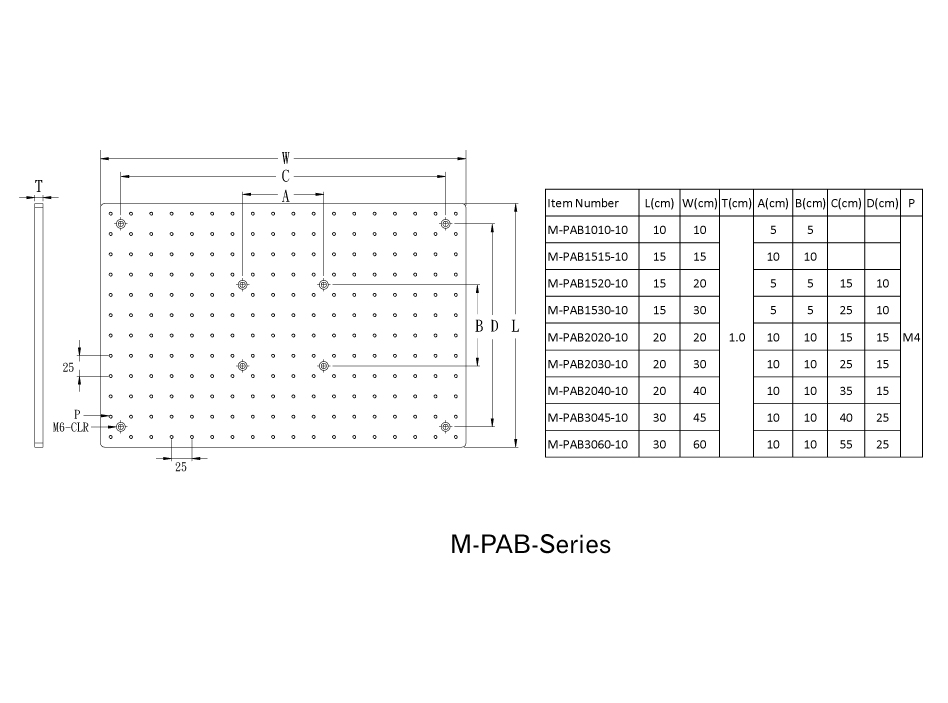

2D-Drawing


Aluminum Breadboard

PAB-series

M4 mounting holes

• Constructed using T6 series aluminum alloy with a black anodized finish, offering excellent hardness. Hole spacing is 25 millimeters or 1 inch, with standard M4 or 1/8x32 thread holes. The array holes are positioned 12.5 millimeters or half an inch from the outer edge, and the threaded holes pass completely through the breadboard, allowing optical components to be mounted on both sides of the breadboard in a single installation.

• Each aluminum plate has 4 to 8 mounting holes, located at the four corners and the center of the breadboard, making it the ideal choice for non-vibration applications.



• Solid aluminum plate with M4 mounting holes on the surface.

• Flatness: 0.2mm/30x30cm2.

• Surface: Low-reflectance anodized aluminum working surface.

• Suitable for general and vacuum environments up to 10-4torr.



Part Number/Description Delivery Price Qty. Add to Cart
M-PAB-1010-10

10x10x(t)1.0 cm / M4-Tap
Contact us
US$96.01
M-PAB-1515-10

15x15x(t)1.0 cm / M4-Tap
Contact us
US$134.65
M-PAB-1520-10

15x20x(t)1.0 cm / M4-Tap

Contact us
US$150.75
M-PAB-1530-10

15x30x(t)1.0 cm / M4-Tap

Contact us
US$164.85
M-PAB-2020-10

20x20x(t)1.0 cm / M4-Tap

Contact us
US$157.12
M-PAB-2030-10

20x30x(t)1.0 cm / M4-Tap

Contact us
US$173.81
M-PAB-2040-10

20x40x(t)1.0 cm / M4-Tap

Contact us
US$195.06
M-PAB-3030-10

30x30x(t)1.0 cm / M4-Tap
Contact us
US$208.36
M-PAB-3045-10

30x45x(t)1.0 cm / M4-Tap

Contact us
US$257.04
M-PAB-3060-10

30x60x(t)1.0 cm / M4-Tap

Contact us
US$323.68
