AGV-series

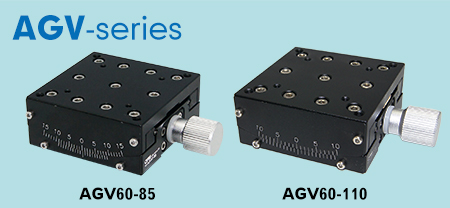

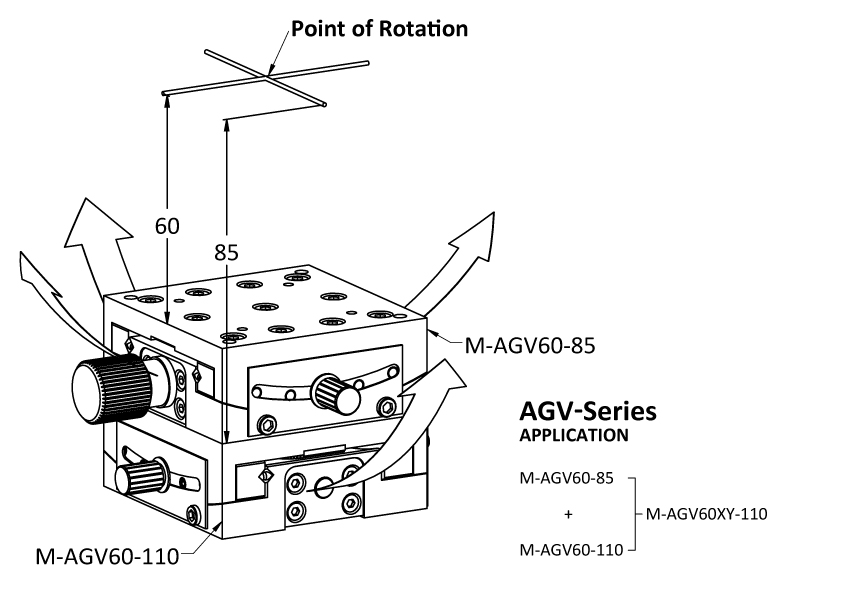

• The AGV series is a type of angular measurement stage designed for rotating around a fixed axis within a small angular range in space. When the AGV60-85 and AGV60-110 are combined to form an XY axis configuration, the two axes' rotation axes align in the same plane to create a central point, and the platform can be locked using the side-mounted fastening screws.

• The dimensions of the AGV platform are all 60 x 60mm, and they come equipped with a turbo worm gear for adjustment, allowing components to be attached through M4 and M3 mounting holes on the surface.

Specification
Item Number Platform Size Actuators Travel Axis Resolution Travel Height of the Center of Rotation
AGV60-85 60 x 60mm  Worm Gear θx 0.1° ±15°  60mm
AGV60-110 60 x 60mm Worm Gear θx 0.1° ±10° 85mm
AGV60XY-110 60 x 60mm Worm Gear θx θy  0.1° ±10°& ±15° 60mm



Part Number/Description Delivery Price Qty. Add to Cart

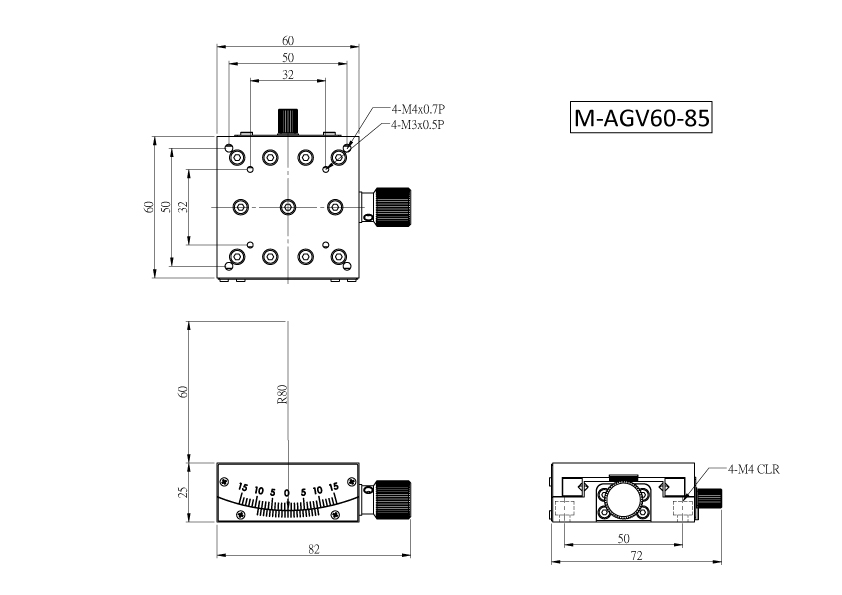

M-AGV60-85

Goniometer Stage / Single-axis adjustment / 30 degrees / worm gear
In Stock
US$251.72

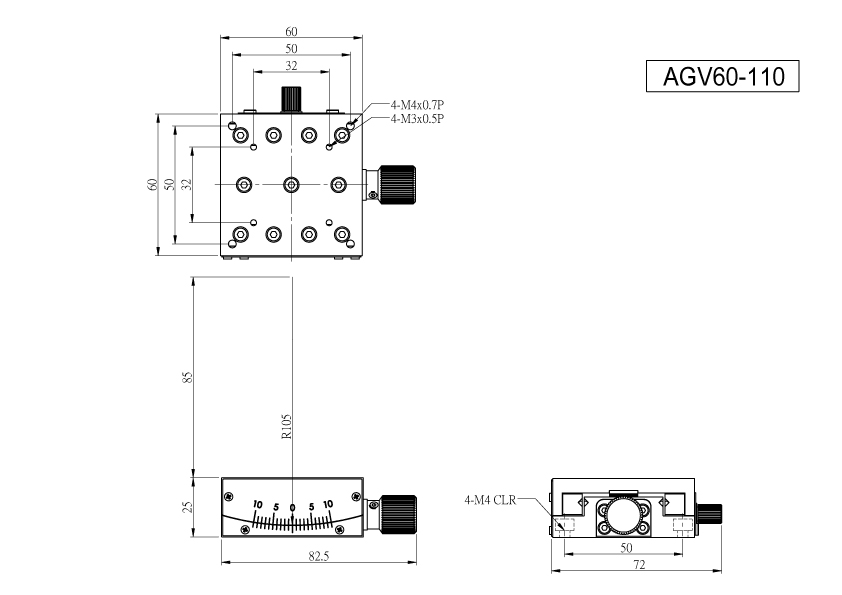

M-AGV60-110

Goniometer Stage / Single-axis adjustment / 20 degrees / worm gear
In Stock
US$251.72

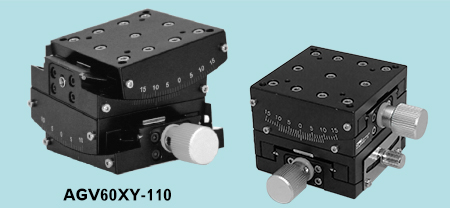

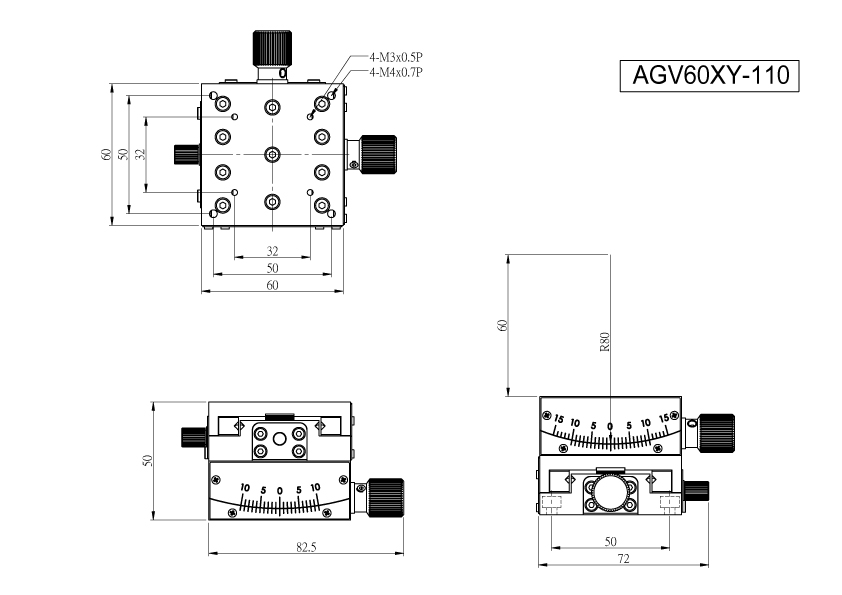

M-AGV60XY-110

Goniometer Stage / 2-axis adjustment / 20 degrees / worm gear
In Stock
US$482.76
