Specification

• Platform Size : 92.5 x 114.5mm

• Actuators : Micrometer

• Pitch Travel : 7°

• Yaw Travel : 7°

• Roll Travel : 7°

• Weight : 1 kg

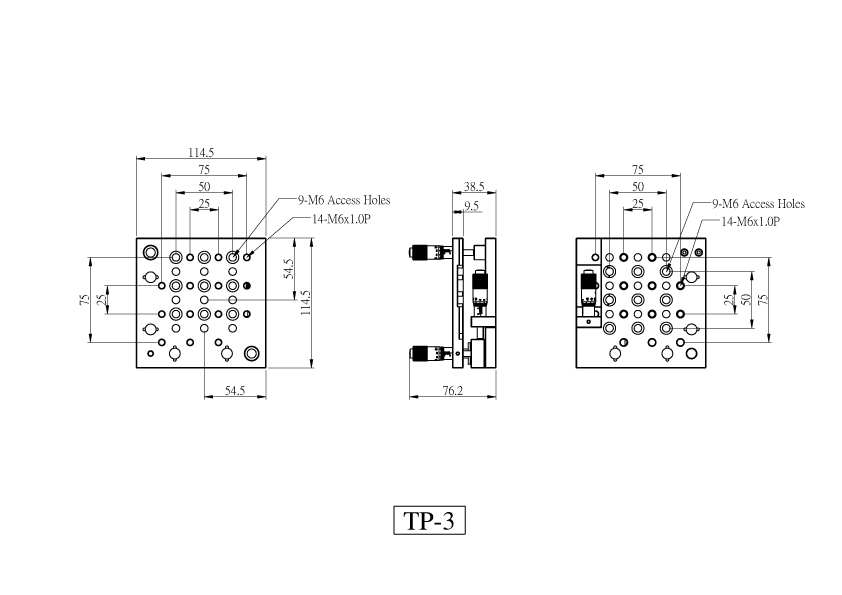

2D-Drawing




 3 axis Tilt Stages

• The TP-3 features three adjustable dimensions (Pitch, Yaw, and Roll) to accommodate optical components for angular adjustments, and it offers a 7-degree fine-pitch card-driven movement.

• The TP-3 platform has dimensions of 92.5 x 114.5mm, and its surface is equipped with M6 holes for component integration.

Part Number/Description Delivery Price Qty. Add to Cart
M-TP-3

3-axis adjustment / 7 degrees / micrometer
In Stock
US$439.66
