2D-Drawing
Click to enlarge Click to enlarge Click to enlarge Click to enlarge

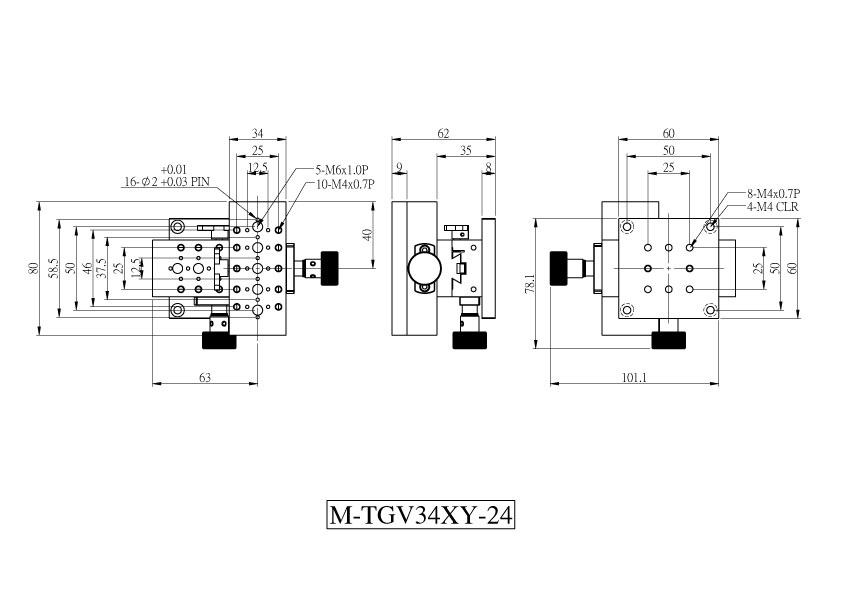

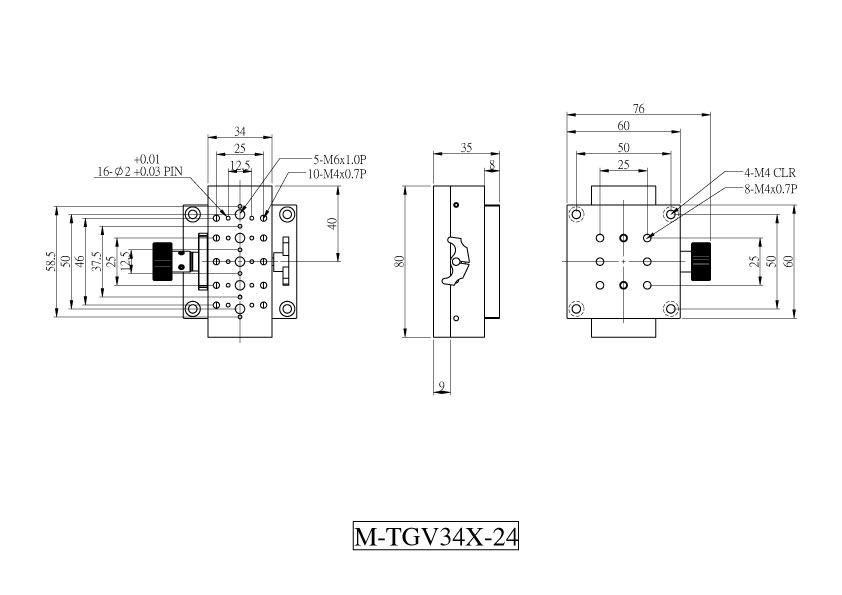

TGV34-24-series

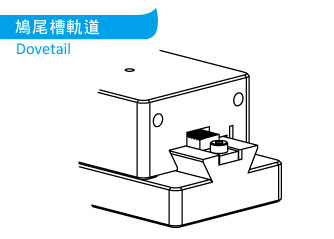

• The TGV34 series utilizes a dovetail groove-style rail and rack-and-pinion structure, suitable for platforms with rapid movement and long travel displacement.

• All are equipped with M4x0.7P and M6x1P threaded hole arrays.

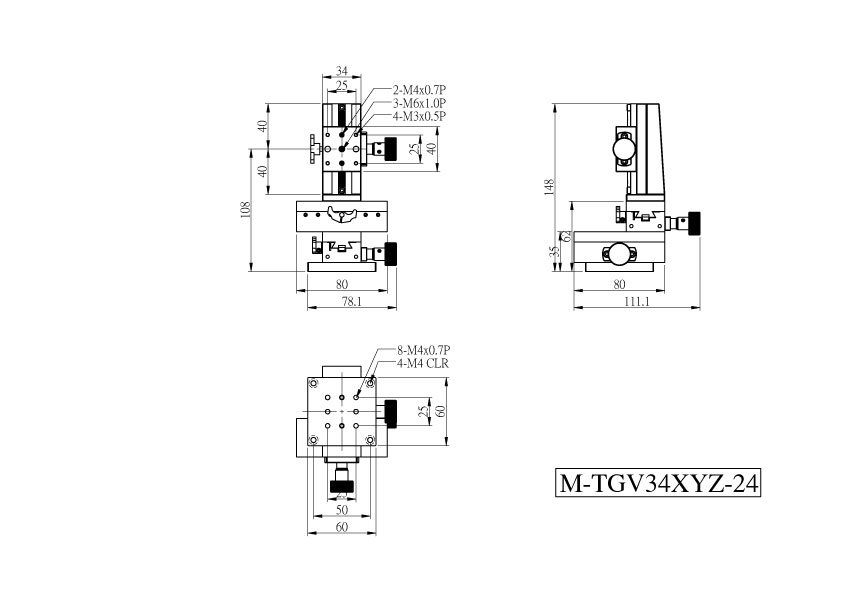

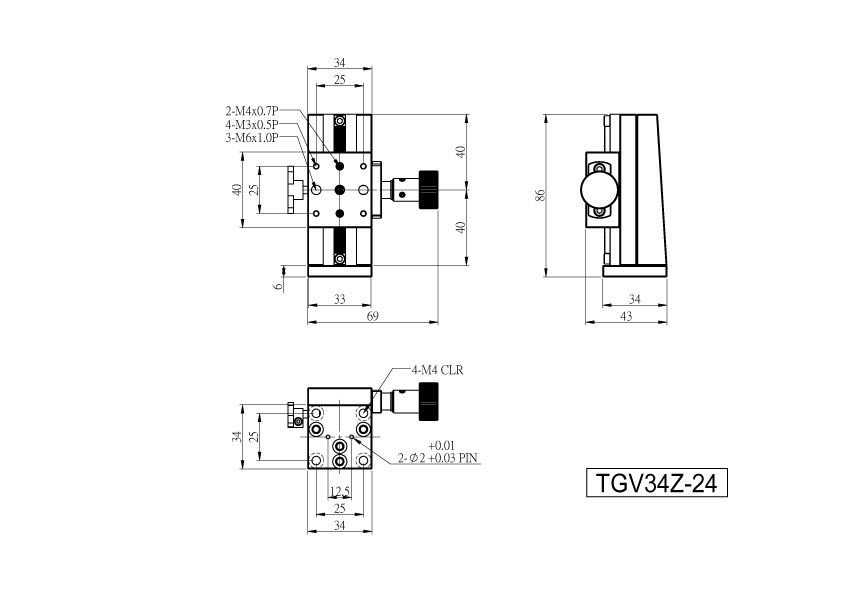

• Two TGV34X platforms can be combined to create a TGV34XY, and with the addition of TGV34Z, it can be assembled into a TGV34XYZ three-axis platform.
