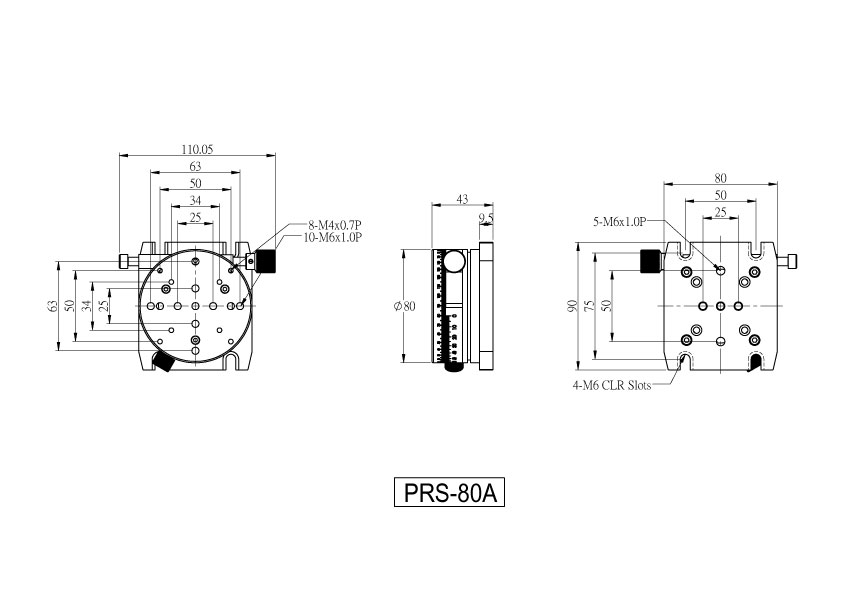

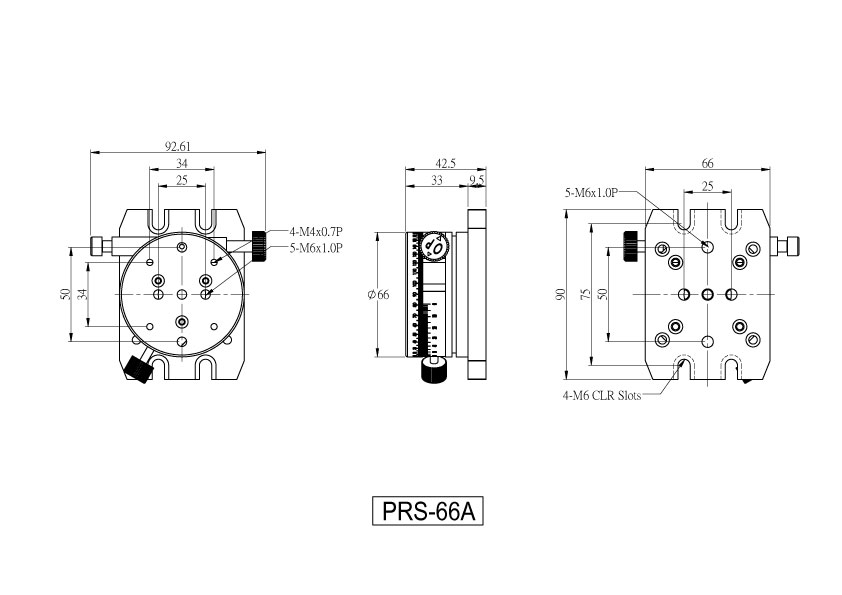

2D-Drawing
Click to enlarge Click to enlarge

PRS-series

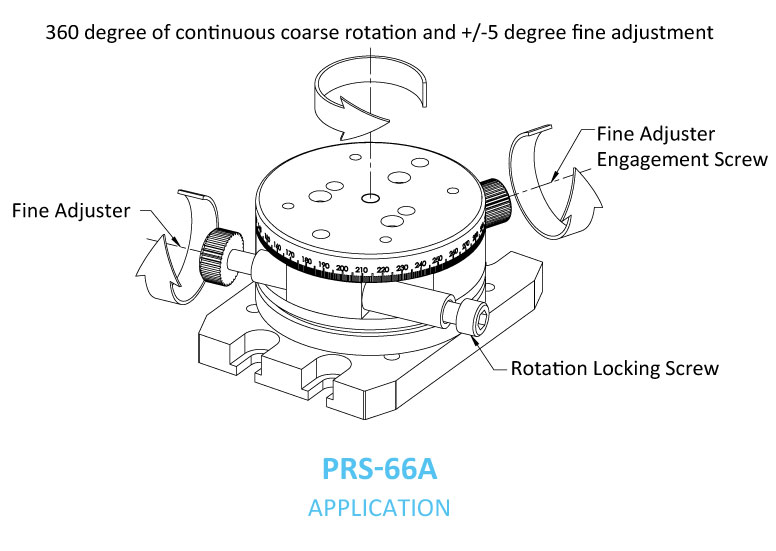

• Continuous 360° coarse adjustment rotation, ±5° fine tuning.

• Precision adjustment within a 10-degree range.

• The top platform can be manually rotated for quick and straightforward operation. Adjacent 100TPI adjustment screws provide high-precision movement and rotational control, achieving a resolution of 0.1 degrees using primary and secondary scales.

• The precise ball bearing structure offers high friction reduction capabilities, making it suitable for small control movements.
