MSL300-380-R10
MSL300-380-R10
  • MSL300-380-R10

MSL300-380-R10

MSL300-380-R10

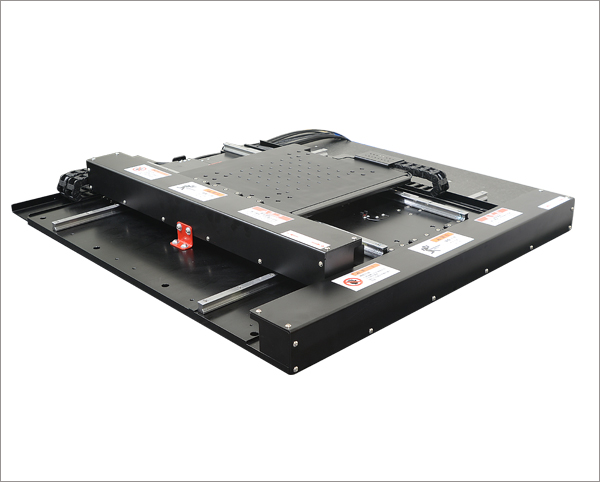

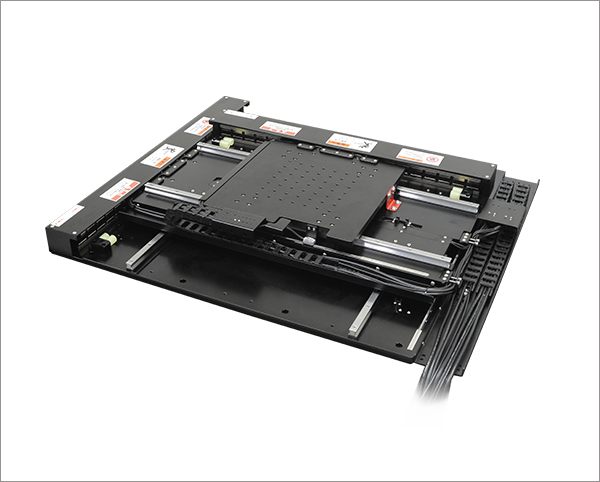

XY-Linear Motor Stage
Resolution:
1um
Travel :
380mmx380mm
Repeatability :
+/- 3um
Loading : 20Kg
2D drawing :  3D STEP :

Delivery : Inquiry

Price:US$ Inquiry

Qty:

Specifications
Compare MSL300-380-R01 MSL300-380-R10
Travel 380 mm X 380 mm
Resolution  0.1um 1um
Repeatability
Loading 20Kg
Peak Force 521 N @120°C
Continuous Force 104 N @120°C
Price contact us



No.1

MSL300-380-R10

PDF

No.2

MSL300-380-R10

STEP
