JT640-350

2-JT640-350-C7

2-JT640-350-C7 | (尺寸: 640mmX640mm)

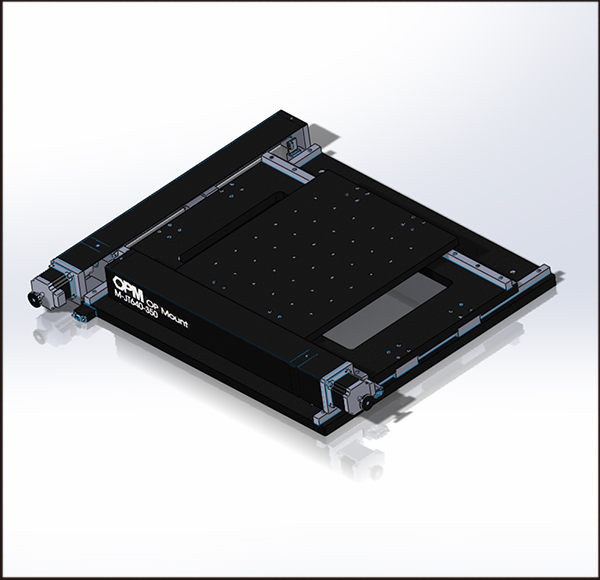

Motorized XY Linear Stage
Platform Size :
400X340mm
Travel Range :
X=350mm,Y=350mm
Resolution 1600 Rev : 2.5um
Screw Positioning Accuracy : ±50um/300mm
2 Phase Stepping Motor
2D drawing :  3D STEP :

weight : 19KG  Delivery : Inquiry

Price:US$4710.34

Qty:

Item Number 2-JT640-350-C7
Platform Size 400X340mm
Travel Range X=350mm,Y=350mm
Resolution 1600 Rev 2.5um
Screw Positioning Accuracy ±50um/300mm
Repeatability ≤3um
Parallelism 50um
Capacity 40kg
Weight 19Kg




No.1

JT640-350

PDF

No.2

JT640-350

STEP
