JTH360-250

2-JTH360-250-200-C7

2-JTH360-250-200-C7 | (尺寸: 190mmX290mm)

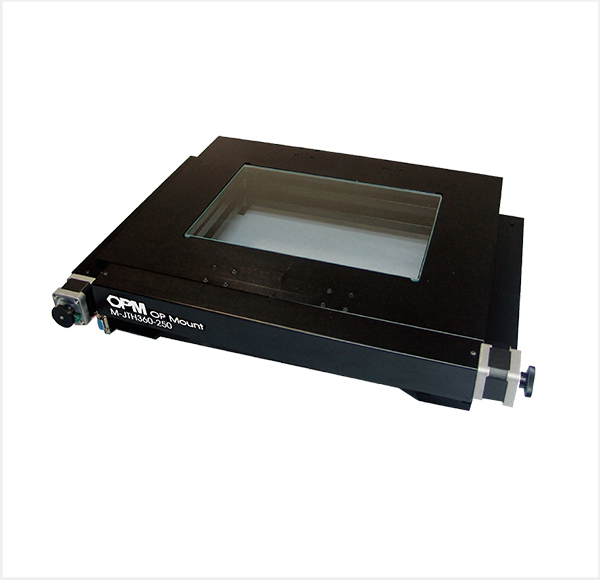

Motorized XY Linear Stage for Microscope
Clear Aperture:
190x290mm
Platform Size :
360X360mm
Travel Range :
X=250mm,Y=200mm
Resolution 1600 Rev : 1.25um
Screw Positioning Accuracy : ±50um/300mm
2 Phase Stepping Motor
2D drawing :  3D STEP :

Delivery : Inquiry

Price:US$3827.59

Qty:

Item Number 2-JTH360-250-200-C7
Clear Aperture 190x290mm
Platform Size 360X360mm
Travel Range X=250mm,Y=200mm
Resolution 1600 Rev 1.25um
Screw Positioning Accuracy ±50um/300mm
Repeatability ≤3um
Parallelism 30um
Weight 10Kg



No.1

M-JTH360-250

PDF

No.2

M-JTH360-250

STEP


Precautions:

1.Please contact our sales team for ordering Optical Tables and calculating shipping cost.

2.If the weight exceeds 21 kg, please contact us and we will calculate the shipping cost and estimate the delivery date separately.

3.If you're willing to use the ocean shipment, please contact us.

4.If you're ordering more than 50 pcs for one product, please contact us.

5.The checkout amount may be slightly different from the international exchange rate, so you can refer to the exchange rate from the Bank of Taiwan. Website of the Bank of Taiwan: http://rate.bot.com.tw/xrt?Lang=en-US

6.The actual shipping cost might not be totally the same as the estimated shipping cost.
