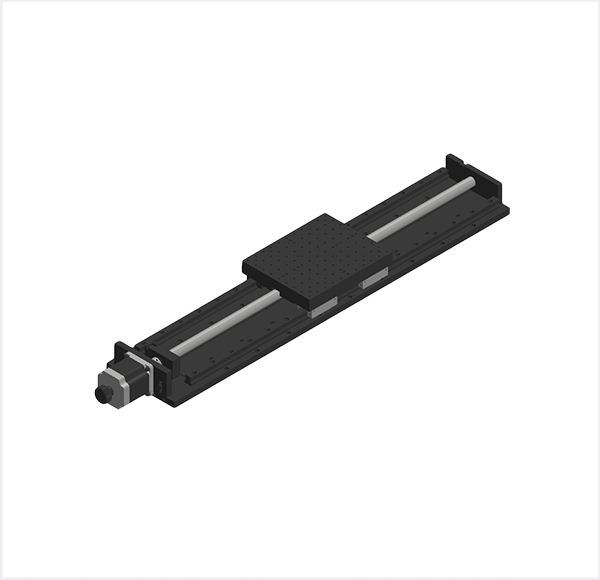

M-MTP220-700-C7

M-MTP220-700-C7

M-MTP220-700-C7 | (尺寸: 220mmX220mm)

weight : 41KG  Delivery : Inquiry

Price:US$3793.10

Qty:

Item Number Platfrom Travel Range Resolution 1600 Rev Screw Positioning Accuracy Repeatability Loading Weight Kg
M-MTP220-700-C7 220mmX220mm 700mm 3.2um ±50um/300mm ±3um 50Kg 41 kg



No.1

M-MTP220-700

PDF

No.2

M-MTP220-700

STEP


Precautions:

1.Please contact our sales team for ordering Optical Tables and calculating shipping cost.

2.If the weight exceeds 21 kg, please contact us and we will calculate the shipping cost and estimate the delivery date separately.

3.If you're willing to use the ocean shipment, please contact us.

4.If you're ordering more than 50 pcs for one product, please contact us.

5.The checkout amount may be slightly different from the international exchange rate, so you can refer to the exchange rate from the Bank of Taiwan. Website of the Bank of Taiwan: http://rate.bot.com.tw/xrt?Lang=en-US

6.The actual shipping cost might not be totally the same as the estimated shipping cost.
