Expand Model
Desktop Size
(mm)
Height
(mm)
Thicknes
(mm)

OTA4-90120-20 900X1200 850 200

OTA4-90150-20 900x1500 850 200

OTA4-90180-20 900x1800 850 200

OTA4-100200-20 1000x2000 850 200

OTA4-120120-20 1200x1200 850 200

OTA4-120150-20 1200x1500 850 200

OTA4-120180-20 1200x1800 850 200

OTA4-120200-20 1200x2000 850 200

OTA4-120240-20 1200x2400 850 200

OTA4-120300-20 1200x3000 850 200

Stabilized Optical Table Systems(Over 1.2 meters)

OTA4-T20-series

OP Mount's floating table leg structure with a pendulum system to dampen vibrations in both vertical and horizontal directions. Each support leg can bear a load of 250 kg (excluding the weight of the optical table), achieving 1.5Hz, 95% vibration isolation through a honeycomb structure, pendulum suspension, three-point leveling, and stabilizing devices.

The platforms feature standard array holes M6 (1/4-20 thread), with a distance of 1.5 inches (37.5 mm) from the edge of the platform.

• Equipped with a 200mm thick optical honeycomb plate made of SUS430.

• Assembly structure for easy transport and installation, with attached mobile casters.

• Customizable heights available according to customer requirements.


Part Number/Description Delivery Price Qty. Add to Cart

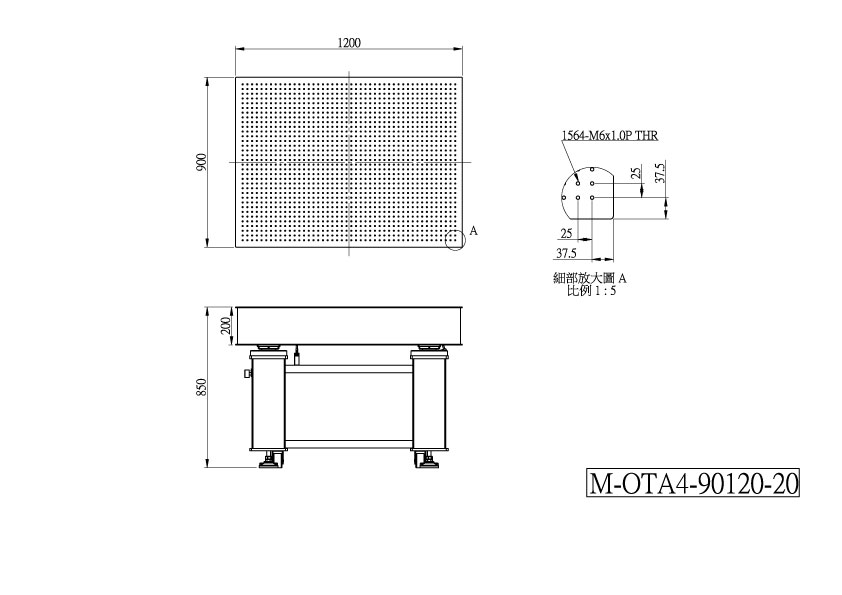

M-OTA4-90120-20

900X1200mm ,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$5071.43

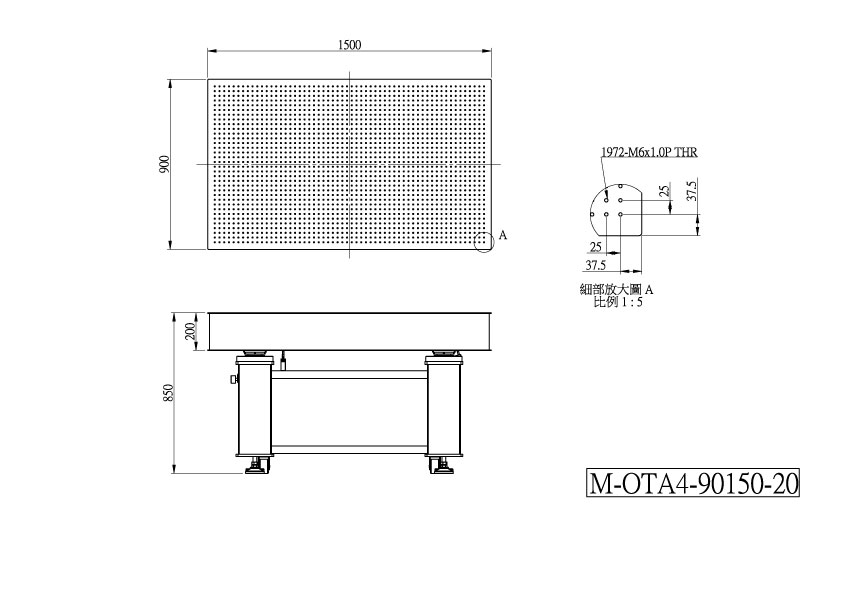

M-OTA4-90150-20

900x1500mm ,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$5321.43

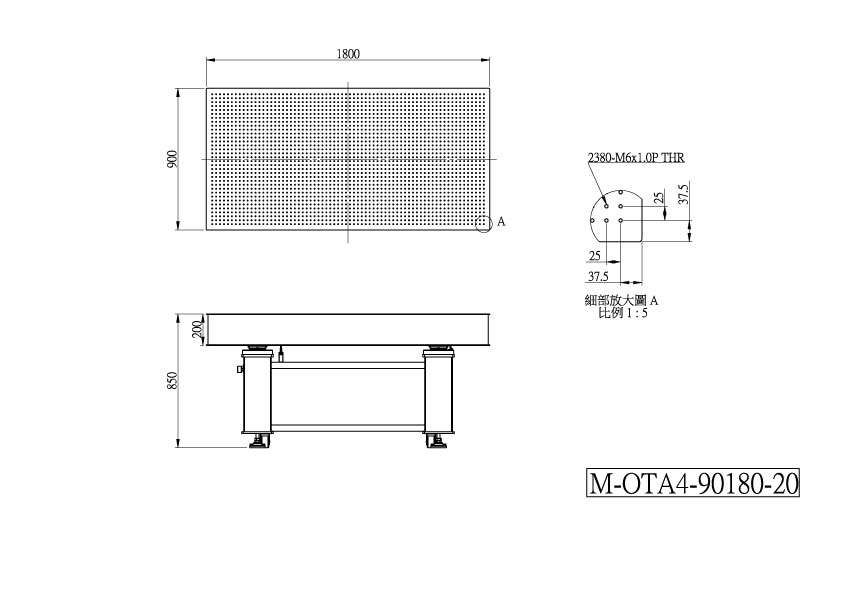

M-OTA4-90180-20

900x1800mm ,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$5564.29

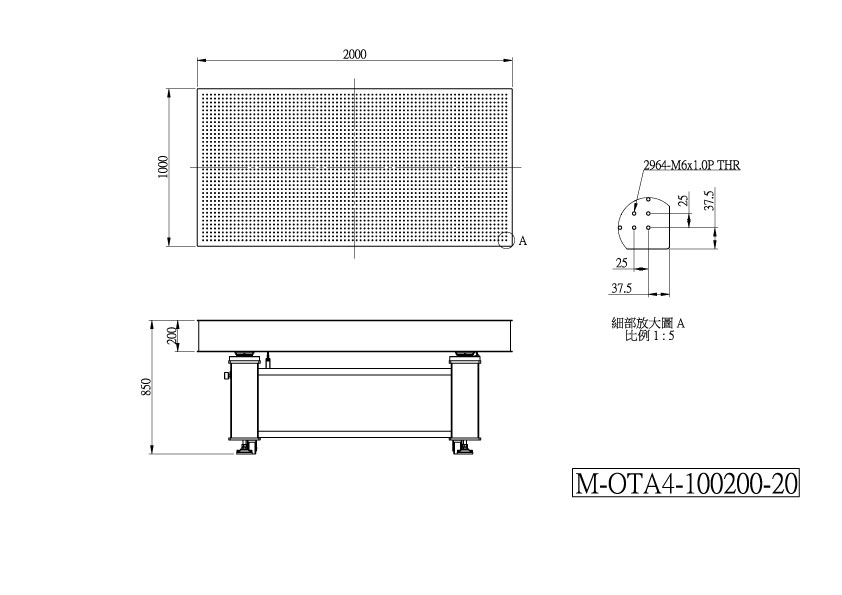

M-OTA4-100200-20

1000x2000mm ,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$6196.43

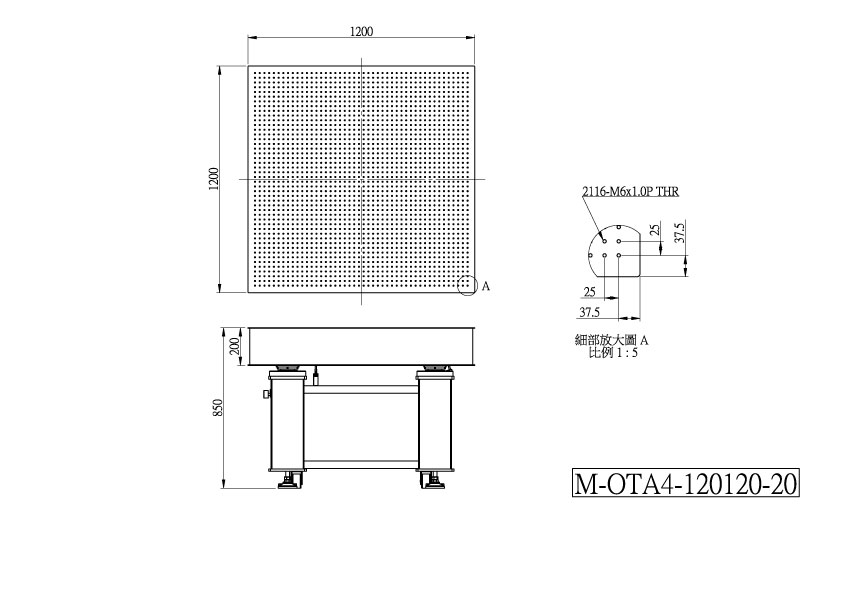

M-OTA4-120120-20

1200x1200mm ,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$5339.29

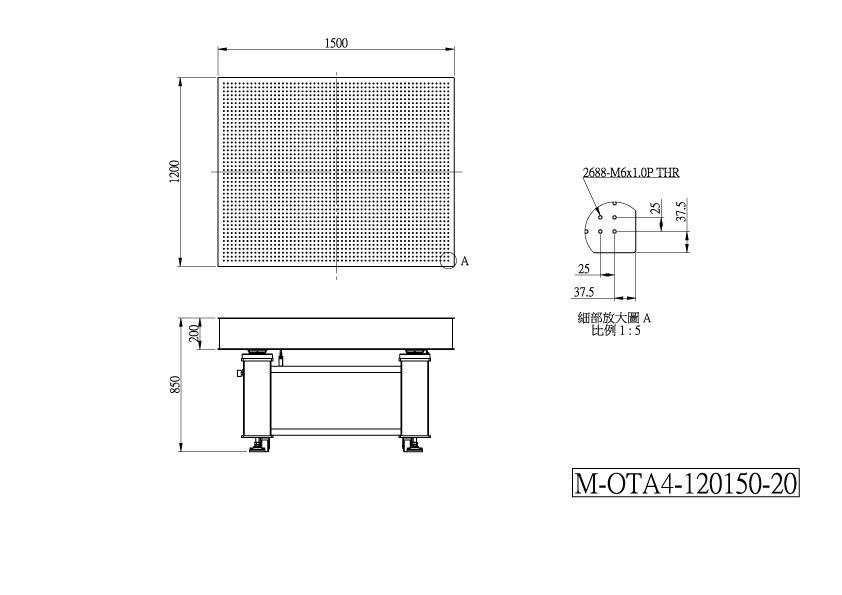

M-OTA4-120150-20

1200x1500mm ,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$5750.00

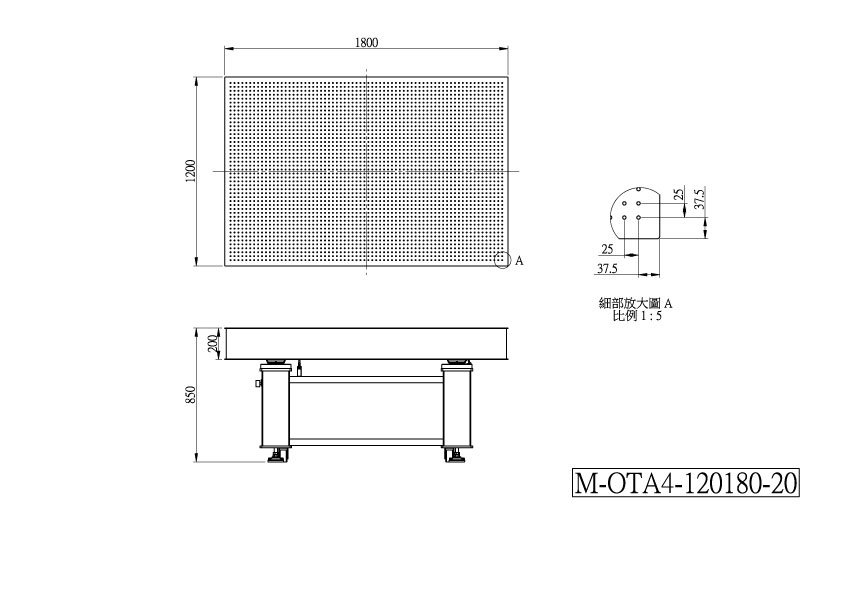

M-OTA4-120180-20

1200x1800mm ,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$6214.29

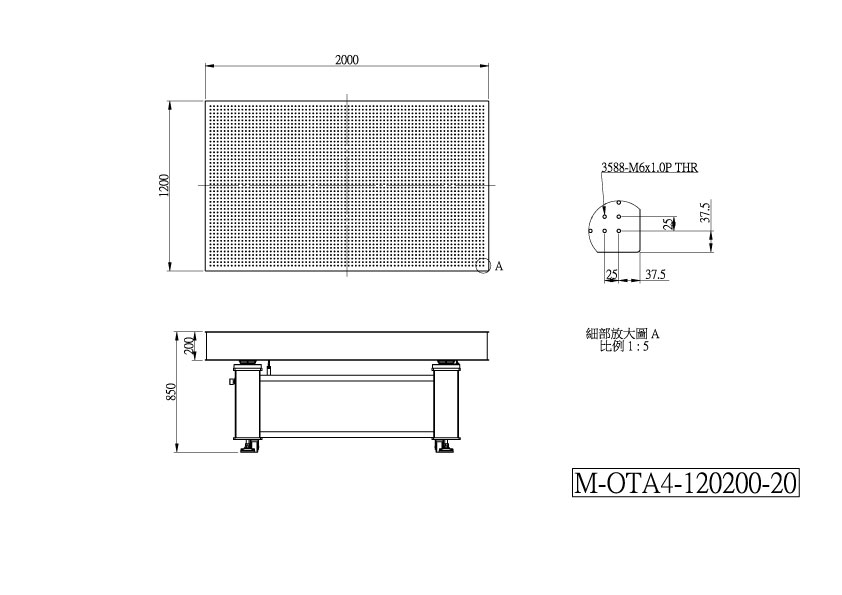

M-OTA4-120200-20

1200x2000mm ,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$6457.14

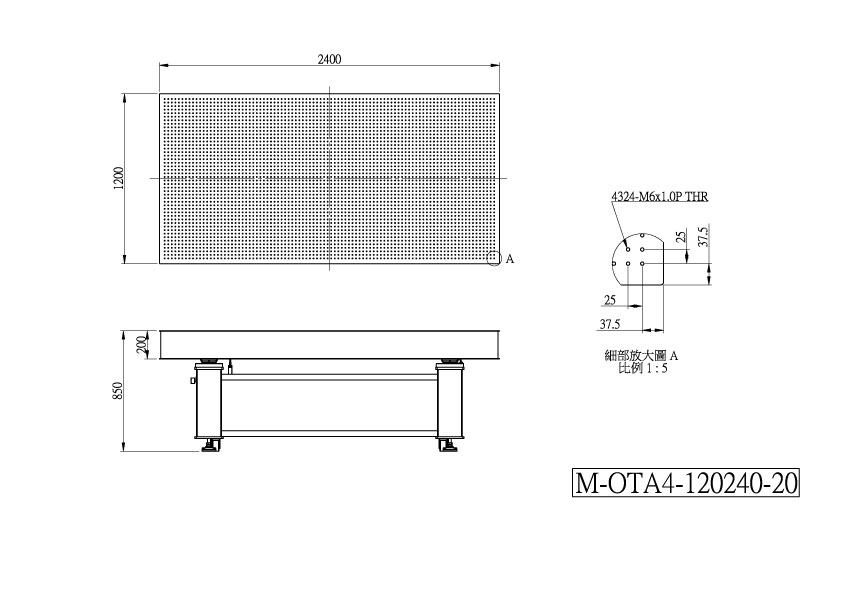

M-OTA4-120240-20

1200x2400mm ,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$6803.57

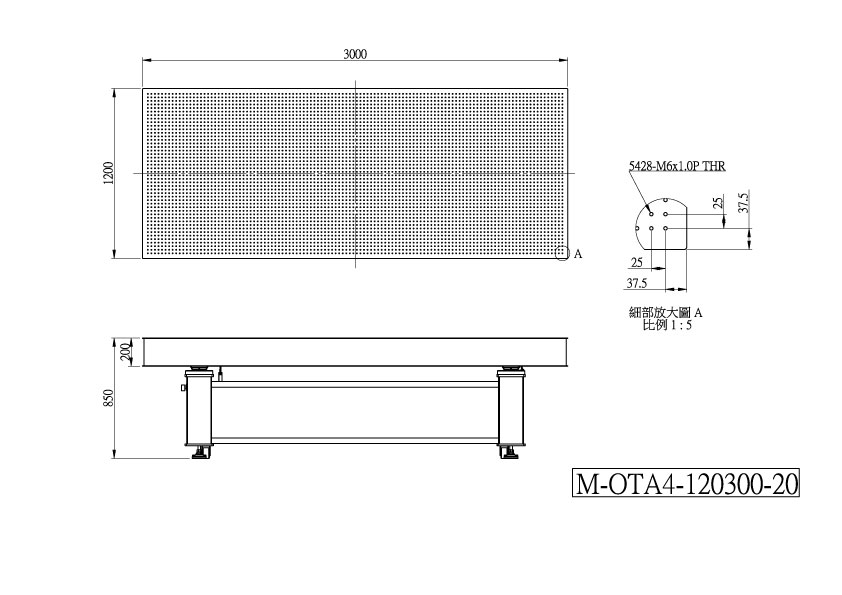

M-OTA4-120300-20

1200x3000mm ,850mm Frame Height, 200mm thick Honeycomb Breadboard

Contact us
US$7892.86
