TCM53-1-series

• The central drive facilitates precise adjustments.

• The TCM53 series stage utilizes a steel Cross Roller Bearing track design, providing high rigidity, high load capacity, low friction, and low operating noise. It is well-suited for high-precision displacement applications. To ensure user convenience, we offer two driving options: micrometer card and 100TPI precision screws.

• This product constrains the sliding stage to move within the range of the baseplate, eliminating the need to allocate extra space for stage movement. As a result, it is better suited for some more specific layouts.

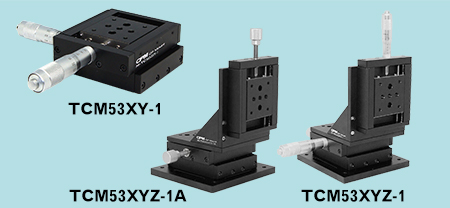

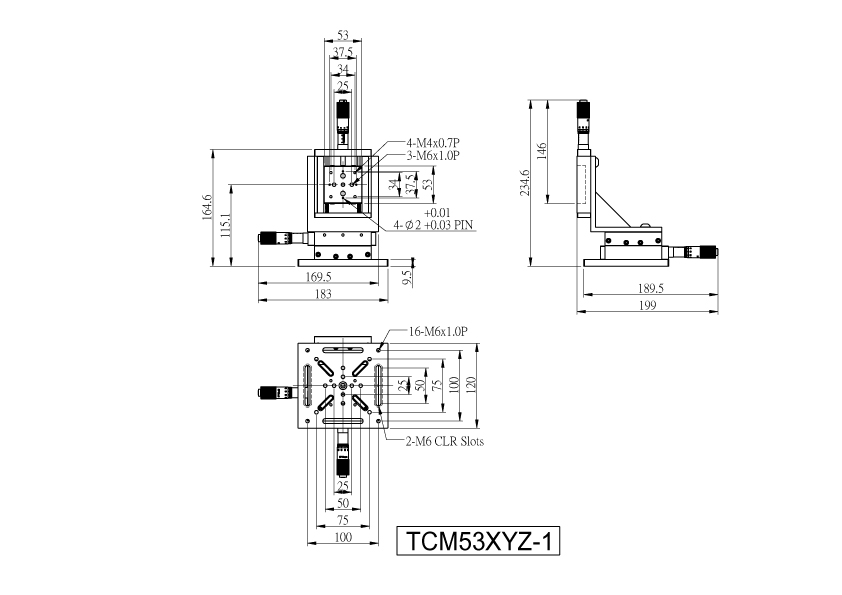

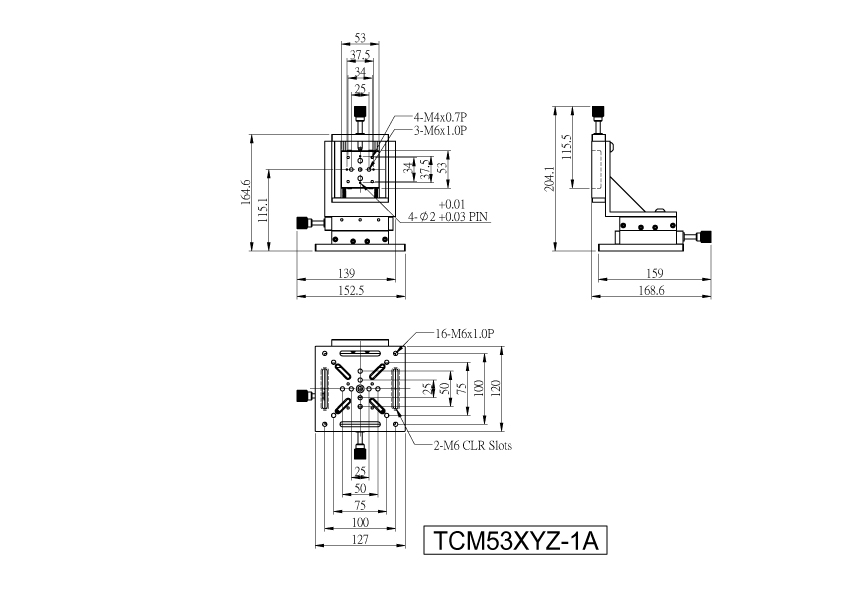

• The TCM53XYZ series, when combined with the SB-2 baseplate and the AB-2 vertical block, forms a three-axis translation stage.

Note:The product will be discontinued when sold out.
