TCSJ40-05-series

• The TCSJ series features a steel cross roller track design, which provides high rigidity, high load capacity, low friction, and low operational noise. It is suitable for high-precision displacement applications. Additionally, considering convenience of use, it offers two options for the installation direction of the micrometer head on the sub-division card side.

• The installation method of the micrometer head on the sub-division card side in the TCSJZ series is different from typical linear stages. When used in a vertical orientation, it can avoid the issue of the stage tabletop dropping due to excessive load.(Please refer to the diagram on the right below for details.)

Choosing an appropriate position for vertically placing the translation stage can solve the issue of platform dropping.
Specification
Platform size Driver Travel Resolution Straightness Capacity
40 x 40mm
Micrometer
Center Driver
±6.5mm 10um 20um 19.8N(Horizontal) 9.8N(vertical)




Part Number/Description Delivery Price Qty. Add to Cart

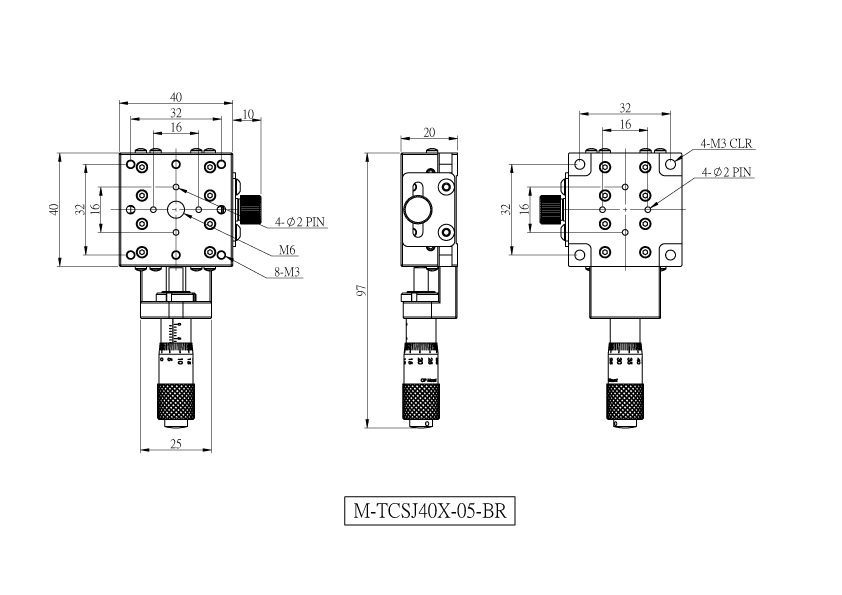

M-TCSJ40X-05-BR

V-Grooved Crossed Roller Guide/0.5" Travel/Center Drive/10um Micrometer

In stock
US$206.55

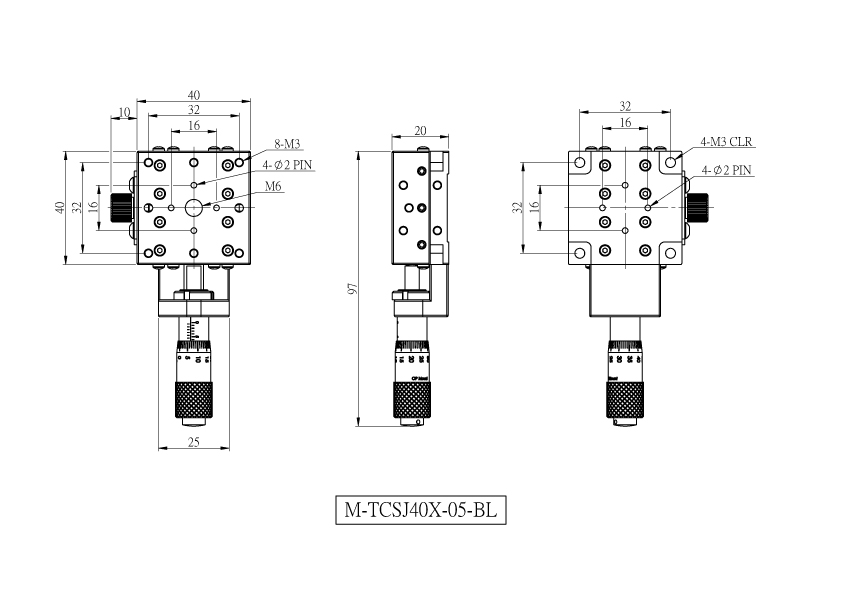

M-TCSJ40X-05-BL

V-Grooved Crossed Roller Guide/0.5" Travel/Center Drive/10um Micrometer

In stock
US$206.55

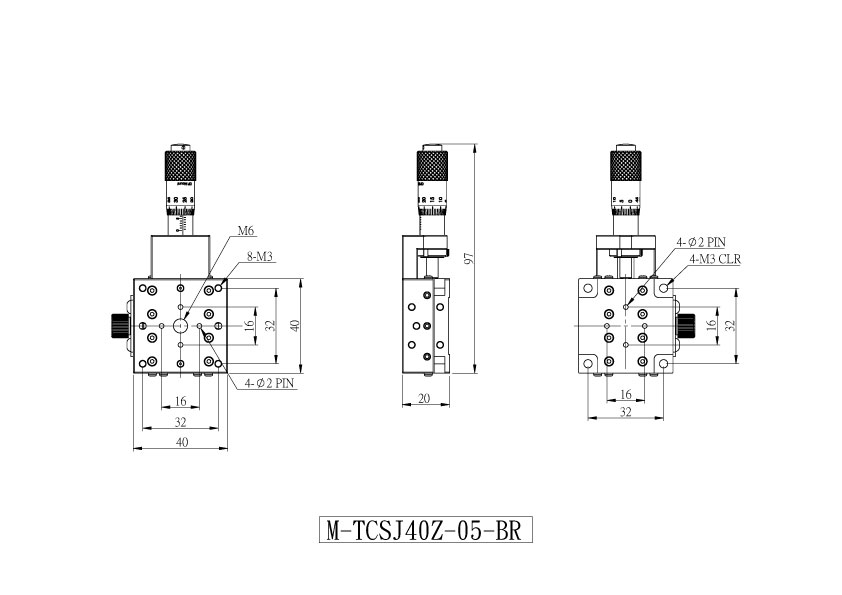

M-TCSJ40Z-05-BR

V-Grooved Crossed Roller Guide/0.5" Travel/Center Drive/10um Micrometer

In stock
US$262.76

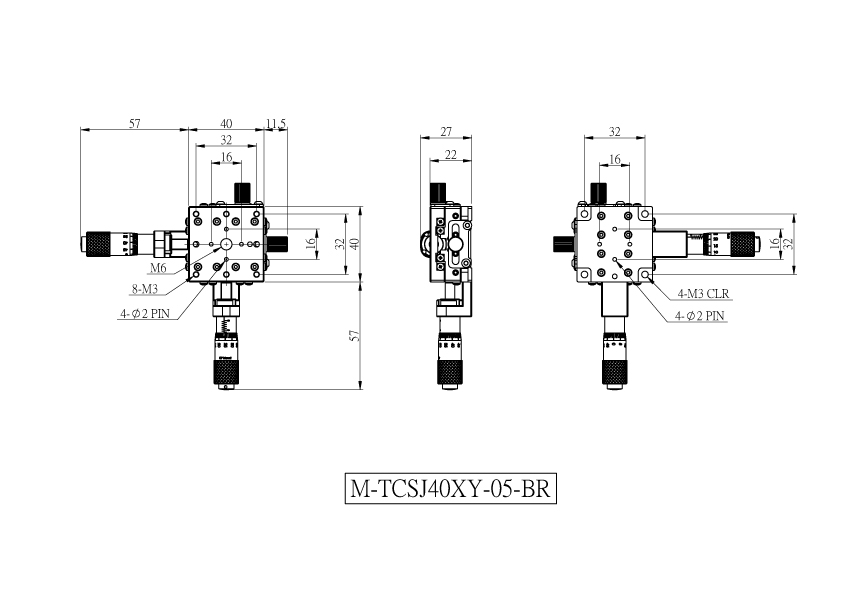

M-TCSJ40XY-05-BR

V-Grooved Crossed Roller Guide/0.5" Travel/Center Drive/10um Micrometer

In stock
US$413.79

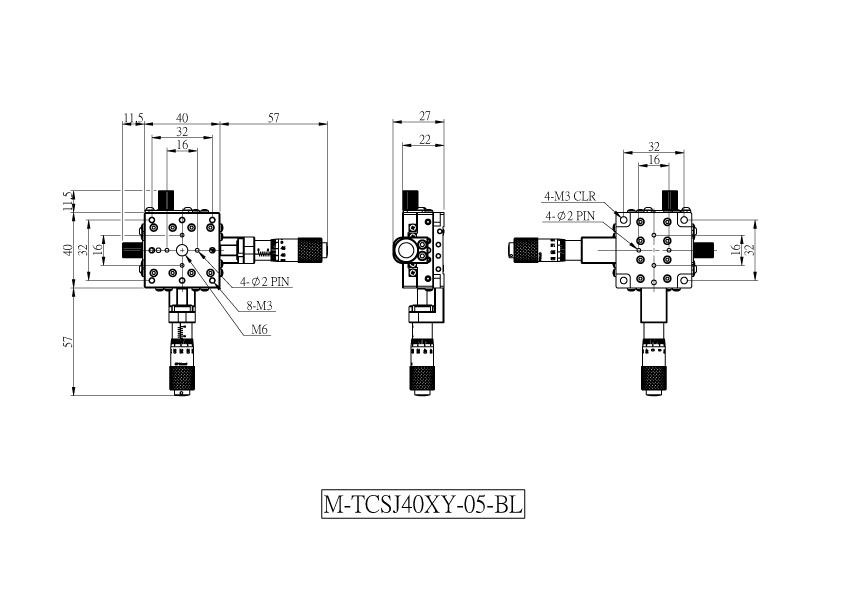

M-TCSJ40XY-05-BL

V-Grooved Crossed Roller Guide/0.5" Travel/Center Drive/10um Micrometer

In stock
US$413.79

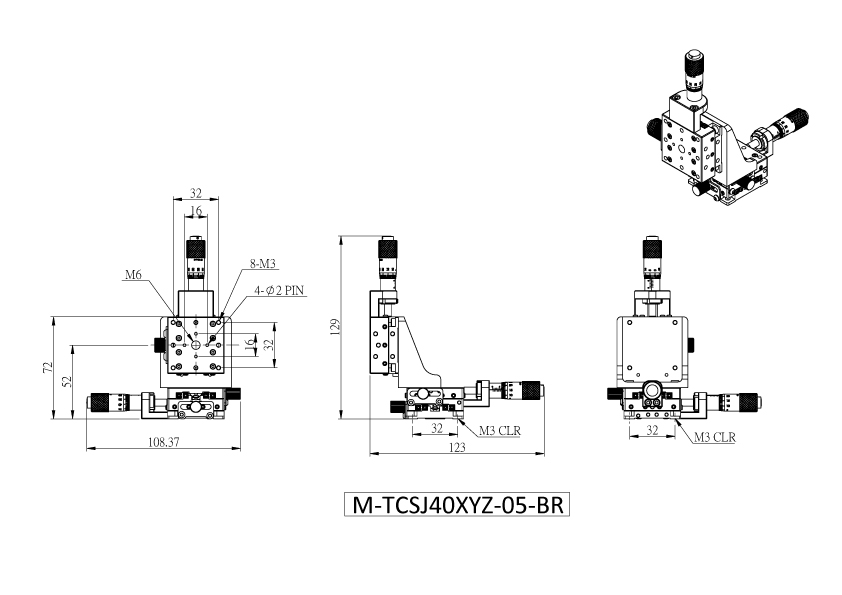

M-TCSJ40XYZ-05-BR

V-Grooved Crossed Roller Guide/0.5" Travel/Center Drive/10um Micrometer/Right-Hand

In stock
US$655.17

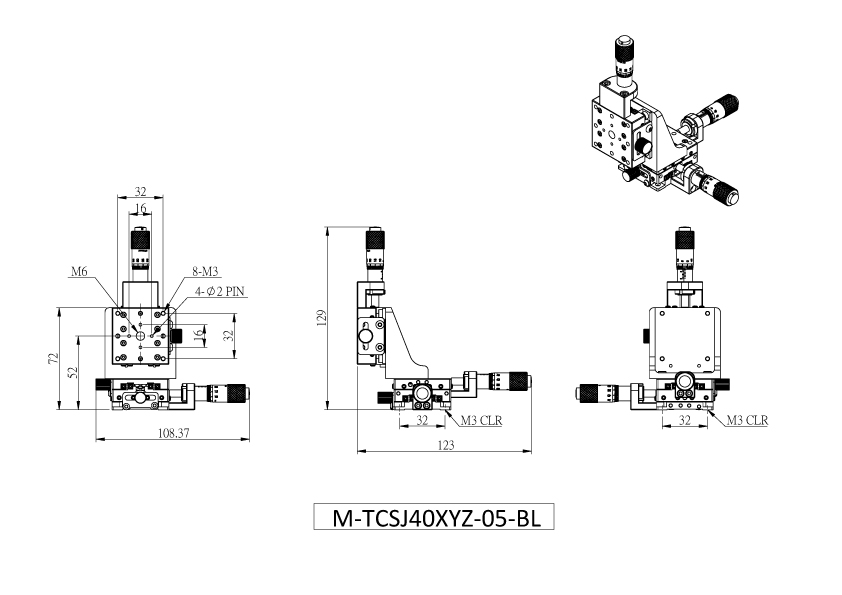

M-TCSJ40XYZ-05-BL

V-Grooved Crossed Roller Guide/0.5" Travel/Center Drive/10um Micrometer/Left-Hand

In stock
US$655.17
