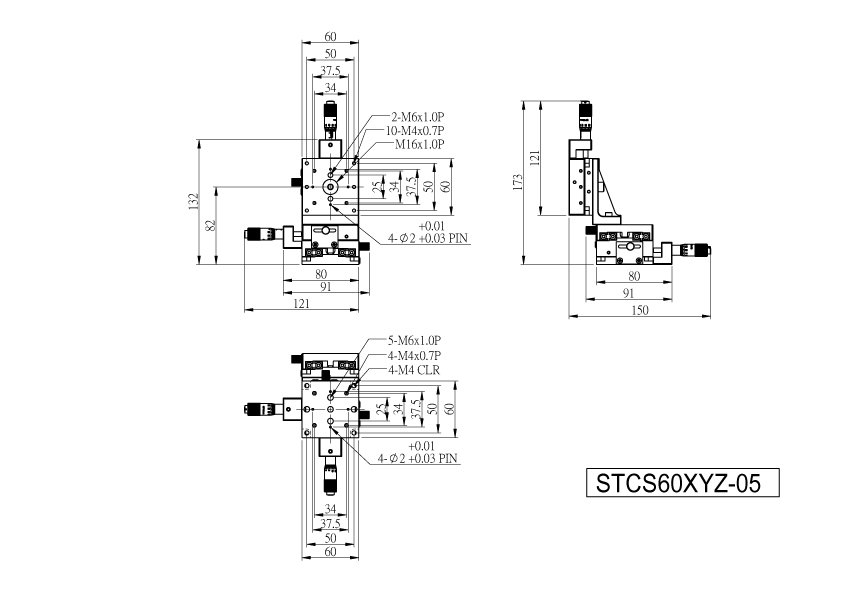

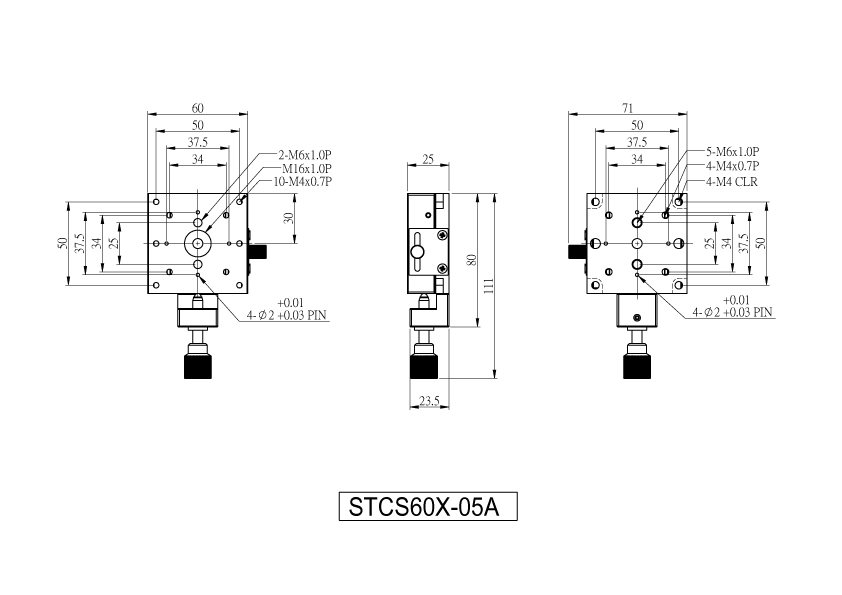

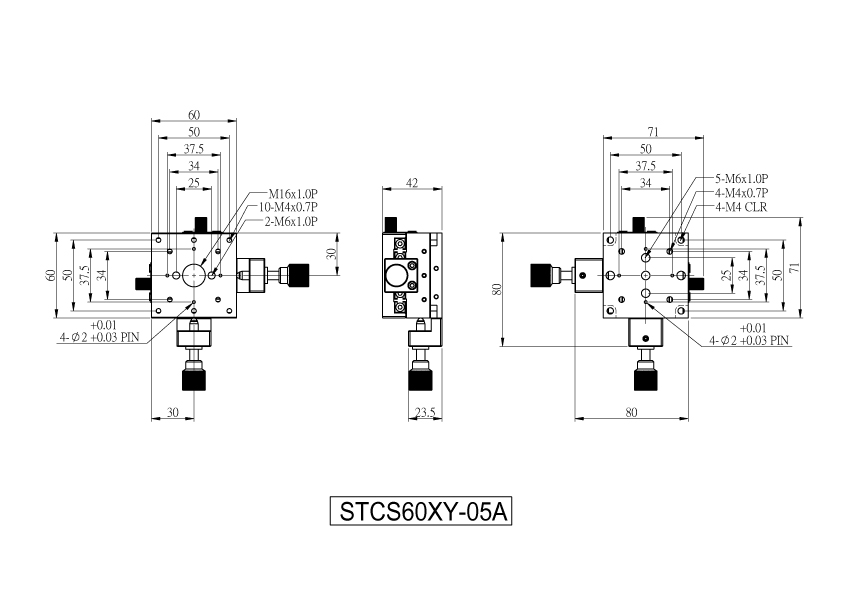

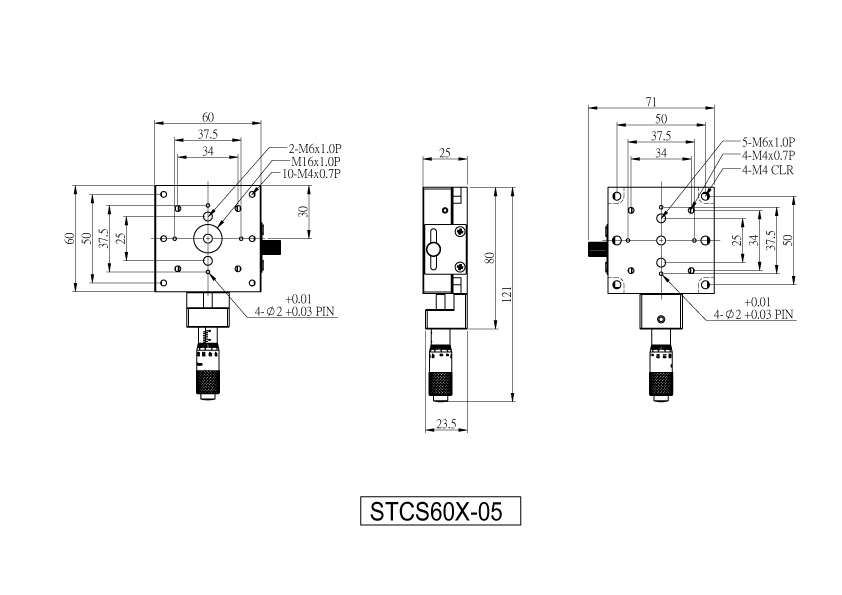

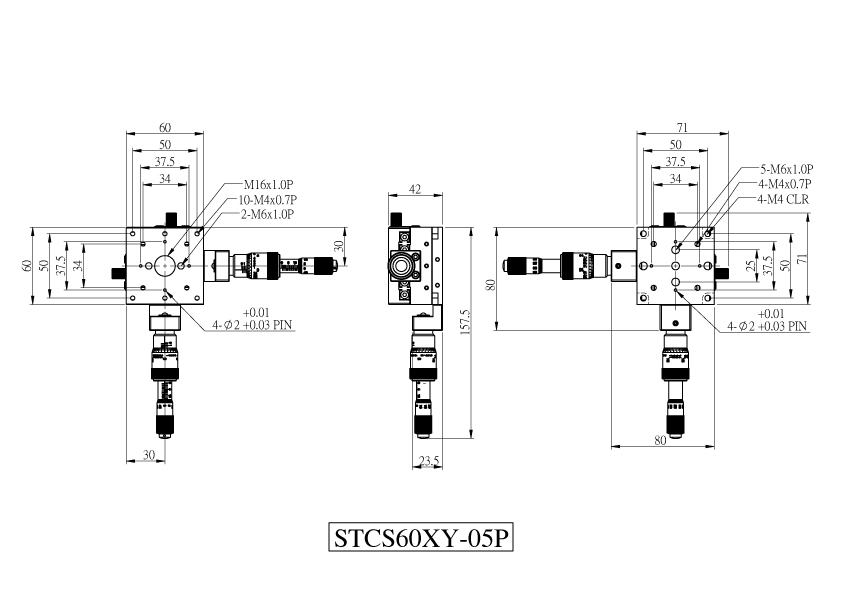

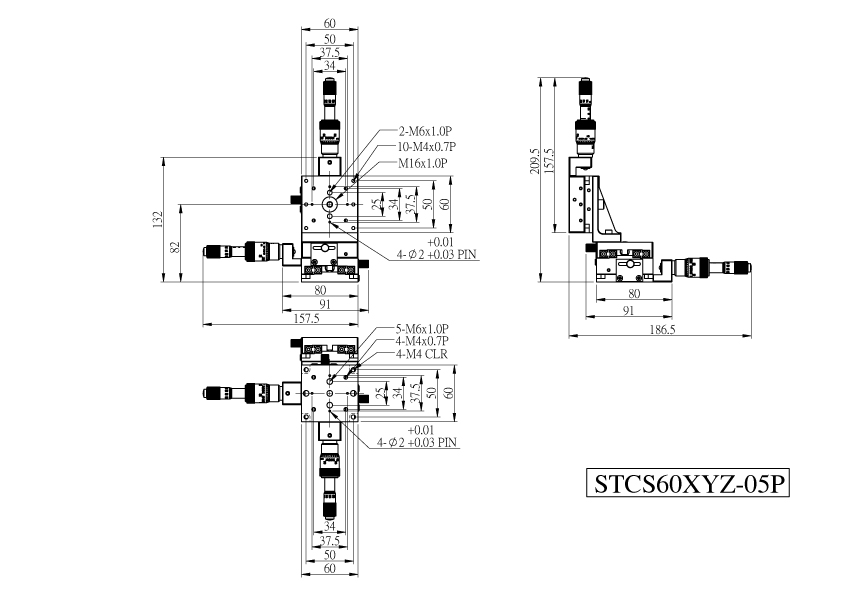

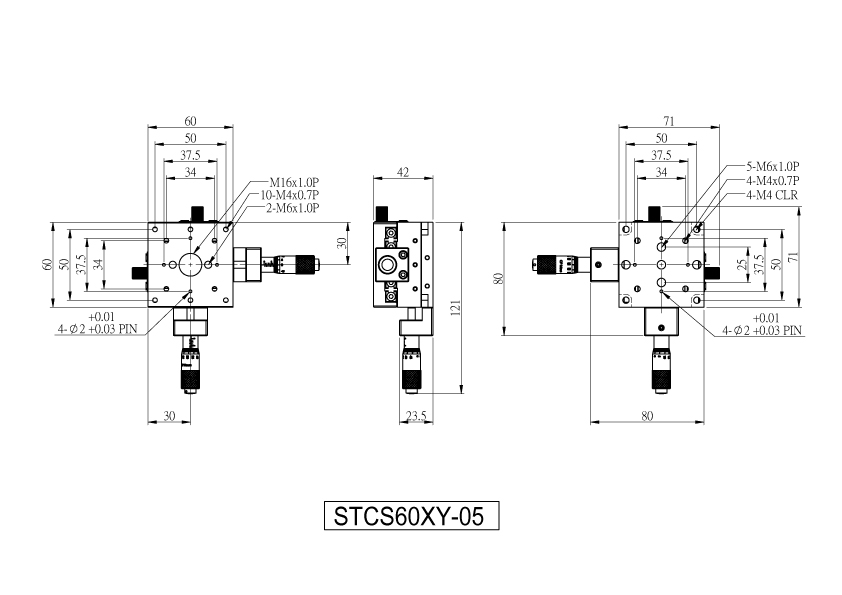

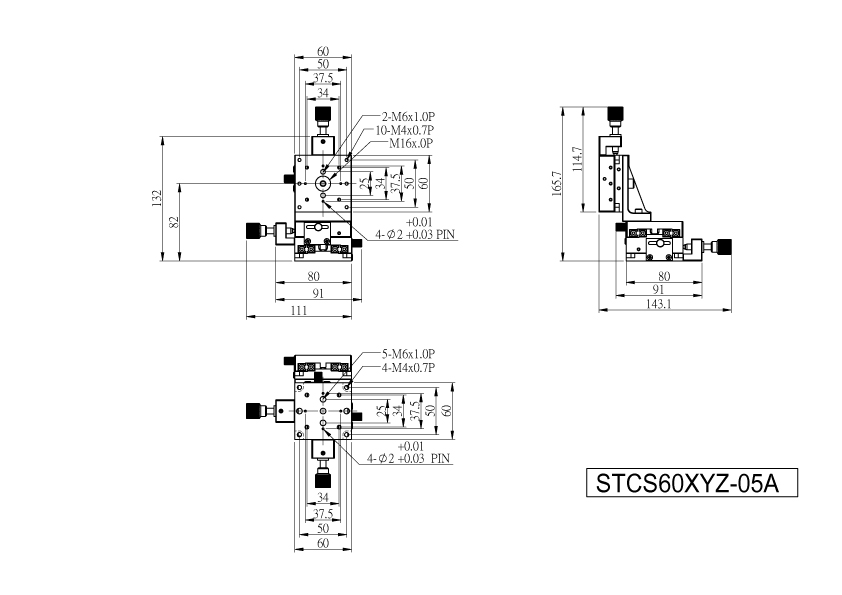

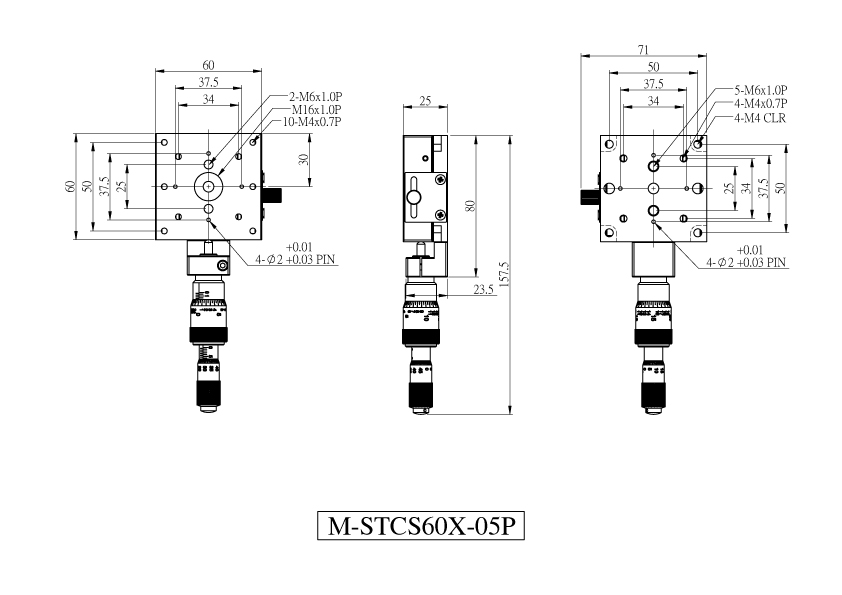

2D-Drawing




STCS60-05-series

• The STCS series platform is designed with a steel cross-roller track, made entirely of robust stainless steel material. It features high rigidity, high load capacity, low friction, and minimal operational noise, making it suitable for high-precision displacement applications. We also offer two drive options: a 10μm micrometer drive and a 100TPI precision screw drive, considering convenience of use.

• The platform dimensions are 60x60mm, with an array of M6x1.0P and M4x0.7P threaded holes on the surface. There is a central threaded hole with M16x1.0P that can be used to assemble most optical components.



Specification
Platform Size Actuators Travel Axis Straightness Axis
60mm x 60mm
Micrometer/
100TPI Screw
±6.5mm ±15um X、XY、XYZ




Part Number/Description Delivery Price Qty. Add to Cart
M-STCS60X-05

60 Stainless Steel Material / 13mm Travel / X-Axis/10μm Micrometer / Center drive

In Stock
US$293.10
M-STCS60X-05A

60 Stainless Steel Material / 13mm Travel / X-Axis/Adjustment Screw(100TPI) / Center drive

In Stock
US$275.86
M-STCS60X-05P

60 Stainless Steel Material / 13mm Travel / X-Axis/5μm Micrometer / Center drive

In Stock
US$862.07
M-STCS60XY-05

60 Stainless Steel Material / 13mm Travel / XY-Axis/10μm Micrometer / Center drive

In Stock
US$586.21
M-STCS60XY-05A

60 Stainless Steel Material / 13mm Travel / XY-Axis/Adjustment Screw(100TPI) / Center drive

In Stock
US$551.72
M-STCS60XY-05P

60 Stainless Steel Material / 13mm Travel / XY-Axis/5μm Micrometer / Center drive

In Stock
US$1758.62
M-STCS60XYZ-05

60 Stainless Steel Material / 13mm Travel / XYZ-Axis/10μm Micrometer / Center drive

In Stock
US$1000.00
M-STCS60XYZ-05A

60 Stainless Steel Material / 13mm Travel / XYZ-Axis/Adjustment Screw(100TPI) / Center drive

In Stock
US$948.28
M-STCS60XYZ-05P

60 Stainless Steel Material / 13mm Travel / XYZ-Axis/5μm Micrometer / Center drive

In Stock
US$2758.62
