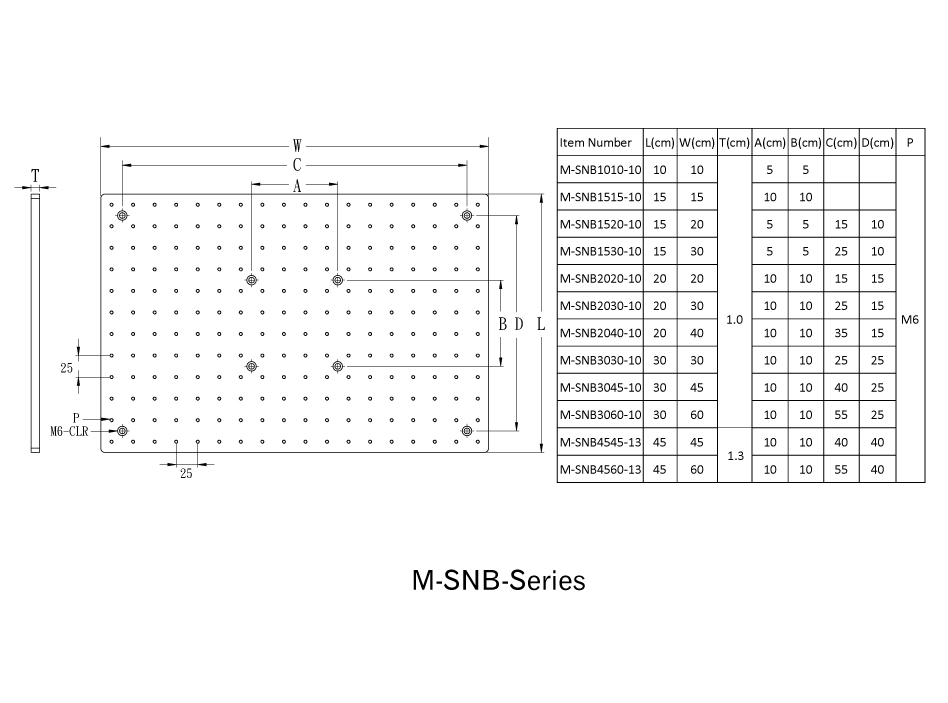

• Made from T6 aluminum alloy and manufactured using vacuum cleaning technology, suitable for vacuum environments. Hole spacing is 25 millimeters or 1 inch, with standard M6 or 1/4x20 thread holes. The array holes are positioned 12.5 millimeters or half an inch from the outer edge, and the polished surface facilitates the installation of various components.



• Each aluminum plate is equipped with 4 to 8 mounting holes, located at the four corners and the center of the breadboard.



• Flatness: 0.1mm/30cm²

• M6 mounting holes

• Surface: Polished surface without anodized coating

• Suitable for general and vacuum environments with pressure lower than 10^-4torr.
