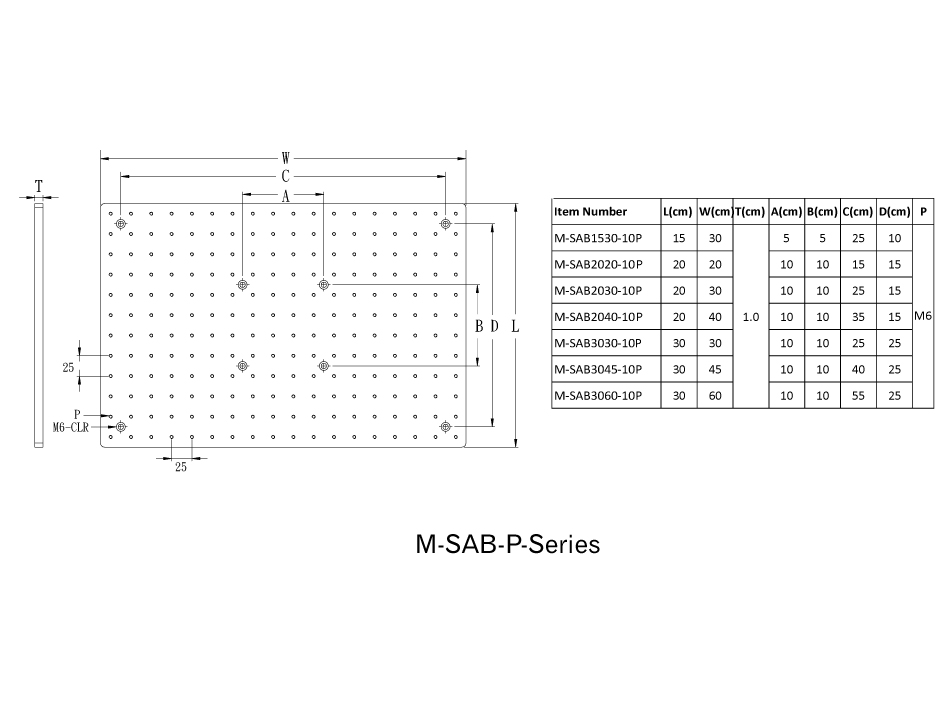

Specification  PartNumber L (cm) W (cm) T (cm)  SAB-1530-10P 15 30 1.0  SAB-2020-10P 20 20 1.0  SAB-2030-10P 20 30 1.0  SAB-2040-10P 20 40 1.0  SAB-3030-10P 30 30 1.0  SAB-3045-10P 30 45 1.0  SAB-3060-10P 30 60 1.0 2D-Drawing Click to enlarge

Polished Black Anodized Aluminum Breadboard

SAB-P-series

• Crafted from T6 series aluminum alloy and treated with black anodization for excellent hardness. Hole spacing is 25 millimeters or 1 inch, with standard M6 or 1/4x20 thread holes. The array holes are positioned 12.5 millimeters or half an inch from the outer edge, and the threaded holes pass completely through the breadboard, enabling optical components to be installed on both sides of the breadboard simultaneously.

• Each aluminum plate is equipped with 4 to 8 mounting holes, located at the four corners and the center of the breadboard, making it the optimal choice for non-vibration applications.

• Solid aluminum plate surface is polished with M6 mounting holes.

• Thickness: 10mm

• Flatness: 0.1mm/30x30cm²

• Surface: Low-reflectance anodized aluminum working surface

• Suitable for general and vacuum environments up to 10^-4torr.
