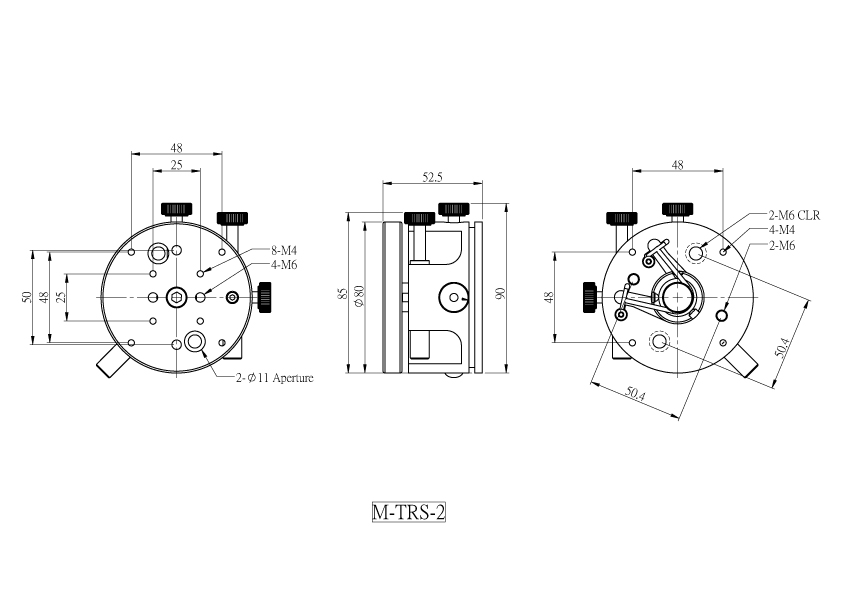

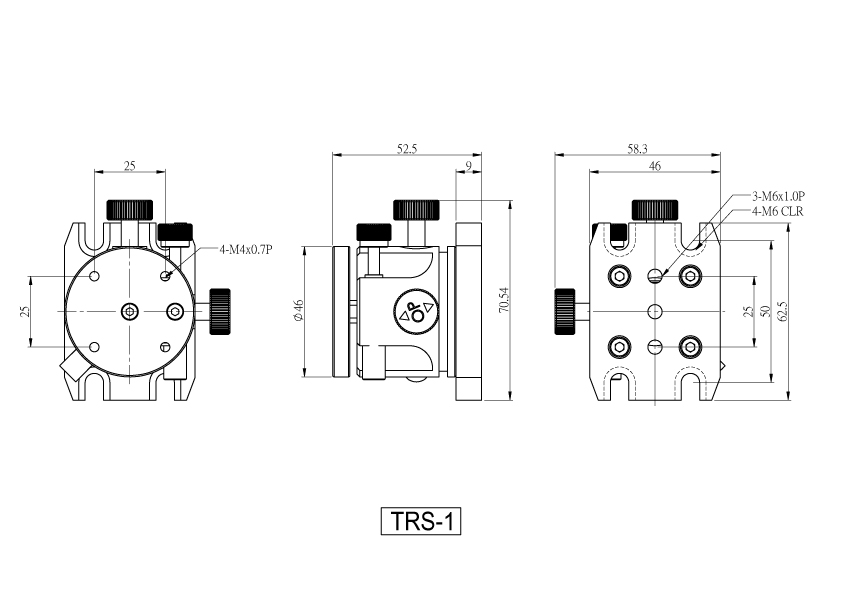

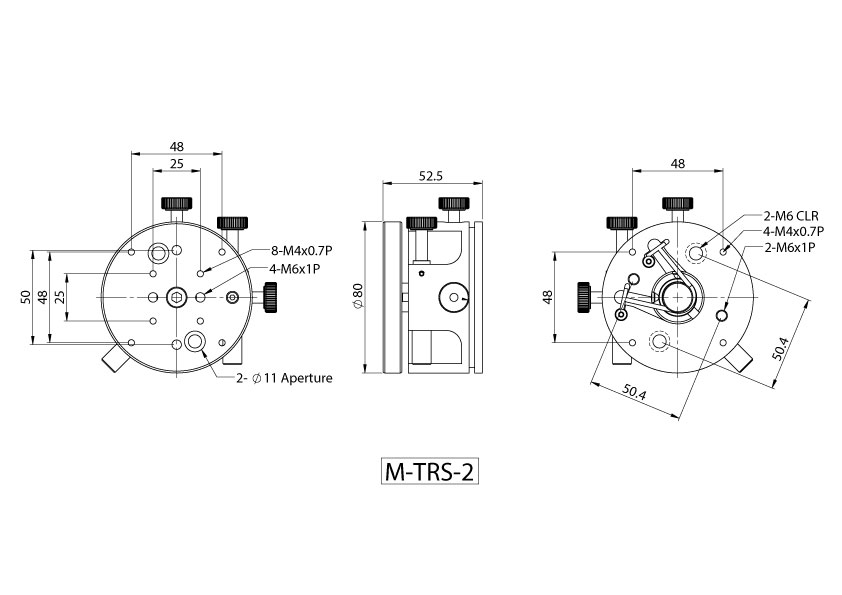

Specification • Platform Size : Φ 46.0mm / Φ 80.0mm • Actuators : 100TPI Screw • θx Travel: 10° • θy Travel : 10° • θz Travel : 6° 2D-Drawing
Click to enlarge Click to enlarge

 Multi-axis Tilt Stages

• The TRS series platform allows for pitch, tilt, and rotation adjustments of +/-5 degrees, enabling alignment of optical components with the optical axis plane. The tabletop has a diameter of Φ46.0mm and features threaded holes for mounting MC-1 or MC-2 clamps or for interconnecting with other optical components. It is equipped with a 100TPI precision screw-driven adjustment.
