M-MRH-160

M-2-MRH-160

M-2-MRH-160

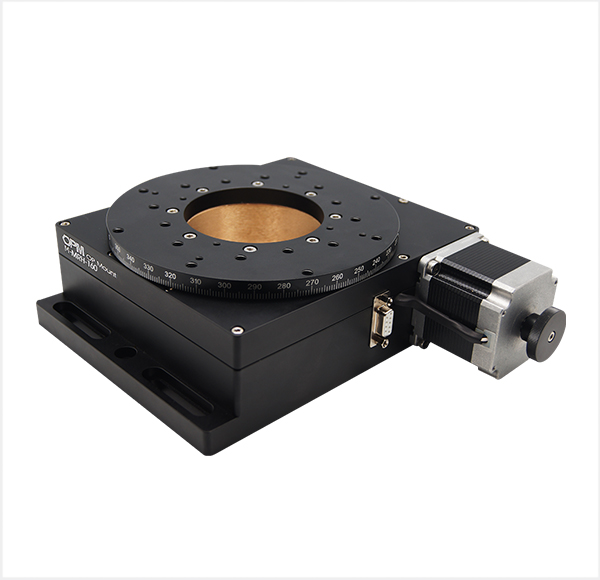

Motorized Rotation Stages with Center Hole
Stage Size :
Ø 160 mm
Aperture :
Ø 76.2 mm
Reduction ratio :
Worm gear(1:180)
Material : Aluminum / Copper
2 Phase Stepping Motor
2D drawing :  3D STEP :

weight : 8KG  Delivery : Inquiry

Price:US$1965.52

Qty:

  Part Number M-2-MRH-160
  Stage Size (mm) Ø160
  Aperture (mm) Ø76.2
  Reduction ratio Worm gear(1:180)
  Material Aluminum / Copper
  Weight 8Kg
  Resolution  (Full)   [°/pulse] 0.01
 (Half)   [°/pulse] 0.005
 (20000)   [°/pulse] 0.0001
  Max Speed  [ ° /sec ] 30
  Positioning Accuracy[ ° ] 0.1
  Positioning Repeatability[ ° ] + /-0.01
  Load Capacity[ N ] 196 ( 20 Kgf )
  Limit  Sensor( - pulse  direction ) Photoelectric Sensor ( NPN ) ; CCW direction stop at near 0 degree ; CW direction to  ∞
  Origin Sensor Photoelectric Sensor  ( NPN )
  Sensor  Volatage DC 5V - DC 24 V
 Current 15mA or less
 Control Output NPN Open Collector Transistor /Output DC 30V , 50mA or less
  Motor  Type 2 - phase stepping motor
 Step Angle 1.8 °

(For use with CTC-2- __ - __ 200 Series Controllers)

9 Pin (Female)
1  Home(output 0V NPN) 6 B+ Motor
2  0V 7 B- Motor
3 None 8 A- Motor
4 None 9 A+ Motor
5 Vcc+
