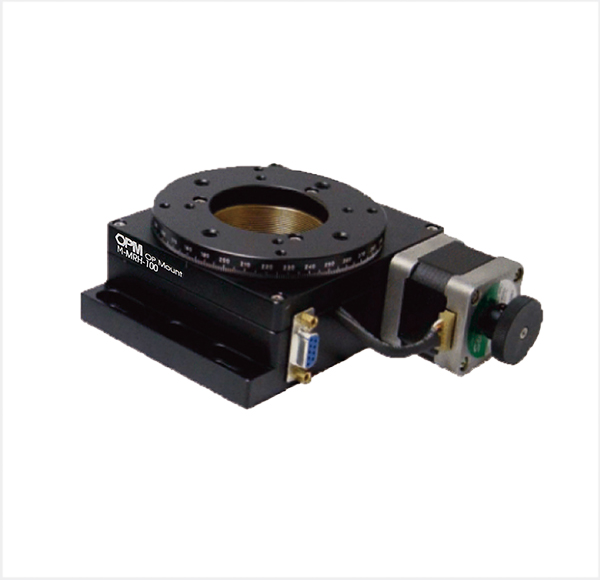

M-2-MRH-100
M-2-MRH-100
| Motorized Rotation Stages with Center Hole |
|
Stage Size :
|
Ø 100 mm | ||
|
Aperture :
|
Ø 50.8 mm | ||
|
Reduction ratio :
|
Worm gear(1:180) | ||
| Material : | Aluminum / Copper | ||
| 2 Phase Stepping Motor | |||
| 2D drawing : |
 |
3D STEP : |
 |
weight : 2.2KG Delivery : Inquiry
Price:US$1362.07
| Part Number | M-2-MRH-100 | |
| Stage Size (mm) | Ø 100 | |
| Aperture (mm) | Ø 50.8 | |
| Reduction ratio | Worm gear(1:180) | |
| Material | Aluminum / Copper | |
| Weight | 2.2Kg | |
| Resolution | (Full) [°/pulse] | 0.01 |
| (Half) [°/pulse] | 0.005 | |
| (20000) [°/pulse] | 0.0001 | |
| Max Speed [ ° /sec ] | 30 | |
| Positioning Accuracy[ ° ] | 0.1 | |
| Positioning Repeatability[ ° ] | + /-0.01 | |
| Load Capacity[ N ] | 98 ( 10 Kgf ) | |
| Limit Sensor( - pulse direction ) | Photoelectric Sensor ( NPN ) ; CCW direction stop at near 0 degree ; CW direction to ∞ | |
| Origin Sensor | Photoelectric Sensor ( NPN ) | |
| Sensor | Volatage | DC 5V - DC 24 V |
| Current | 15mA or less | |
| Control Output | NPN Open Collector Transistor /Output DC 30V , 50mA or less | |
| Motor | Type | 2 - phase stepping motor |
| Step Angle | 1.8 ° | |
(For use with CTC-2- __ - __ 200 Series Controllers)
| 9 Pin (Female) | |||
| 1 | Home(output 0V NPN) | 6 | B+ Motor |
| 2 | 0V | 7 | B- Motor |
| 3 | None | 8 | A- Motor |
| 4 | None | 9 | A+ Motor |
| 5 | Vcc+ | ||
